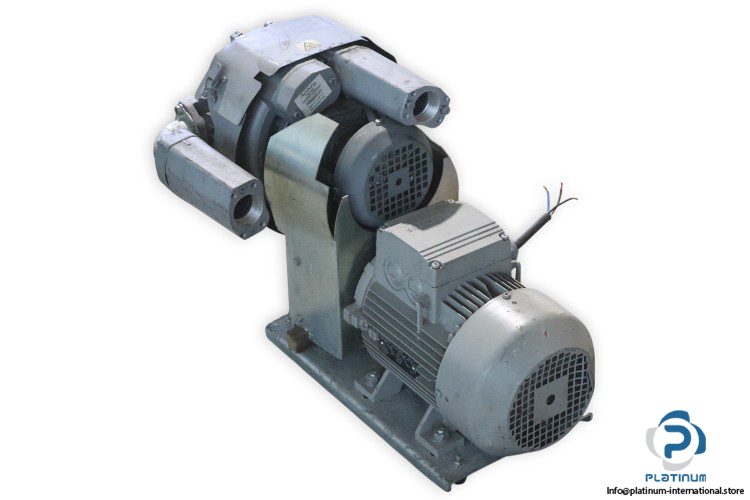

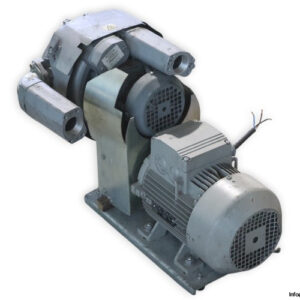

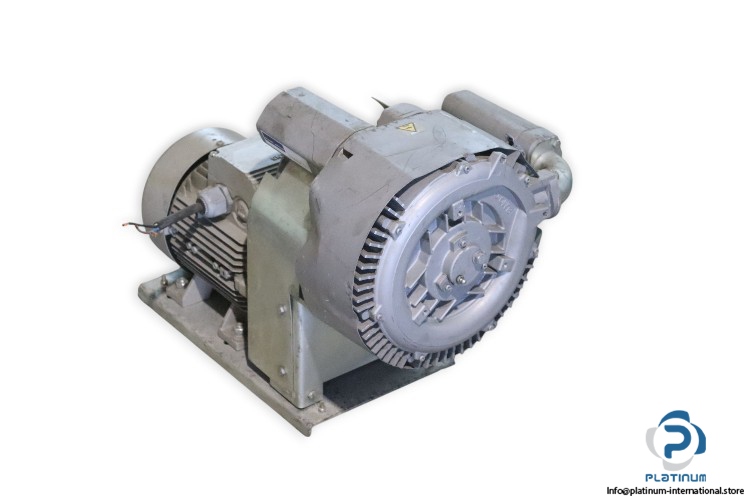

NASH-ELMO ELMO-G 2BH1313-1HY99-ZN01 SIDE CHANNEL BLOWER
The Nash-Elmo ELMO-G 2BH1313-1HY99-ZN01 is a high-performance side channel blower designed for reliable and efficient air movement in demanding industrial applications. Powered by a robust Siemens 1LA7106-2AA10 motor, it delivers consistent airflow, excellent pressure handling, and extended service life with minimal maintenance.
Manufacturer: Nash-Elmo
Type: Side Channel Blower
Model: ELMO-G 2BH1313-1HY99-ZN01
Part No.: E R4 34 4180 05 026 /03
Code: SF 1,1

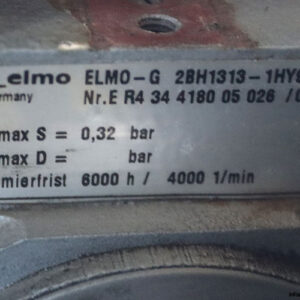

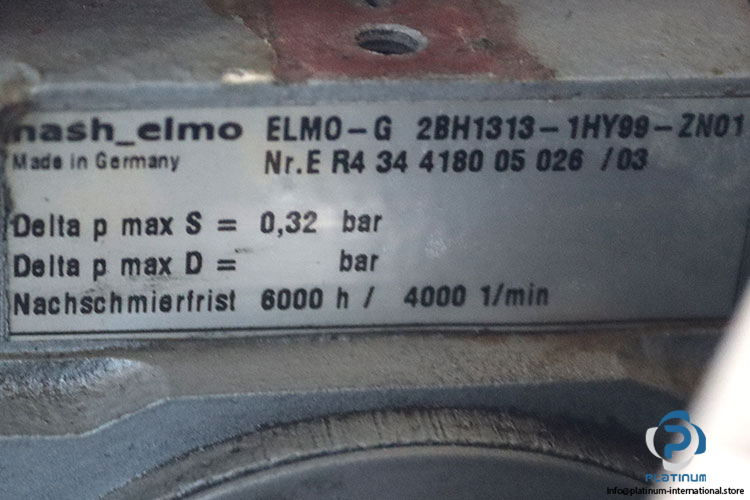

Technical Information
- Delta Pressure Max: 0.32 bar
- Relubrication Period: 6000 h / 4000 1/min
- Attachment: Siemens 1LA7106-2AA10 Motor

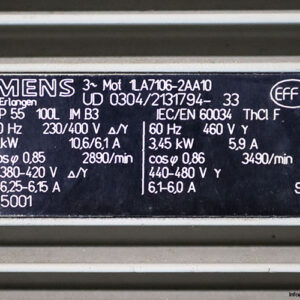

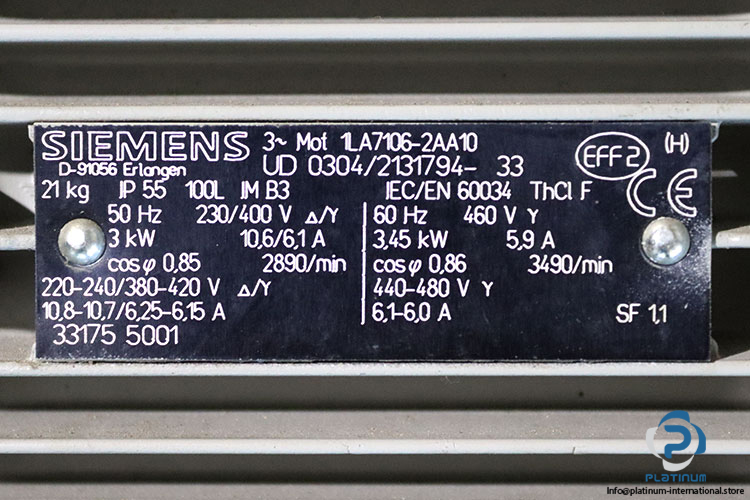

Motor Specifications (Siemens 1LA7106-2AA10)
Manufacturer: Siemens
Type: Motor
Model: 1LA7106-2AA10
Part No.: UD 0304/2131794-33
Code: 33175 5001
@ 50 Hz
- Voltage: 230/400 V
- Current: 10.6/6.1 A
- Power: 3 kW
- Speed: 2890 rpm
- Power Factor: cos 0.85
- Rated Voltage: 220 to 240 / 380 to 420 V
- Rated Current: 10.8 to 10.7 / 6.25 to 6.15 A
@ 60 Hz
- Voltage: 460 V
- Power: 3.45 kW
- Current: 5.9 A
- Speed: 3490 rpm
- Power Factor: cos 0.86
- Rated Voltage: 440 to 480 V
- Rated Current: 6.1 to 6 A
