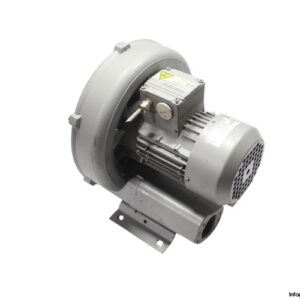

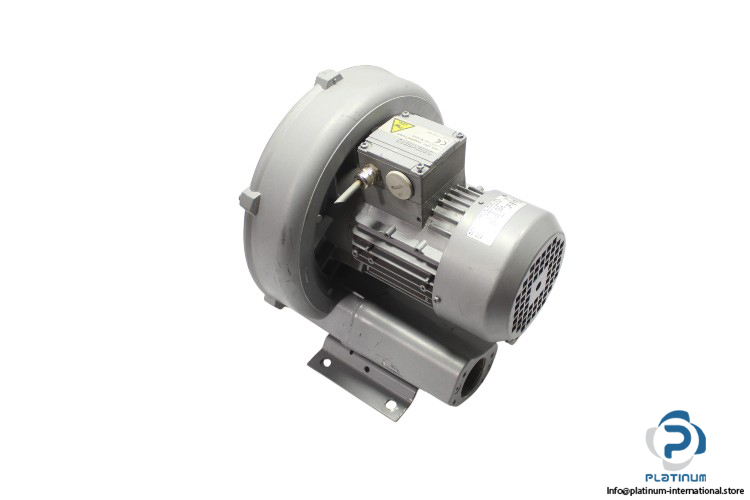

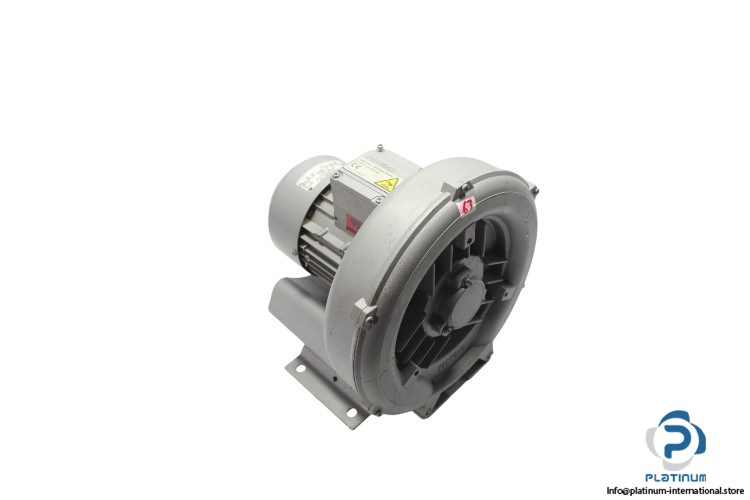

Nash Elmo (Siemens) Single Side Channel Blower G200 2BH1400-7AH06

The Nash Elmo Single Side Channel Blower G200 2BH1400-7AH06 is engineered for reliable and efficient air movement in industrial systems. It offers both 50 Hz and 60 Hz operation options, providing flexibility for different power and pressure requirements.

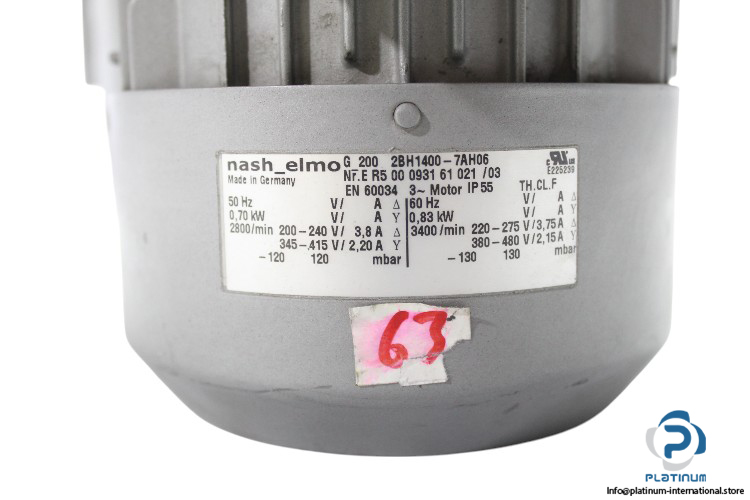

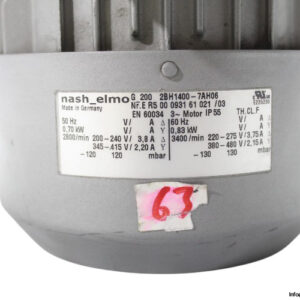

Manufacturer: Nash Elmo (Siemens)

Model: G200 2BH1400-7AH06

Type: Single Side Channel Blower

Part No.: E R500093161021/03

At 50 Hz:

• Rated Voltage: 200 to 240/ 345 to 415 V
• Rated Speed: 2800 RPM
• Pressure: 120 mbar
• Vacuum: -120 mbar
• Rated Power: 0.70 KW
• Rated Current: 3.8 / 2.20 A

At 60 Hz:

• Rated Voltage: 220 to 275/ 380 to 480 V
• Rated Speed: 3400 RPM
• Pressure: 130 mbar
• Vacuum: -130 mbar
• Rated Power: 0.83 KW
• Rated Current: 2.15 / 3.75 A

Additional Information:

• Insulation Class: F
• Protection Class: IP55
