Manufacturer: NBR
Type: Pillow Block Ball Bearing Unit
Model: UCP209

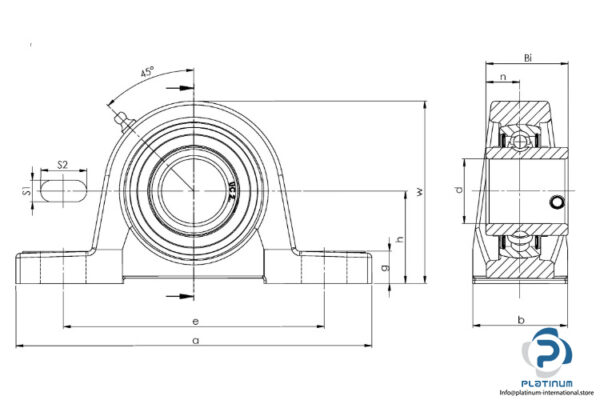

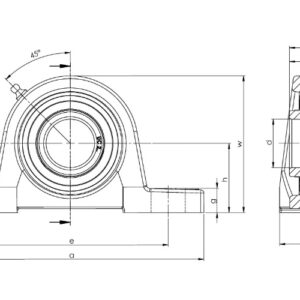

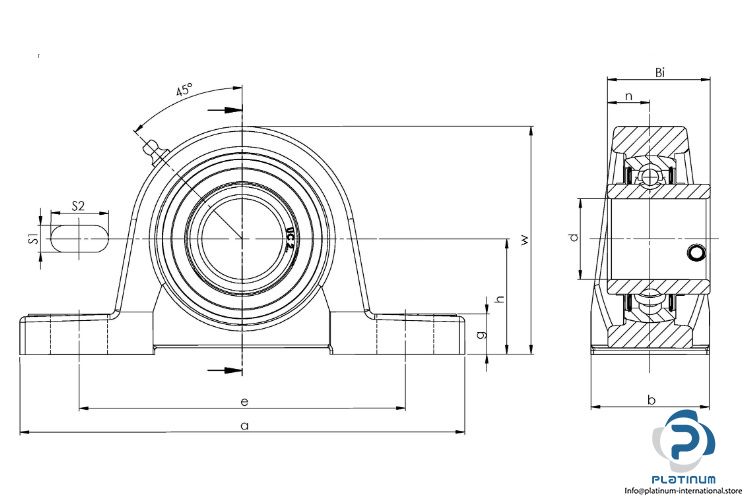

Dimensions
Bore Diameter d: 45 mm
Overall length a: 190 mm
Overall height w: 106 mm
Width of Inner Ring Bi: 49.2 mm
Height of spherical seat center b: 54 mm
Distance Between Attachment Bolts e: 146 mm
Diameter of attachment bolt hole S1: 17 mm
Length of attachment bolt hole S2: 20 mm
Foot height g: 20 mm
Basic Load Rating:
Dynamic Cr: 31600 N
Static C0r: 20600 N
