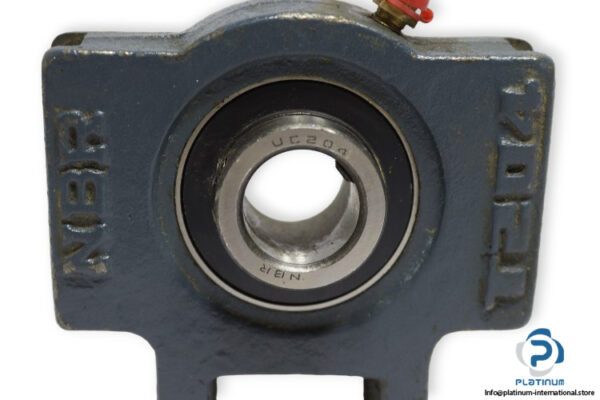

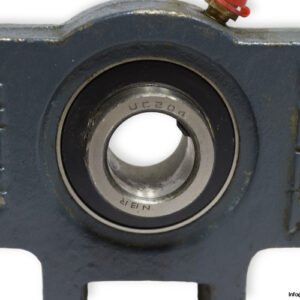

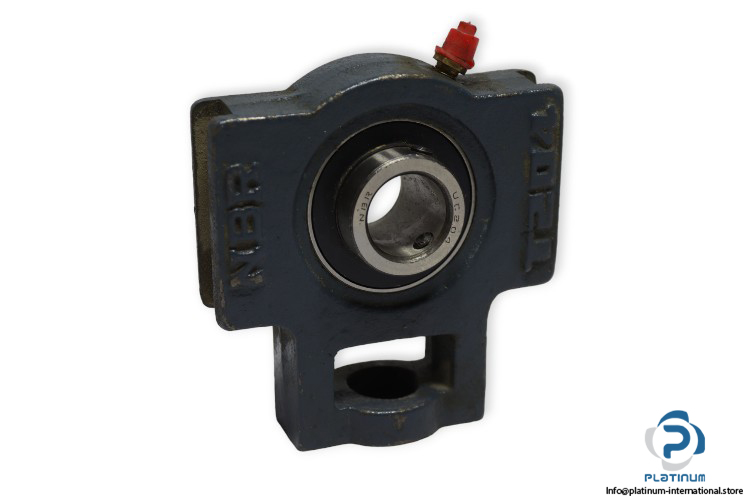

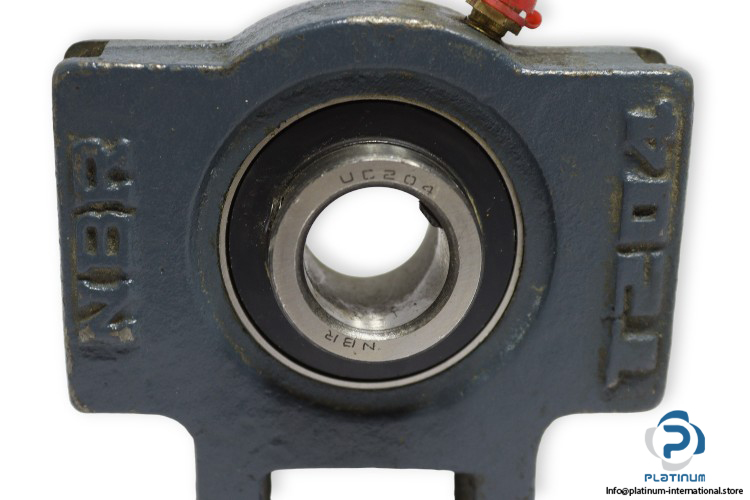

Manufacturer: NBR
Type: take up ball bearing unit
Model: UCT204
Housing No.: T204
Bearing No.: UC204

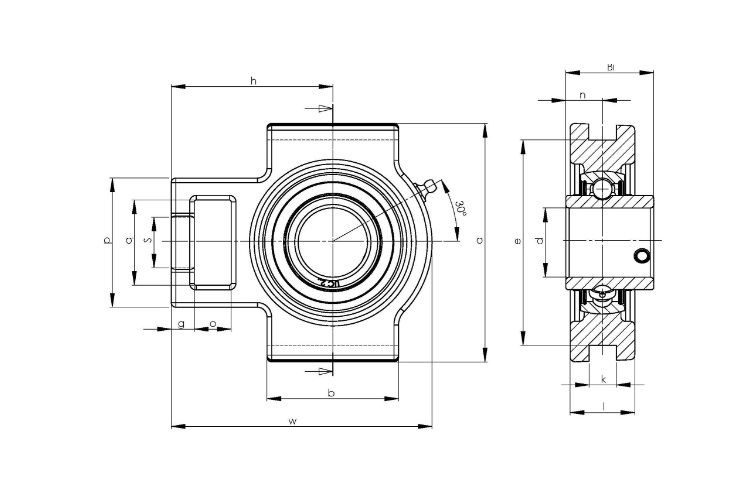

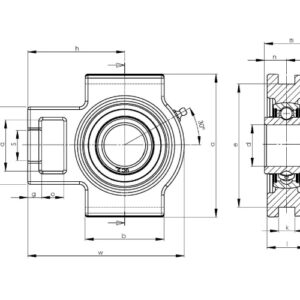

Shaft diameter d: 20 mm
Distance between bottoms of piloting grooves e: 76 mm
Width of inner ring Bi: 31 mm
Distance from attachment end face to centre line of spherical seat diameter h: 61 mm
Width of piloting groove k: 12 mm
Length of piloting groove b: 51 mm
Overall height a: 89 mm
Height of attachment end p: 51 mm
Overall length w: 94 mm
Diameter of attachment bolt hole s: 19 mm
Length of attachment slot o: 16 mm
Height of attachment slot q: 32 mm
Basic Load Rating:
Dynamic: 12.8 kN
Static: 6.65 kN
Housing type: Take-up
