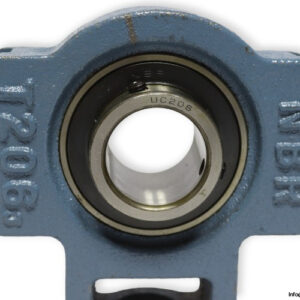

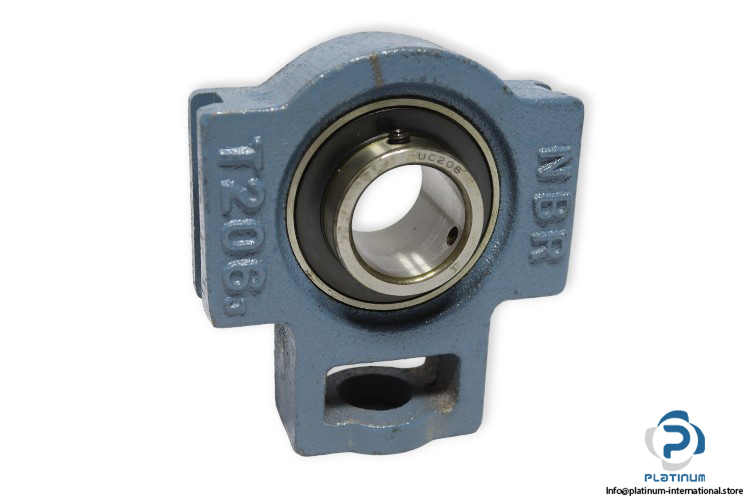

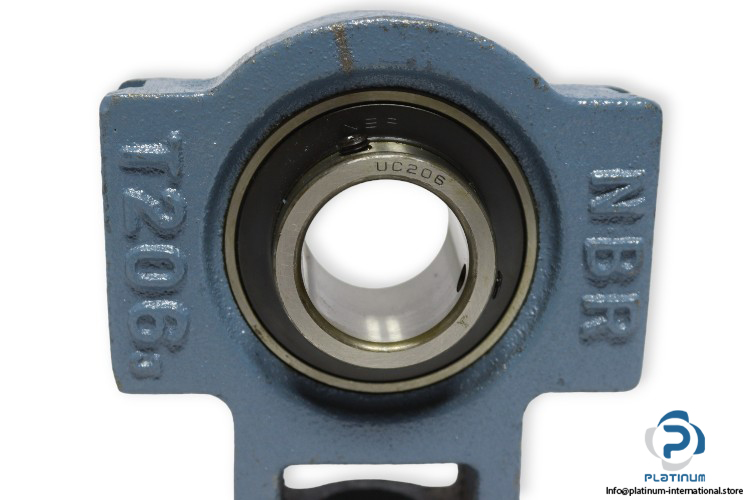

Manufacturer: NBR
Type: take up ball bearing unit
Model: UCT206 J
Housing No.: T206J
Bearing No.: UC206

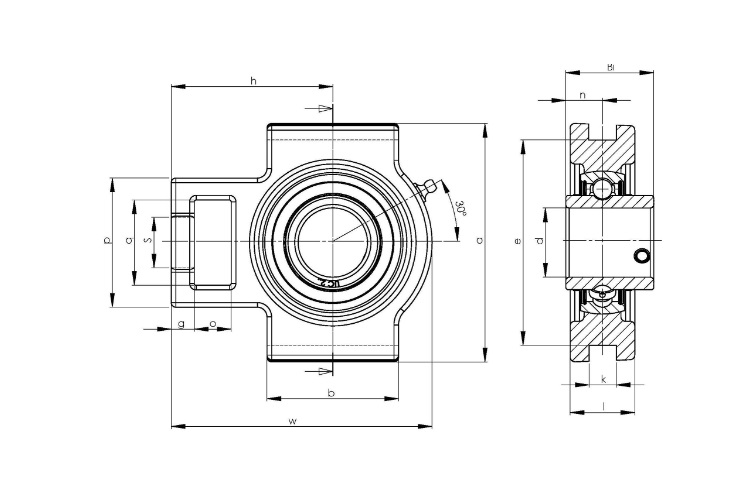

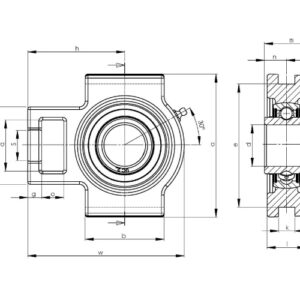

Shaft diameter d: 30 mm
Distance between bottoms of piloting grooves e: 89 mm
Width of inner ring Bi: 38.1 mm
Distance from attachment end face to centre line of spherical seat diameter h: 70 mm
Width of piloting groove k: 12 mm
Length of piloting groove b: 57 mm
Overall height a: 102 mm
Height of attachment end p: 56 mm
Overall length w: 113 mm
Diameter of attachment bolt hole s: 22 mm
Length of attachment slot o: 16 mm
Height of attachment slot q: 37 mm
Basic Load Rating:
Dynamic: 19.5 kN
Static: 11.3 kN
Housing type: Take-up
