Manufacturer: NBS
Type: LINEAR BEARING UNIT
Model: SC25UU

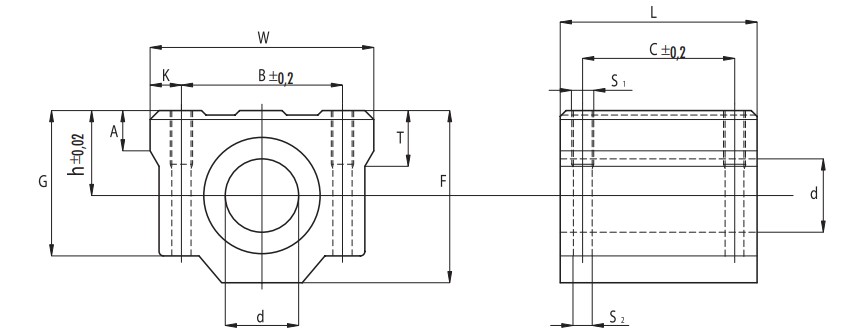

Bore diameter: 25 mm
L: 67 mm
W: 76 mm
h: 26 mm
A: 11 mm
B: 54 mm
C: 50 mm
F: 51.5 mm
K: 11 mm
G: 42 mm
E: 11 mm
Load capacity rating:
Dynamic: 1000 N
Static: 1600 N
Sealing: UU, seals on both sides
