Ball Screw (Cylindrical Ball Nut) (Model: 20-20 R)
Manufacturer: Neff
Type: Ball Screw (Cylindrical Ball Nut)
Model: 20-20 R

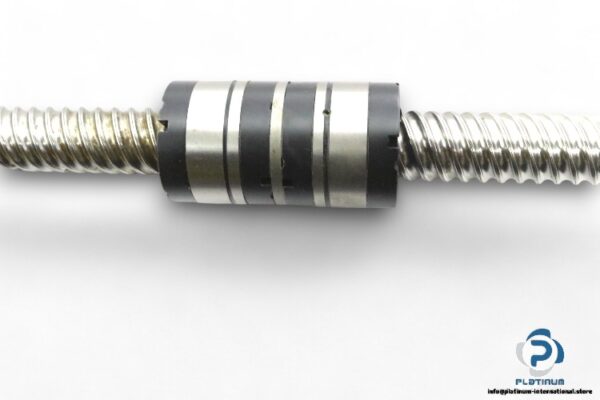

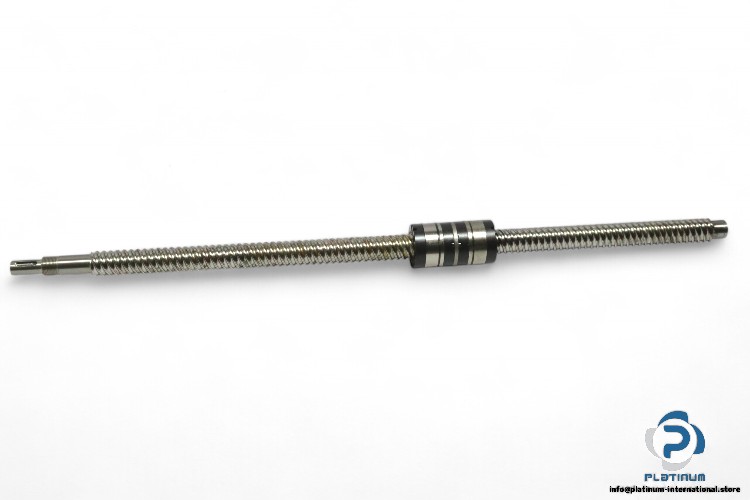

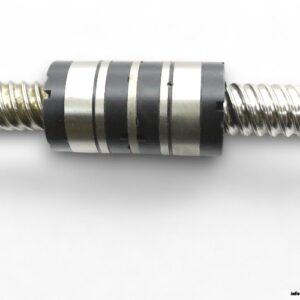

The Neff Ball Screw (Model: 20-20 R) is designed for precise motion control in mechanical systems. This cylindrical ball nut is ideal for high-performance applications requiring smooth linear movement, long service life, and minimal backlash.
- Manufacturer: Neff
- Type: Ball Screw (Cylindrical Ball Nut)
- Model: 20-20 R
- Size: 20 x 20 R
- Nominal Diameter (dN): 20 mm
- Lead (P): 20 mm
- Number of Starts: 4
- Direction of Lead: Right-Hand Thread
- Threaded Length: 485 mm
- Total Screw Length: 560 mm
