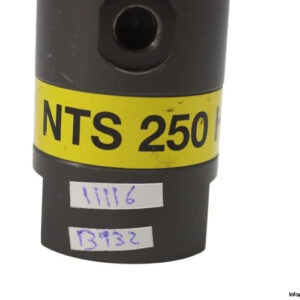

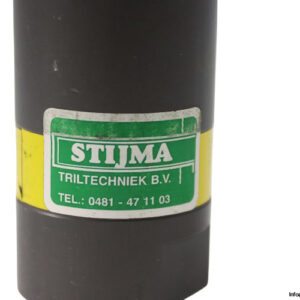

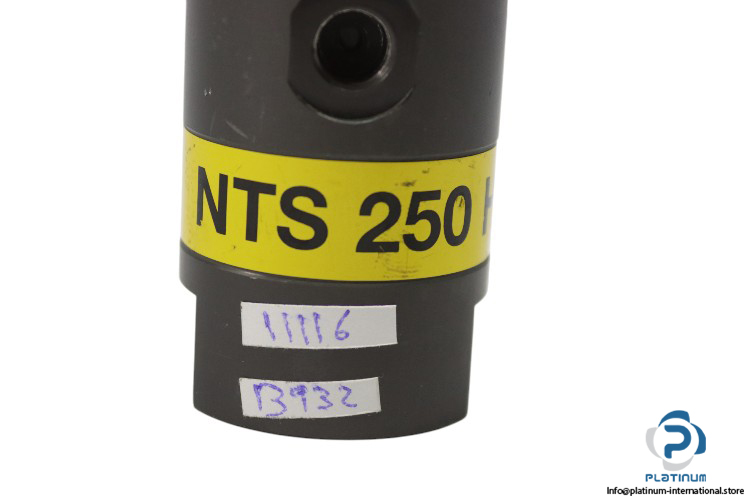

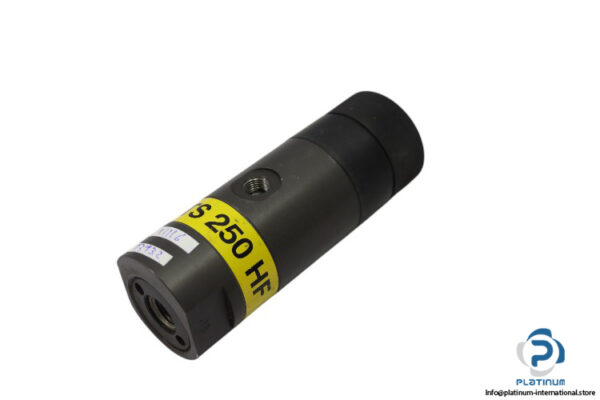

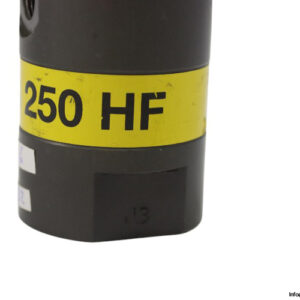

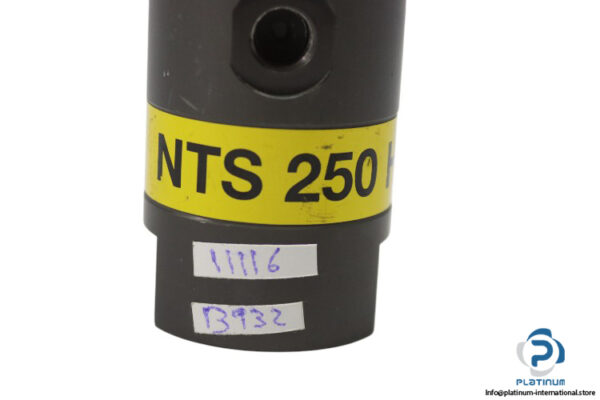

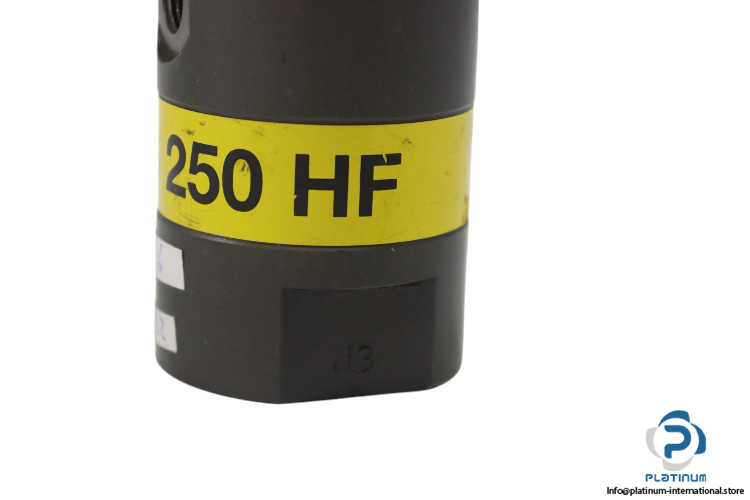

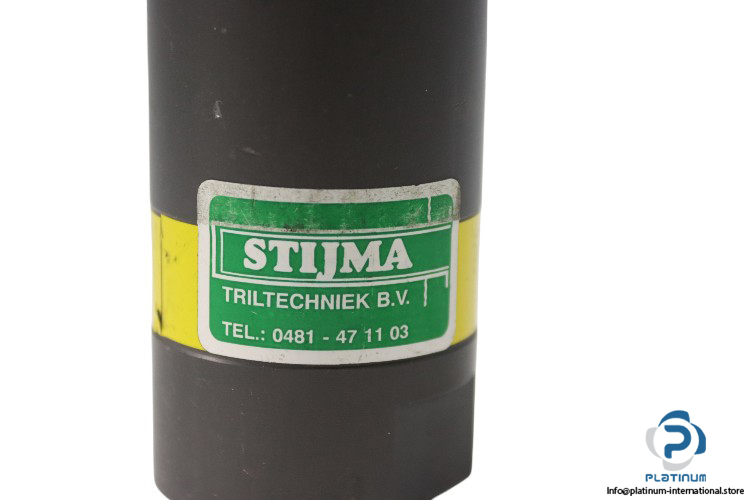

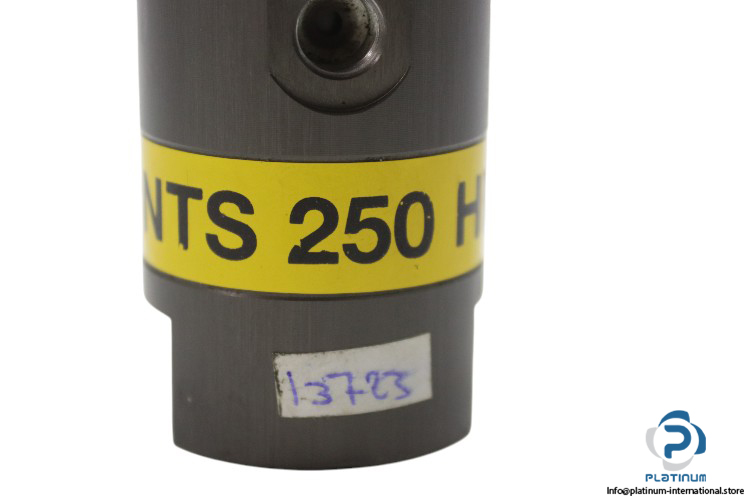

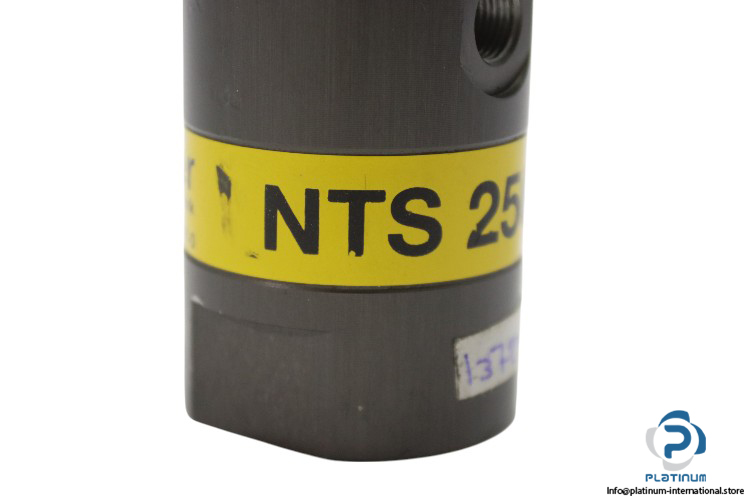

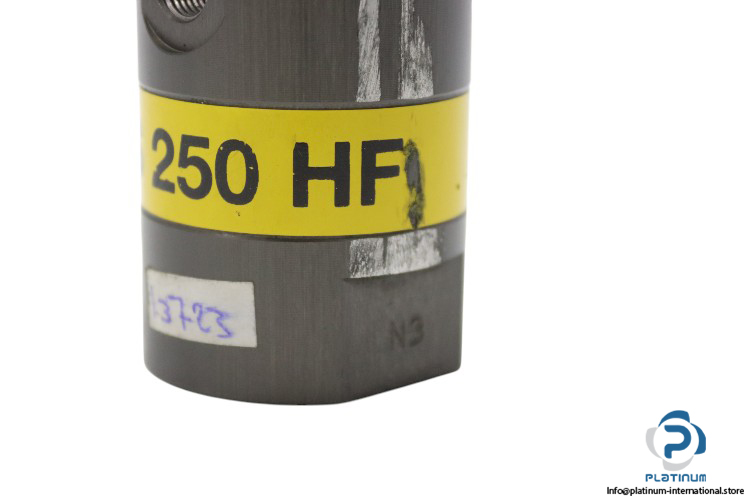

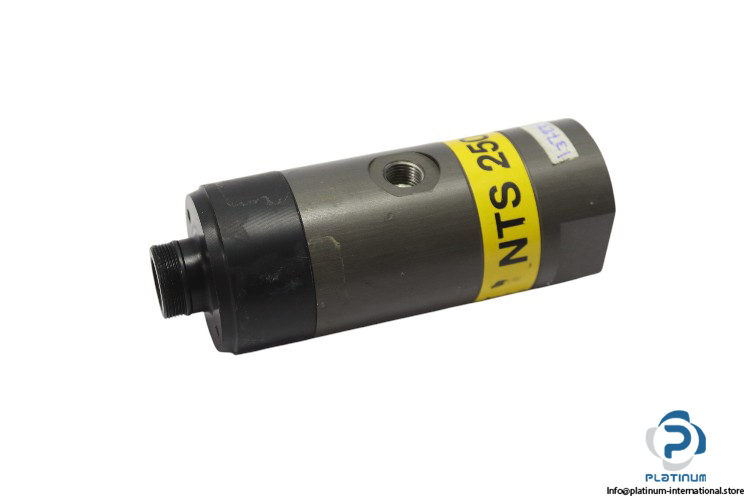

NETTER VIBRATION STIJMA NTS 250 HF Pneumatic Linear Vibrator

The NETTER VIBRATION STIJMA NTS 250 HF is a high-performance pneumatic linear vibrator designed for industrial applications requiring efficient material flow, compaction, and vibration processes. With a durable aluminum construction and optimized energy consumption, it ensures reliable operation under varying pressure conditions.

• Manufacturer: NETTER VIBRATION STIJMA
• Type: Pneumatic Linear Vibrator
• Model: NTS 250 HF

Technical Information

• Pressure Max.: 2 / 6 bar
• Nominal Frequency: 3,654 / 3,773 min»¹
• Centrifugal Force: 111 / 364 N
• Unbalance: 0.152 / 0.190 cm/kg
• Air Consumption: 21 / 105 l/min
• Sound Level: 68 / 74 dB (A)
• Material: AL
• Port Size: G 1/8 & G 1/4
• Length, Diameter: 98 mm, 41.5 mm
