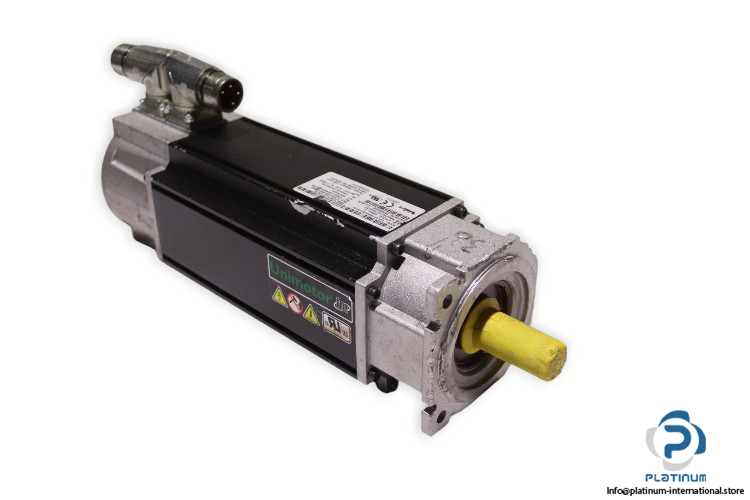

NIDEC 095U3C300BAAEA100190 SERVO MOTOR

The NIDEC 095U3C300BAAEA100190 Servo Motor is a high-performance motor designed for precision control and efficient operation in industrial applications. With a rated power of 1.76 kW and rated torque of 5.6 Nm, it offers reliable performance at a rated speed of 3000 rpm. This motor is built for long-lasting operation with features like IP65 protection and insulation class F, making it suitable for a wide range of environments.

Manufacturer: NIDEC

Type: SERVO MOTOR

Model: 095U3C300BAAEA100190

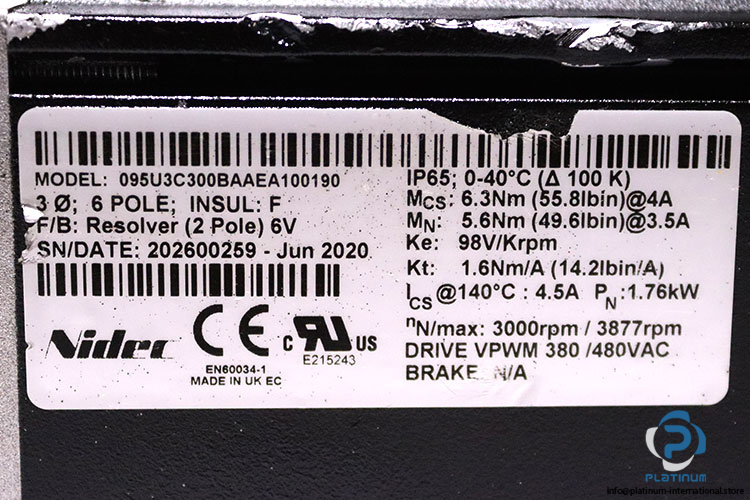

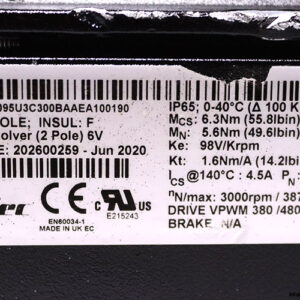

Technical Specifications

• Rated Voltage: 380/480 V
• Rated Power: 1.76 kW
• Rated Torque: 5.6 Nm
• Stall Torque: 6.3 Nm
• Stall Current: 4.5 A
• Rated Speed: 3000 rpm
• Max. Speed: 3877 rpm
• Constant Voltage: 98 V/Krpm
• Constant Torque: 1.6 Nm/A
• Temperature: 0 / 40 °C
• Poles: 6
• Insulation Class: F
• Protection Class: IP65
