NIKO LME30 UU AS LINEAR BALL BEARING

Linear Ball Bearing

The Niko LME30 UU AS Linear Ball Bearing features a 30 mm diameter, 1570 N dynamic load capacity, and 6 ball tracks, offering smooth and reliable linear motion with resin retainer seals for enhanced protection.

SKU: 1058193 Category: Tags: , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

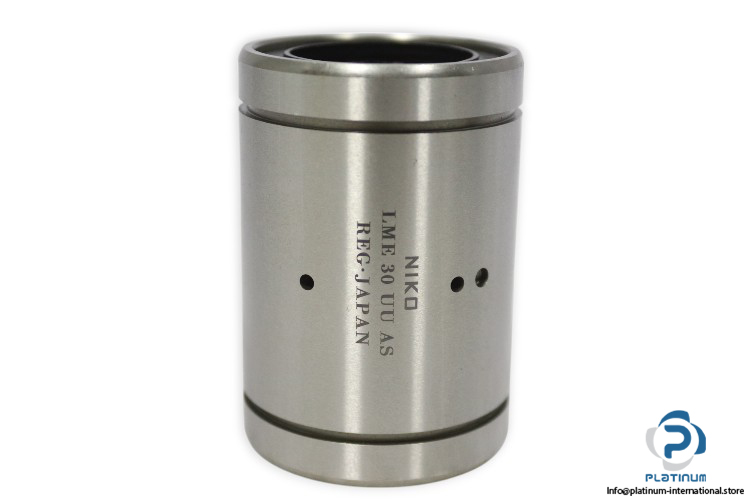

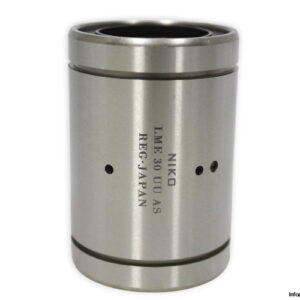

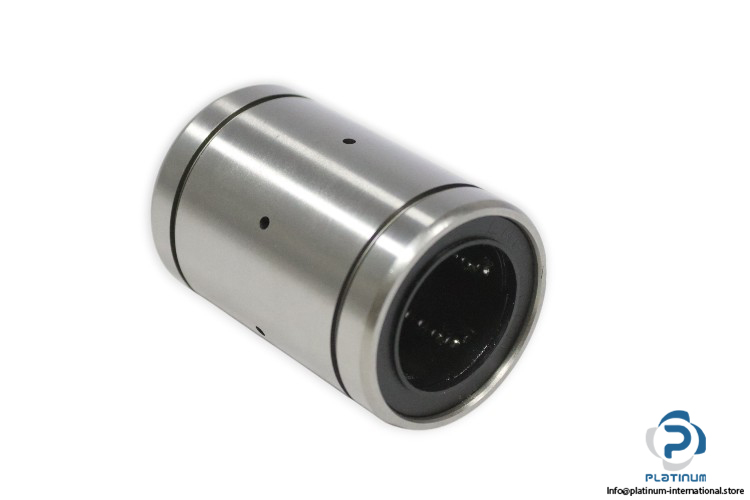

Niko LME30 UU AS Linear Ball Bearing

The Niko LME30 UU AS Linear Ball Bearing is designed for high precision and durability in linear motion applications. With six ball tracks and robust sealing, this bearing is ideal for systems requiring smooth, high-performance motion under varying load conditions.

Manufacturer: Niko

Type: LINEAR BALL BEARING

Model: LME30 UU AS

Technical Information:

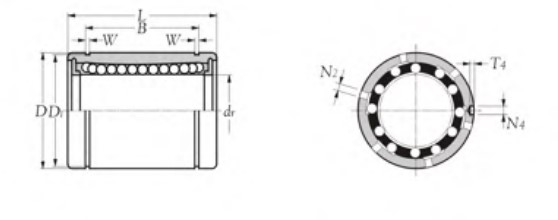

  • Boundary Dimensions:
  • dr: 30 mm
  • D: 47 mm
  • L: 68 mm
  • Principal Dimensions:
  • W: 1.85 mm
  • B: 52.1 mm
  • D1: 44.5 mm
  • Number of Ball Tracks: 6
  • Roundness: 15 mm

Load Ratings:

  • Dynamic Load: 1570 N
  • Static Load: 2740 N

Sealing:

  • Sealing Type: UU, seals resin retainer

This Niko linear ball bearing ensures smooth operation with a high dynamic and static load capacity, featuring seals to enhance protection against contaminants, making it ideal for industrial machinery with long-lasting precision and reliability.

Weight0,32 kg
