Manufacturer: PLOWMATE – NORBRO

Type: DOUBLE ACTING PNEUMATIC ACTUATOR

Series: 40R

Model: 10 – RDB40

MRN: 10 – RDB40 – 1SD1E0

Materials

  Body: Aluminium (extrusion) anodised

  Bearings: Acetal

  O-Rings: Nitrile Rubber

  Position Indicator: Polyethylene

Actuator Size: 10

No. Of Springs: 10 Springs

Spring Torque (Start to End): 19.8 – 11.8 Nm

Max. Pressure: 8.2 bar

Design: Rack and Pinion

End Cap Option: Switch Tappings

Media: Air or non-corrosive fluid

Output Torque: 10-64 Nm

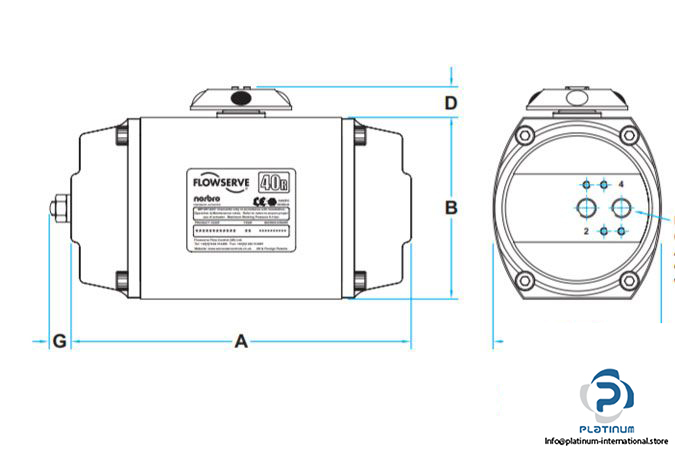

Dimensions:

 Length ( A ): 155 mm

 Width ( C ): 77 mm

 Height ( B ): 86 mm

Temperature: -18 … 100 °C
