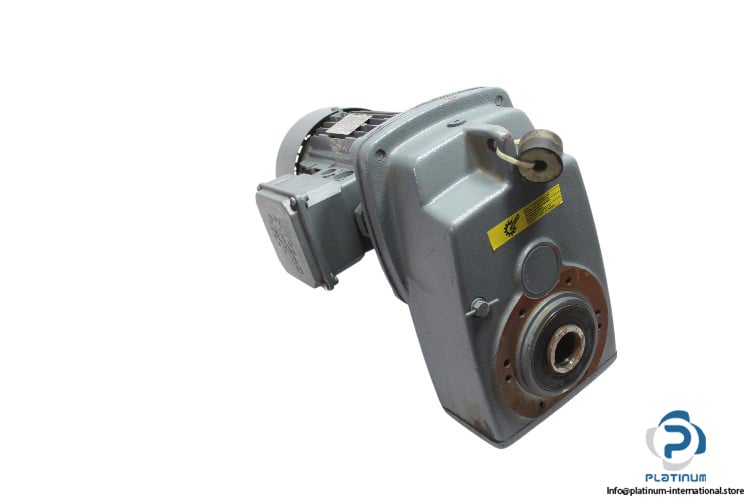

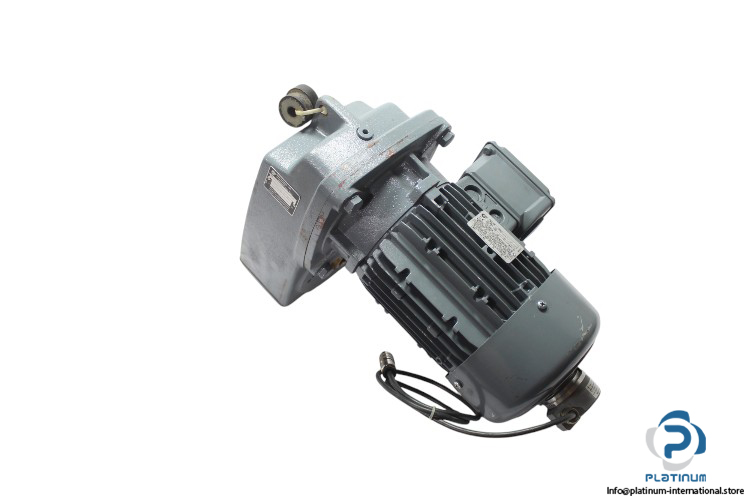

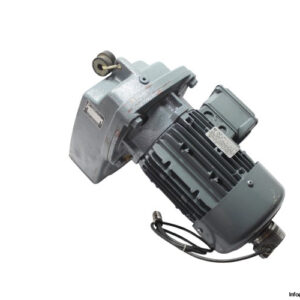

Nord SK 90L/4 TF WE IG1 Gear Motor
The Nord SK 90L/4 TF WE IG1 Gear Motor is designed for reliable and efficient performance in a variety of industrial applications. With versatile voltage and current ratings, it offers flexibility for different operating environments.
Manufacturer: Nord
Model: SK 90L/4 TF WE IG1
Type: Gear Motor
Part No.: N1 44712896/0517

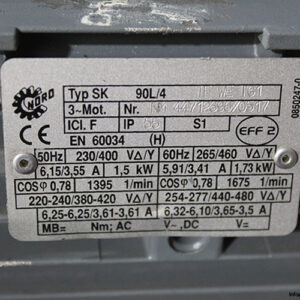

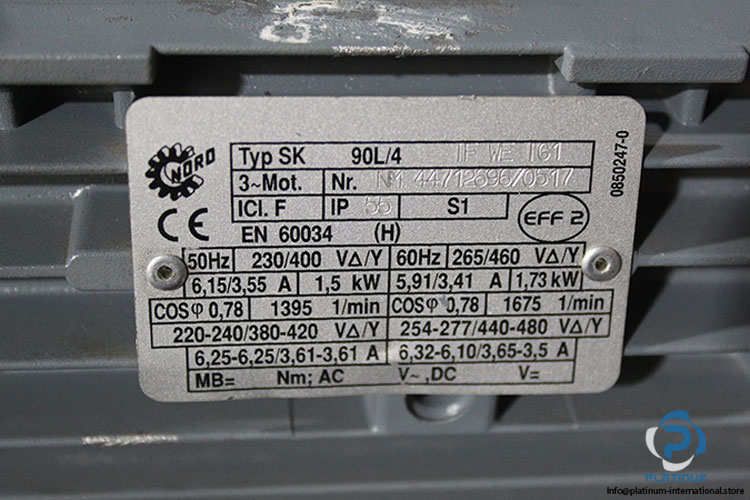

Technical Information:
- Rated Voltage at 50Hz [V]: 230/400, 220 to 240 / 380 to 420
- Rated Current [A]: 6.15/3.55, 6.25 to 6.25/3.61 to 3.61
- Power [kW]: 1.5
- Speed [rpm]: 1395
- Power Factor (cos): 0.78
- Rated Voltage at 60Hz [V]: 265/460, 254 to 277/440 to 480
- Rated Current [A]: 5.91/3.41, 6.32 to 6.10/3.65 to 3.5
- Rated Power [kW]: 1.73
- Rated Speed [rpm]: 1675
- Power Factor (cos): 0.78
- IP Rate: IP55
- Thermal Class: F
- Duty: S1

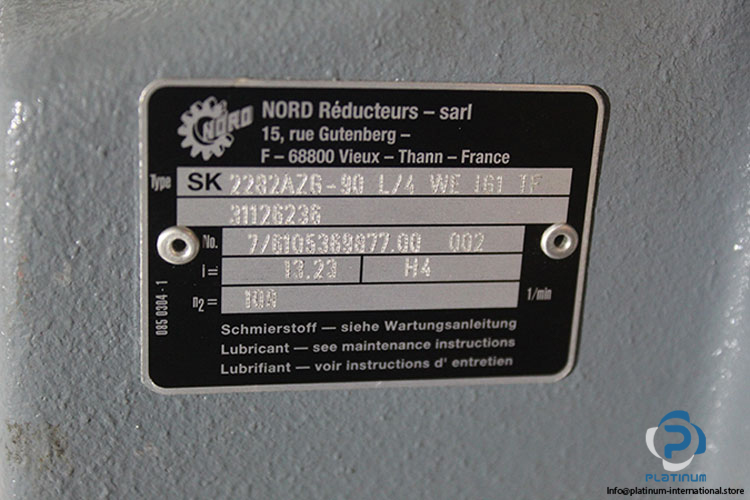

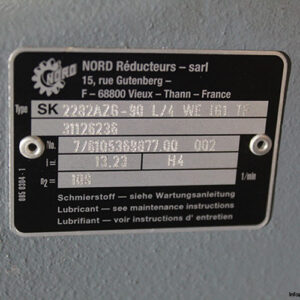

Attachment 1: NORD SK 2282AZ6-90 L/4 WE IG TF 31126236 GEAR
Manufacturer: Nord
Model: SK 2282AZ6-90 L/4 WE IG1 TF 31126236
Part No.: 7/6105369877.00 002
- Ratio: 13.23
- Speed: 100 rpm

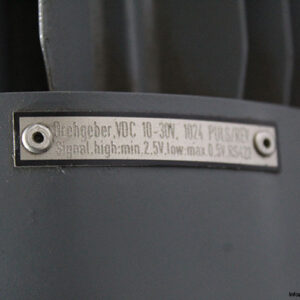

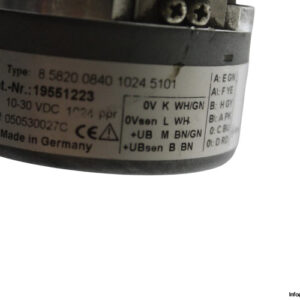

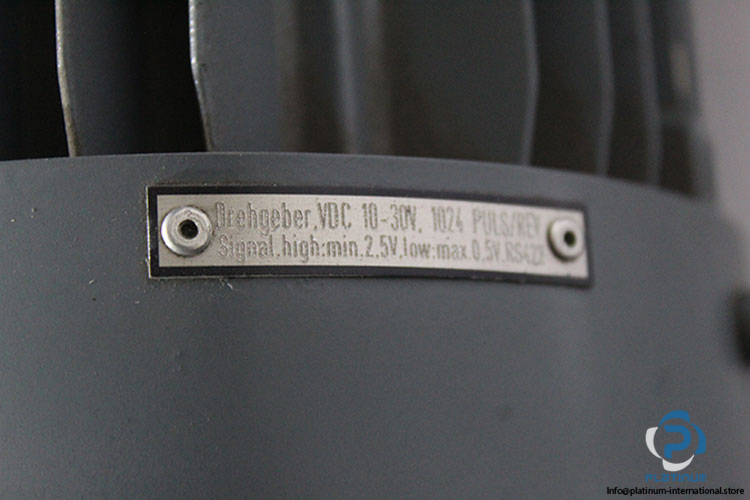

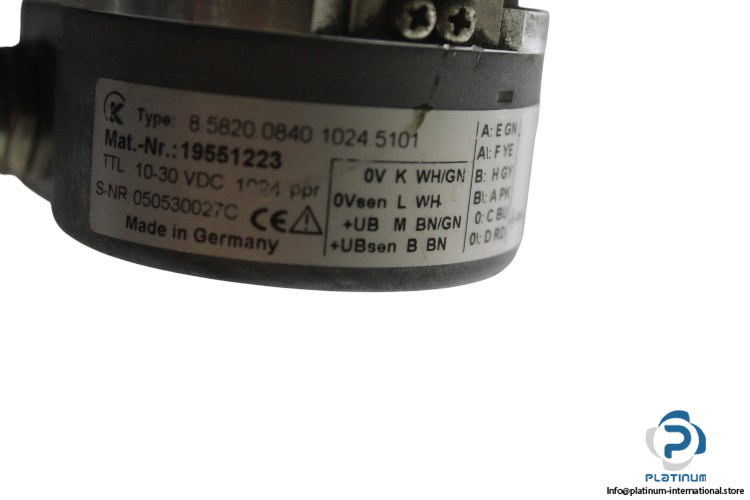

Attachment 2: KUBLER 8.5820.0840.1024.5101 Rotary Encoder
Manufacturer: Kubler
Model: 8.5820.0840.1024.5101
Art No.: 19551223
- Voltage: 10 to 30 V DC
- Resolution: 1024 ppr
