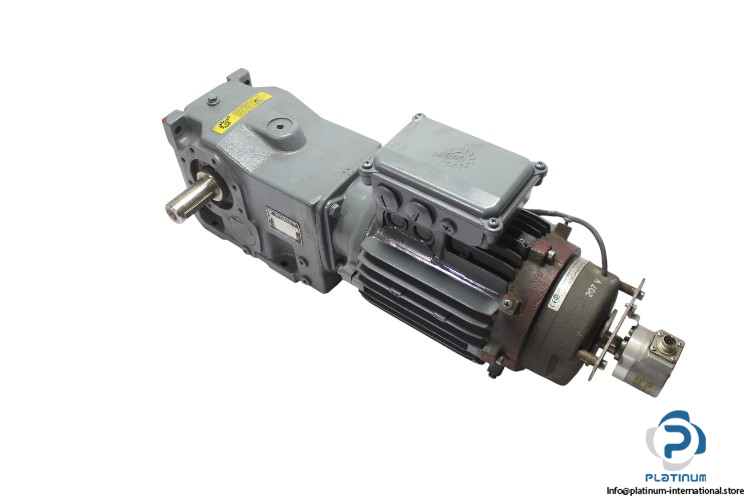

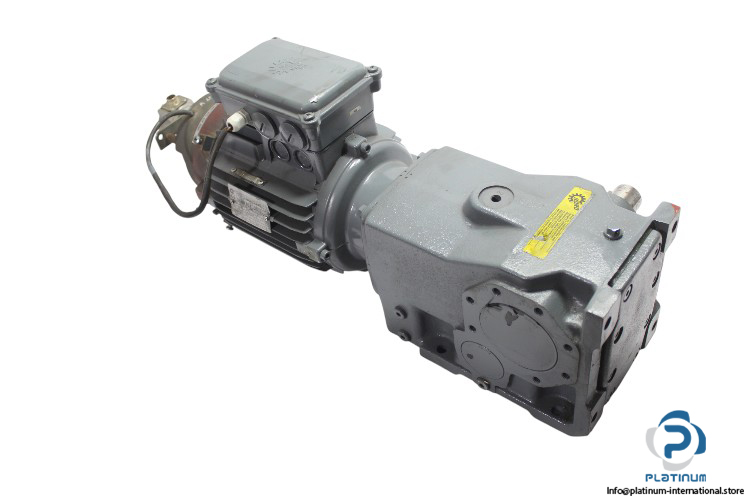

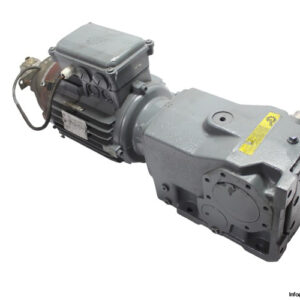

Nord SK90L/40BRE20TF FFRK1 Gear Motor

The Nord SK90L/40BRE20TF FFRK1 Gear Motor is designed for high efficiency in demanding industrial applications. With a power of 2.20 kW at 50Hz and 2.55 kW at 60Hz, it provides reliable performance for various types of machinery requiring robust power and durability.

Manufacturer: Nord

Model: SK90L/40BRE20TF FFRK1

Type: Gear Motor

Part No.: 40048118/0002

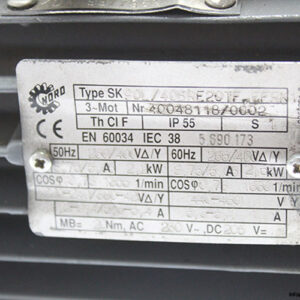

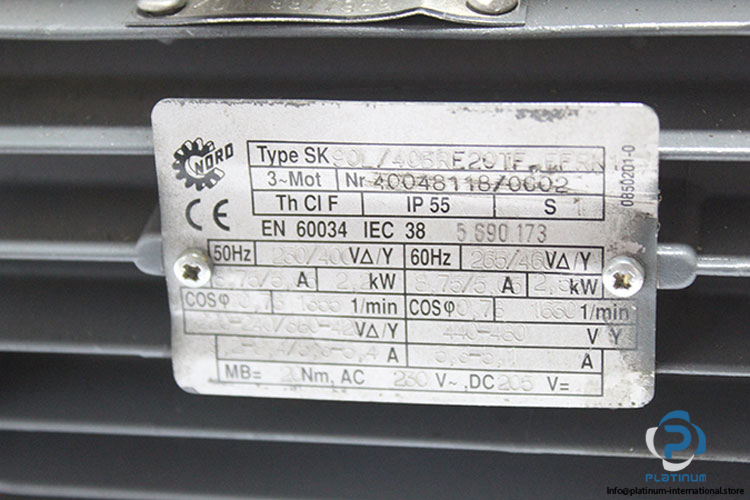

Technical Information:

• Rated Voltage at 50Hz: 230/400, 220 to 240 / 380 to 420 V
• Rated Current at 50Hz: 8.75/5.05 A, 9.20 to 9.40/ 5.30 to 5.40 A
• Power at 50Hz: 2.20 kW
• Speed at 50Hz: 1355 rpm
• Power Factor (cos): 0.78
• Rated Voltage at 60Hz: 265/460, 440 to 480 V
• Rated Current at 60Hz: 8.74/5.05 A, 5.30 to 5.10 A
• Rated Power at 60Hz: 2.55 kW
• Rated Speed at 60Hz: 1630 rpm
• Power Factor (cos) at 60Hz: 0.78
• IP Rate: IP55
• Thermal Class: F
• Duty: S1
• Brake Torque: 20 Nm
• Brake Voltage: 230 V AC, 205 V DC

Attachments:

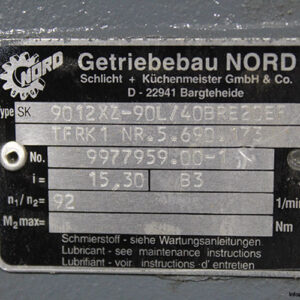

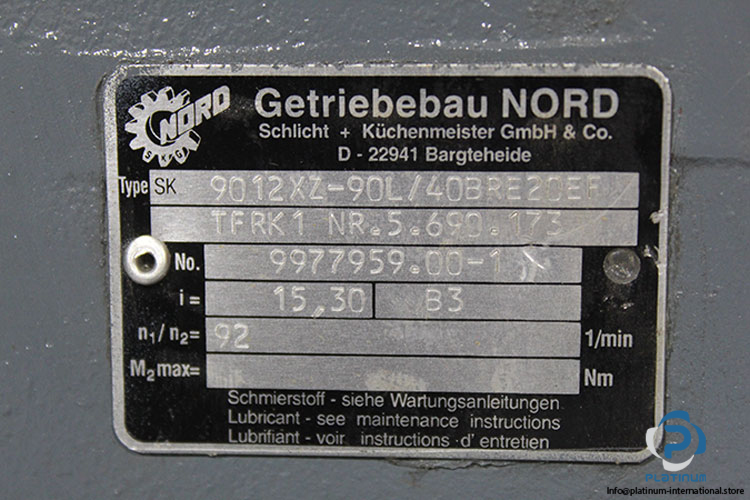

Attachment 1: NORD SK 9012XZ-90L/40BRE20EF TFRK1 NR.5.690.173 GEAR

• Manufacturer: Nord
• Type: Gear
• Model: SK 9012XZ-90L/40BRE20EF TFRK1 NR.5.690.173
• Part No.: 9977959.00-1

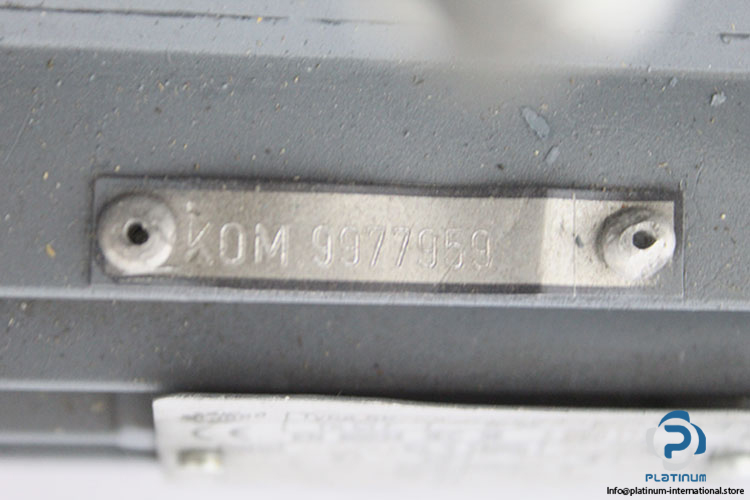

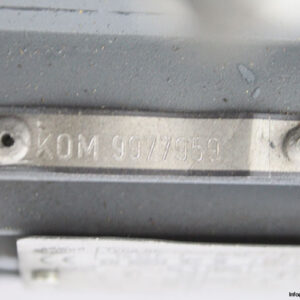

• Code: KOM 9977959
• Ratio: 15.30
• Speed: 92 rpm

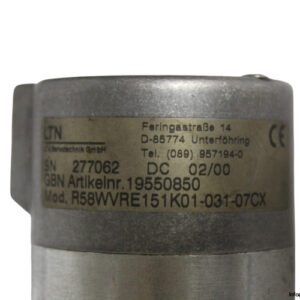

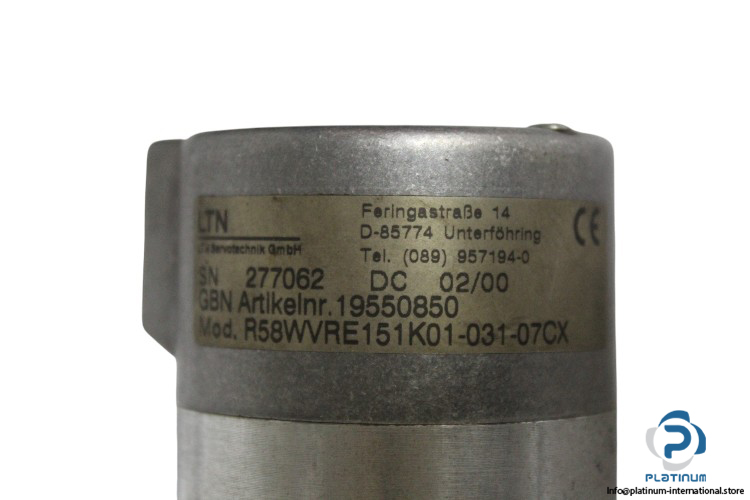

Attachment 2: LTN R58WVRE151K01-031-07CX Resolver/Encoder

• Manufacturer: LTN
• Type: Resolver/Encoder
• Model: R58WVRE151K01-031-07CX
• Art No.: 19550850

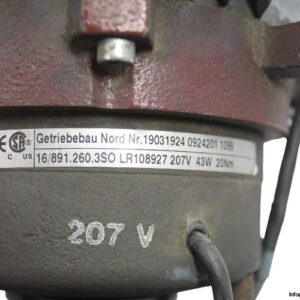

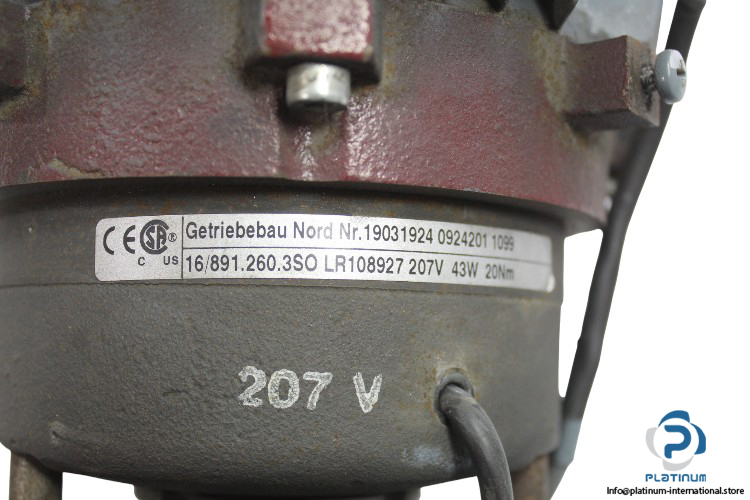

Attachment 3: NORD 16/891.260.3SO Brake

• Manufacturer: Nord
• Type: Brake
• Model: 16/891.260.3SO
• Part No.: 19031924/ 0924201/ 1099
• Voltage: 207 V
• Power: 43 W
• Torque: 20 Nm
