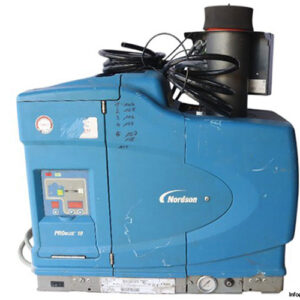

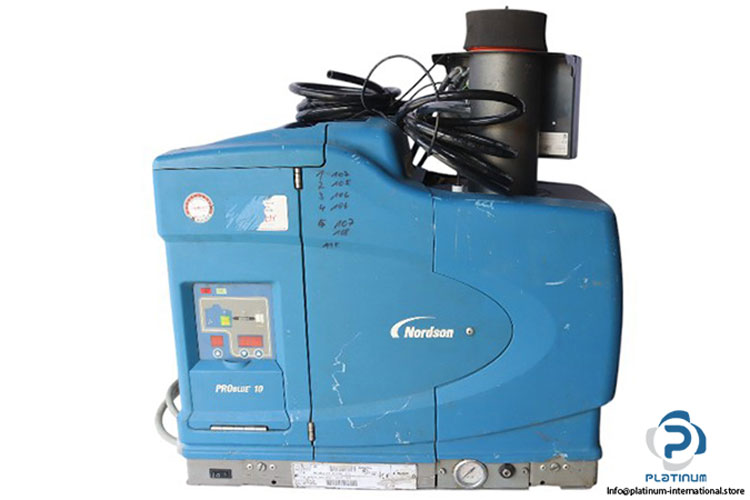

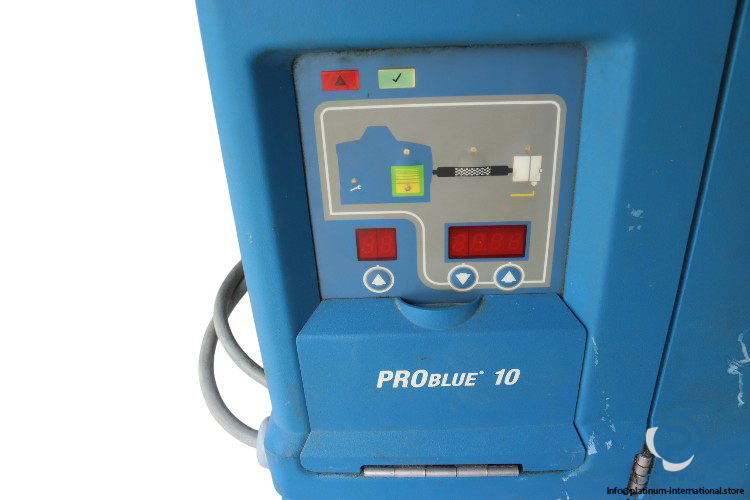

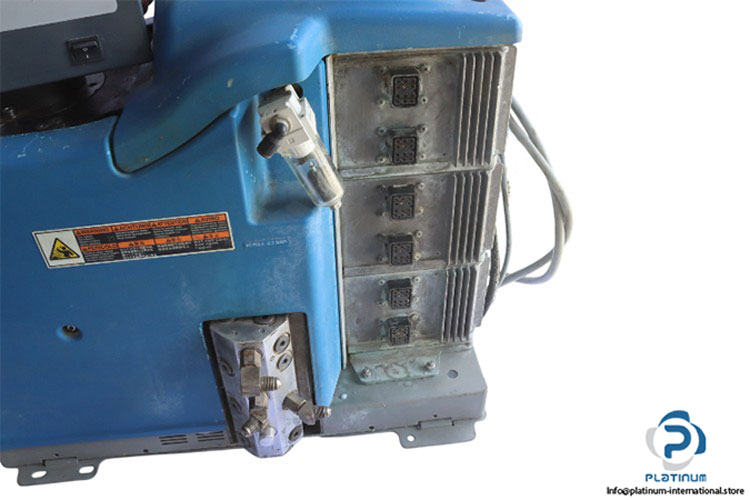

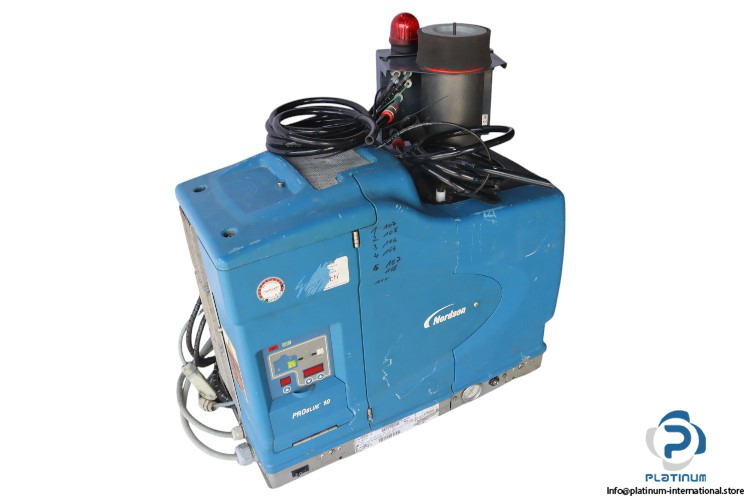

Nordson ProBlue 10 Adhesive Melter with Integrated Fill System

The Nordson ProBlue 10 is a high-performance adhesive melter designed for efficient hot melt dispensing in packaging and manufacturing applications. This unit comes equipped with the Meltech AGF33019 Integrated Fill System for enhanced automation and uninterrupted adhesive supply. Built for durability and precision, it delivers excellent throughput and reliability in demanding environments.

Manufacturer: Nordson

Type: Adhesive Melter

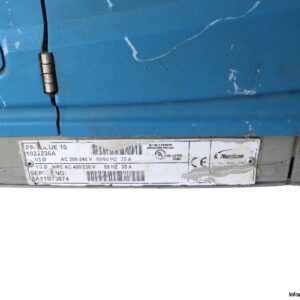

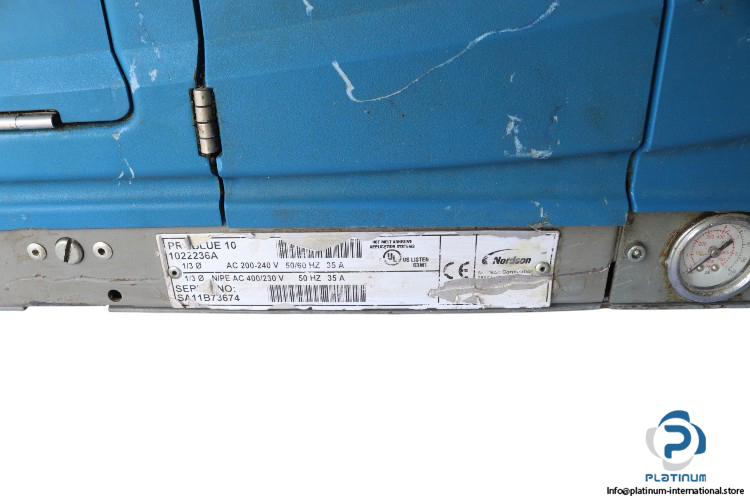

Model: ProBlue 10

Part No.: 1022236A

Serial No.: SA11B73674

Technical Information:

• Type of System: Non-Circulating Tank
• Tank Volume: 10 liters
• Holding Capacity: 9.7 kg
• Melt Rate: 11 kg/hr
• Throughput: 12.4 kg/hr
• Maximum Pump Rate: 32.7 kg/hr
• Rated Current: 35 A

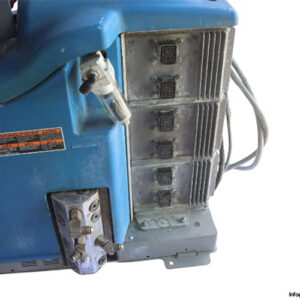

• Hose Ports: 9
• Maximum System Power Capacity at 240 V:
  • 2 hoses/guns: 4200 watts
  • 4 hoses/guns: 6200 watts
  • 6 hoses/guns: 8200 watts
• Filter Type: Saturn® basket-style filter
• Hydraulic Pressure: 8.7 MPa
• Temperature Range: 40 to 230 °C
• Ambient Temperature Range: 0 to 50 °C
• Electrical Service Standard:
  • 200 to 240 V AC, 1 or 3 phase, 50/60 Hz @ 35 A
  • 400/230 V AC, 1 phase N/PE, 50 Hz @ 35 A
  • 400/230 V AC, 3 phase N/PE, 50 Hz @ 35 A
• Dimensions (L x W x H): 613 x 505 x 344 mm

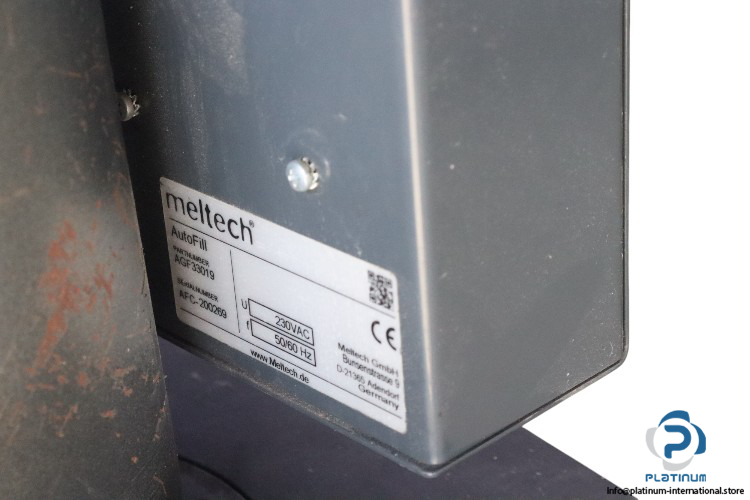

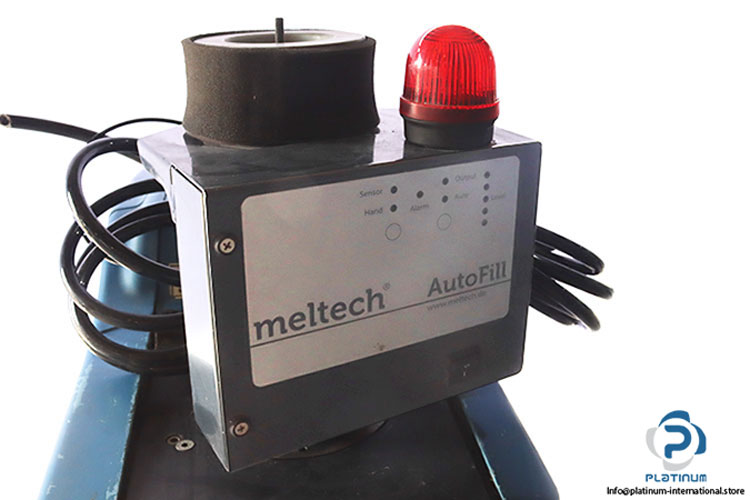

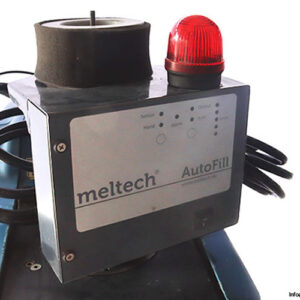

Integrated Fill System (Attachment):

• Manufacturer: Meltech Nordson
• Type: Integrated Fill System
• Model: AGF33019
• Part No.: AFC-200269
• Voltage: 230 V AC
• Frequency: 50/60 Hz
