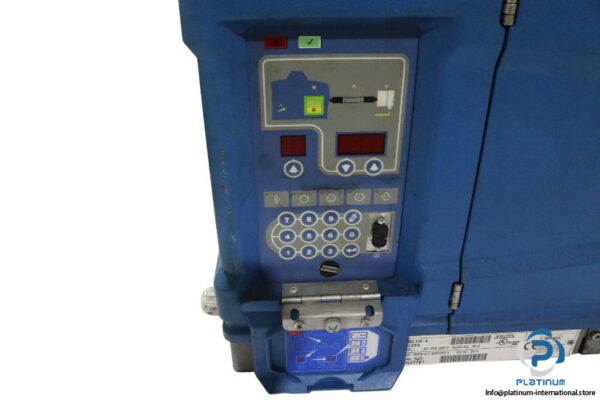

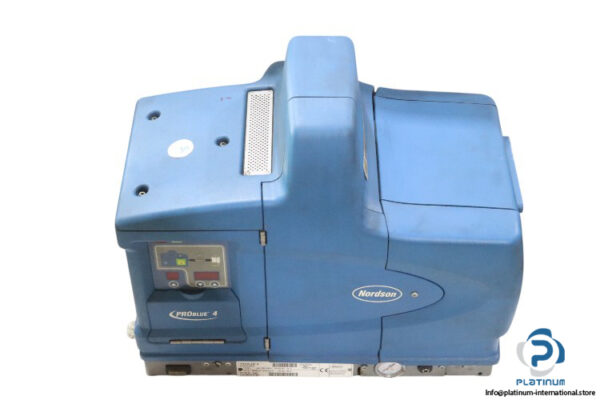

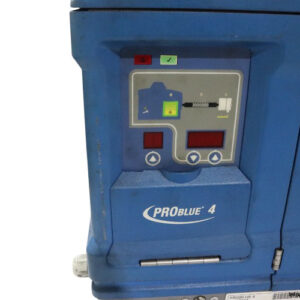

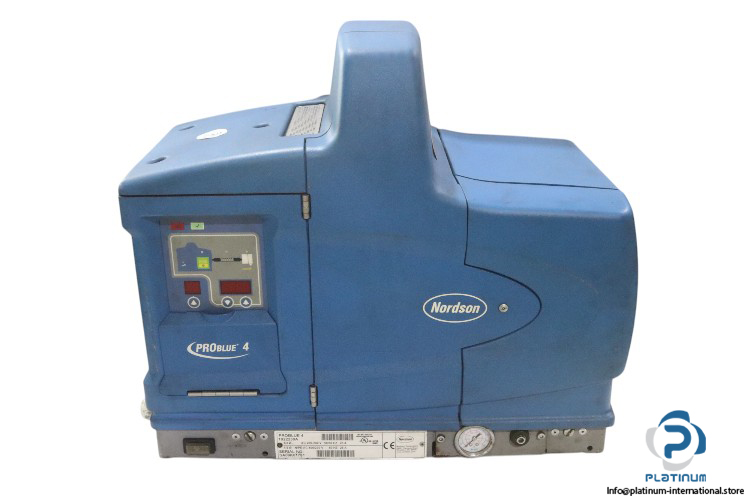

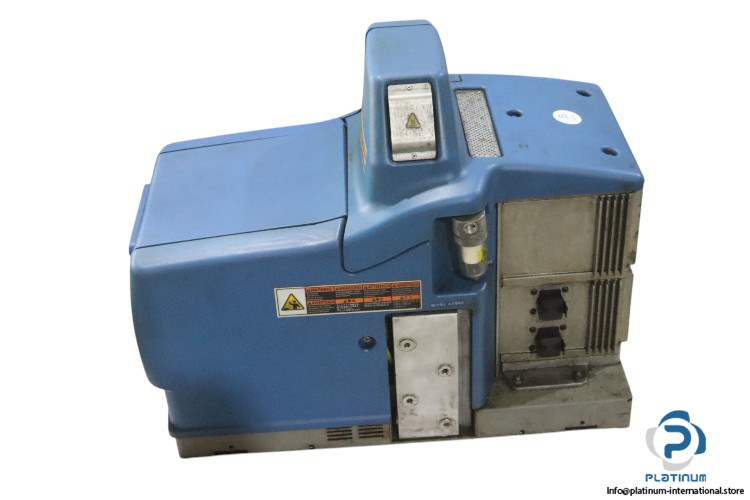

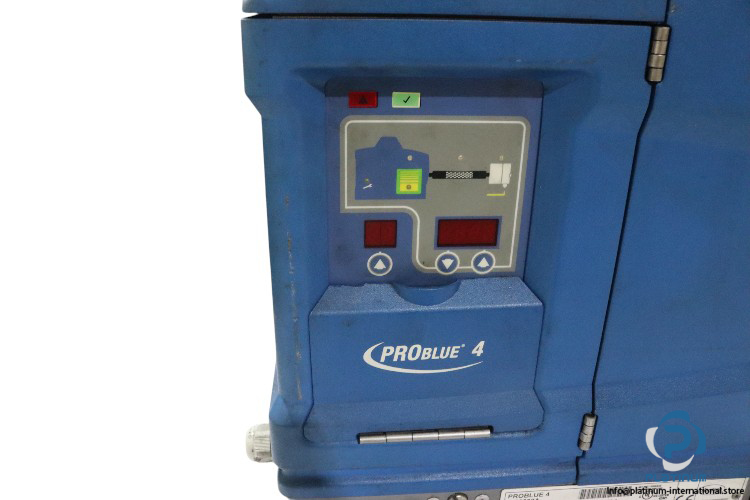

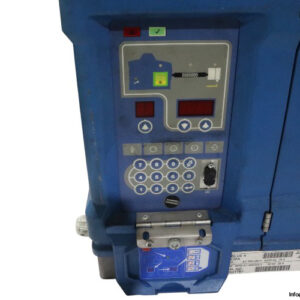

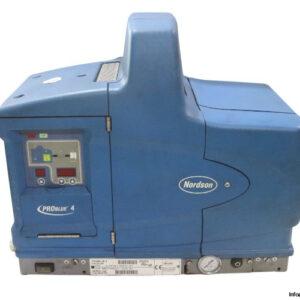

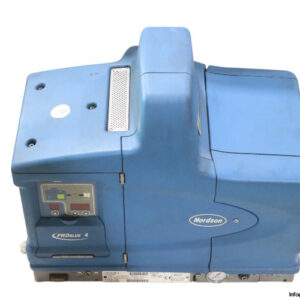

Nordson PROBLUE 4 Adhesive Melter

The Nordson PROBLUE 4 adhesive melter is a compact, high-efficiency hot melt system engineered for non-circulating applications using a 14:1 SP-style piston pump. With a robust melt rate, precise temperature control, and durable construction, it delivers reliable performance in packaging, assembly, and other industrial adhesive applications.

Manufacturer: Nordson

Type: Adhesive Melter

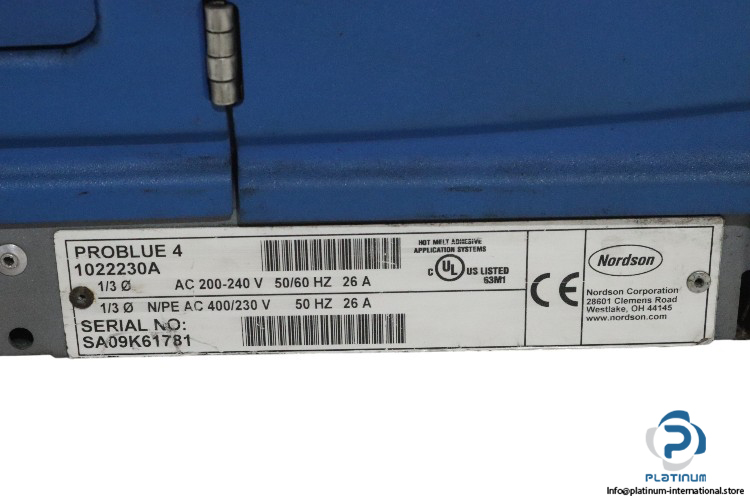

Model: PROBLUE 4

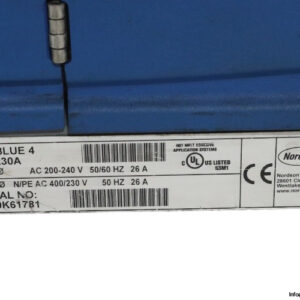

Part No.: 1022230A

Serial No.: SA09K61781

Technical Information:

• Type of System: Non-circulating tank (14:1 SP-style piston pump)
• Tank Volume: 4 liters
• Holding Capacity: 3.9 kg (8.6 lb)
• Throughput: 6.8 kg (15 lb)
• Melt Rate: 4.3 kg (9.5 lb)
• Maximum Pump Rate: 32.7 kg/hr (72 lb/hr)
• Rated Current: 26 A
• Hose Ports: 5
• Maximum System Power Capacity:
  • 2 hoses/guns: 4000 watts
  • 4 hoses/guns: 6000 watts
  • 6 hoses/guns: N/A
• Filter Type: Saturn® basket-style filter

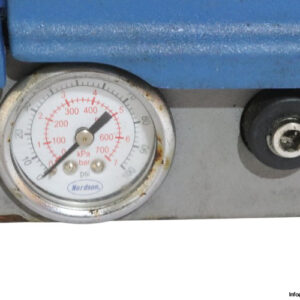

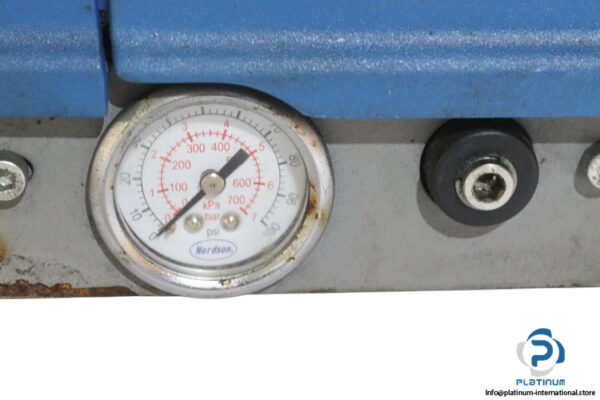

• Hydraulic Pressure: 8.7 MPa (1260 psi)
• Temperature Range: 40 to 230 °C
• Ambient Temperature Range: 0 to 50 °C
• Electrical Service Standard:
  • 200 to 240 VAC 1 or 3 phase 50/60 Hz
  • 200 to 240 VAC 1 phase N/PE 50/60 Hz
  • 400/230 VAC 3 phase N/PE 50/60 Hz
• Dimensions: 547 x 469 x 318 mm
