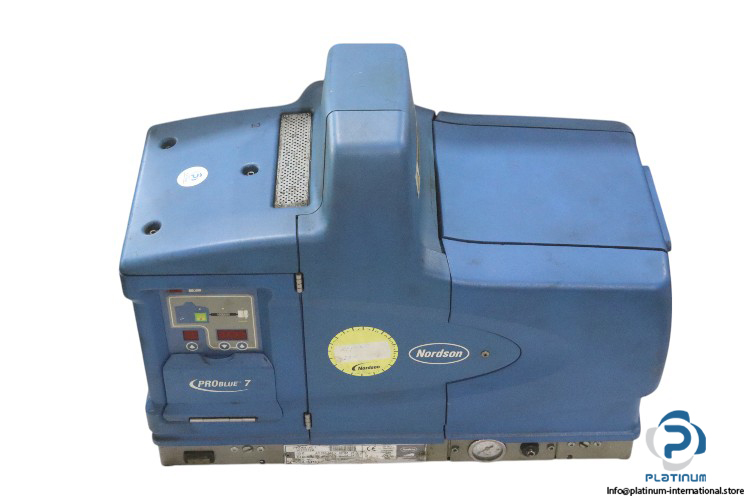

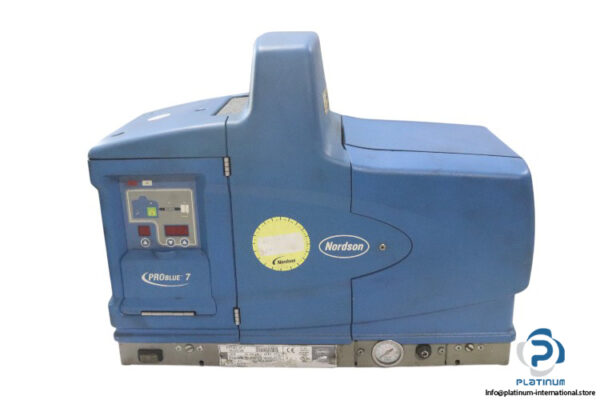

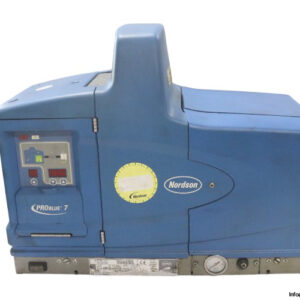

Nordson PROBLUE 7 Adhesive Melter

The Nordson PROBLUE 7 Adhesive Melter is a high-performance hot melt system built for consistent, efficient, and precise adhesive application in industrial environments. With a non-circulating tank design and a 14:1 SP-style piston pump, this unit is engineered for durability, safety, and optimal melt flow.

Manufacturer: Nordson

Type: Adhesive Melter

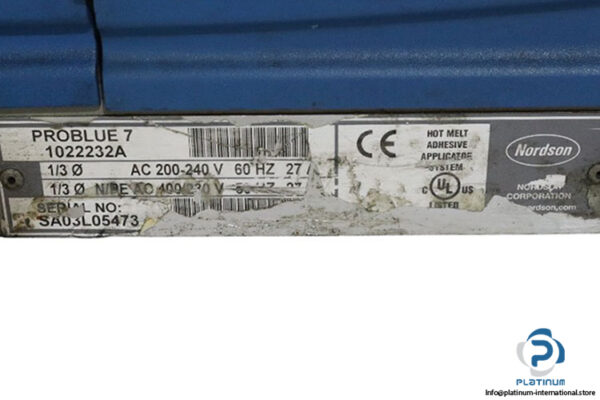

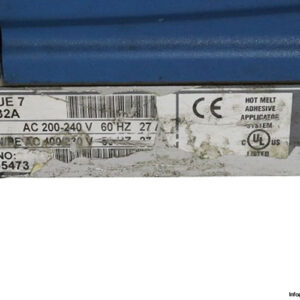

Model: PROBLUE 7

Part No.: 1022232A

Serial No.: SA03L05473

Technical Information:

• Type of System: Non-circulating tank (14:1 SP-style piston pump)
• Tank Volume: 7 liters
• Holding Capacity: 6.8 kg (15 lb)
• Throughput: 10.9 kg (24 lb)
• Melt Rate: 8.2 kg (18 lb)
• Maximum Pump Rate: 32.7 kg/hr (72 lb/hr)
• Rated Current: 27 A
• Hose Ports: 5
• System Power Capacity:
  “ 2 hoses/guns: 4200 watts
  “ 4 hoses/guns: 6200 watts
  “ 6 hoses/guns: N/A
• Filter Type: Saturn® basket-style filter
• Hydraulic Pressure: 8.7 MPa (1260 psi)
• Operating Temperature Range: 40 to 230 °C
• Ambient Temperature Range: 0 to 50 °C
• Electrical Service Standard:
  “ 200 to 240 VAC, 1 or 3 phase, 50/60 Hz
  “ 200 to 240 VAC, 1 phase N/PE, 50/60 Hz
  “ 400/230 VAC, 3 phase N/PE, 50/60 Hz
• Unit Dimensions (L x W x H): 609 x 469 x 322 mm
