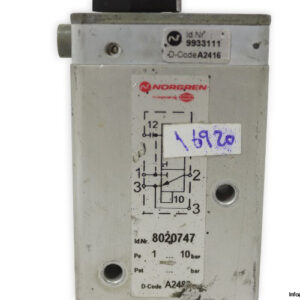

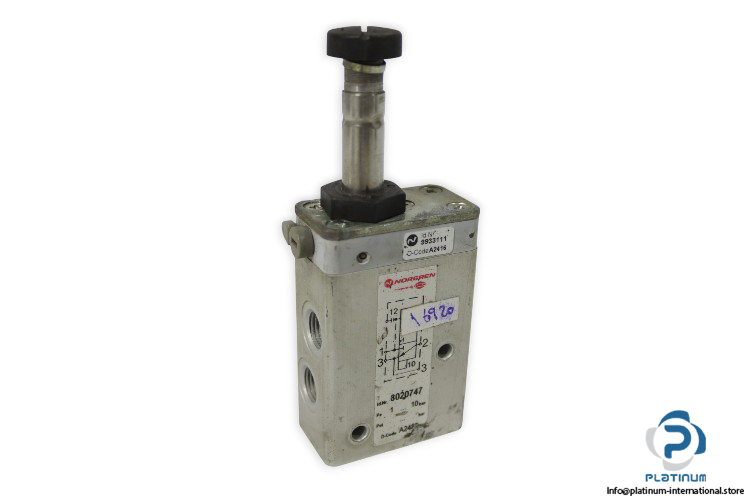

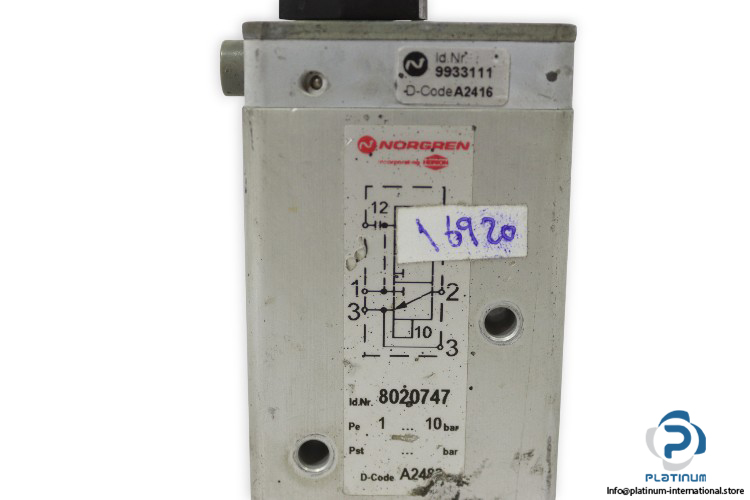

IMI Norgren 80207 47 Indirect Solenoid Actuated Spool Valve
A high-performance 3/2-way spool valve engineered for fast switching, reliable flow control, and long-term durability. Designed for pneumatic systems requiring stable operation under varying pressures and temperatures, making it ideal for industrial automation and fluid control applications.
Manufacturer: IMI Norgren
Type: Indirect Solenoid Actuated Spool Valve
Model: 80207 47
ID No.: 9933111
Code: A2416
Series: 80207
Technical Information
- Medium: Compressed air, filtered, lubricated or non-lubricated
- Function: 3/2 way
- Operating Pressure: 1 to 10 bar
- Operation: Indirect solenoid operated T-spool valves
- Flow: 1200 l/min
- Flow Direction: Fixed
- Mounting: Optional, preferably with solenoid on top
- Switching Time: 35 ms
- Connection: Port 1,3: G1/4 ” Port 2,3: Flange
- Ambient/Media Temperature: -20° to +60°C
- Materials: Housing: Aluminum anodized / Pilot flange: Plastic (POM) / Seals: NBR
