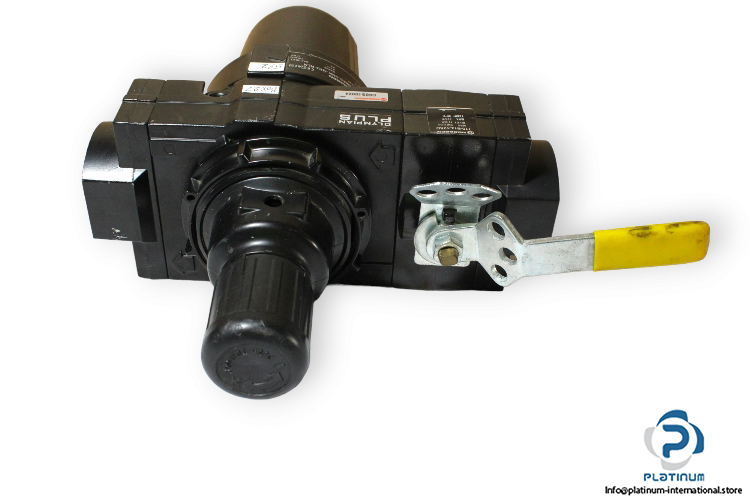

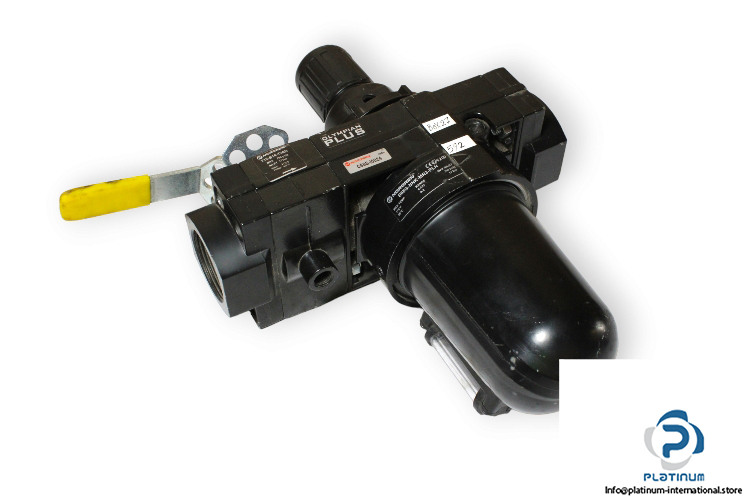

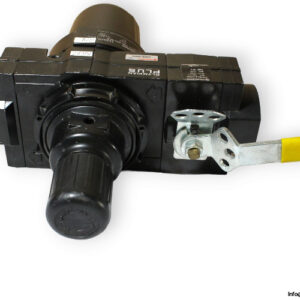

IMI-Precision Norgren B68G-NNK-MR3-RLN Olympian Plus Plug-In System

The IMI-Precision Norgren B68G-NNK-MR3-RLN Olympian Plus Plug-In System is a robust and high-efficiency air preparation unit designed for demanding pneumatic applications. Engineered for reliable performance, it ensures optimal air filtration, regulation, and control under high operating pressures.

Manufacturer: IMI-Precision Norgren
Type: Olympian Plus Plug-In System
Model: B68G-NNK-MR3-RLN

Technical Information

• Max. Operation Pressure: 17 bar
• Pressure: 0.4 / 8 bar
• Fluid: Air
• Drain: Manual
• Explosion Proof: Yes
• Medium: Compressed Air
• Filter Element Micron Rating: 40 µm
• Ambient Temperature: -20 / 80 °C
• Material: Aluminum

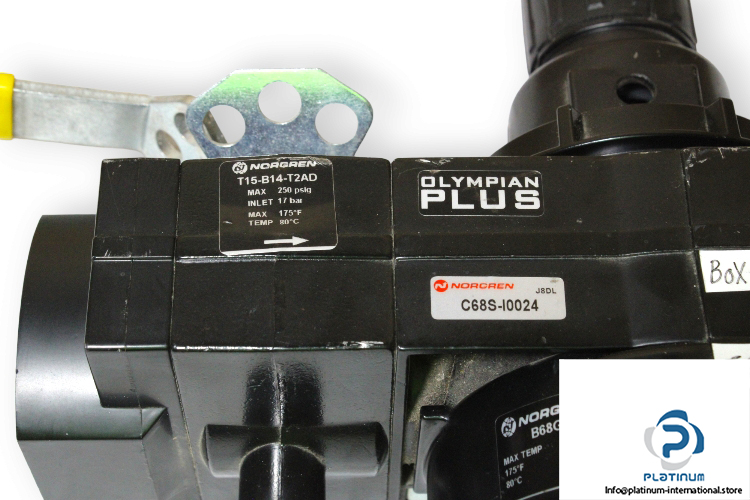

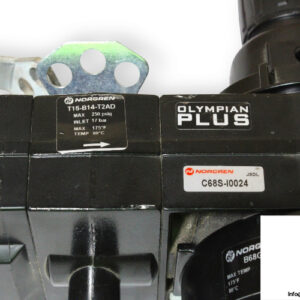

• Attached with: NORGREN T15-B14-T2AD Shut-off Valve
• Fluid (Valve): Compressed Air
• Maximum Pressure (Valve): 17 bar (250 psig)
• Operating Temperature (Valve): -20° to +80°C
• Material (Valve): Aluminum
• Attached with: NORGREN C68S-I0024 Filter with Regulator
• Ref Code: F5M
• Media (Filter Regulator): Air
• Max. Inlet Pressure (Filter Regulator): 17 bar
