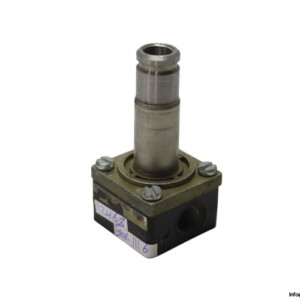

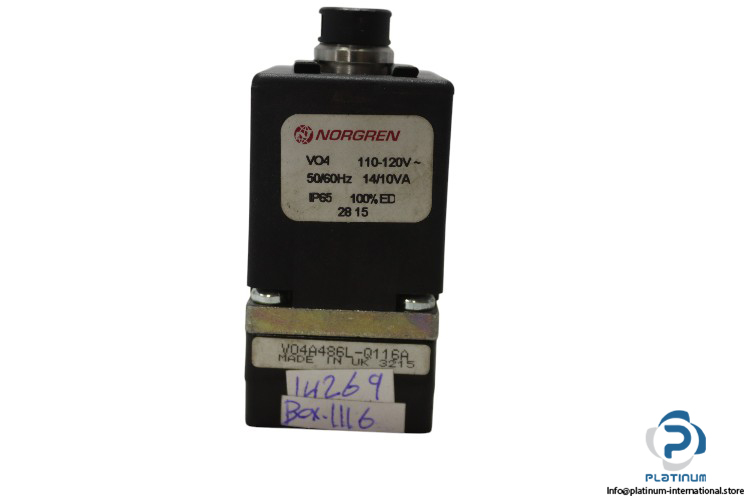

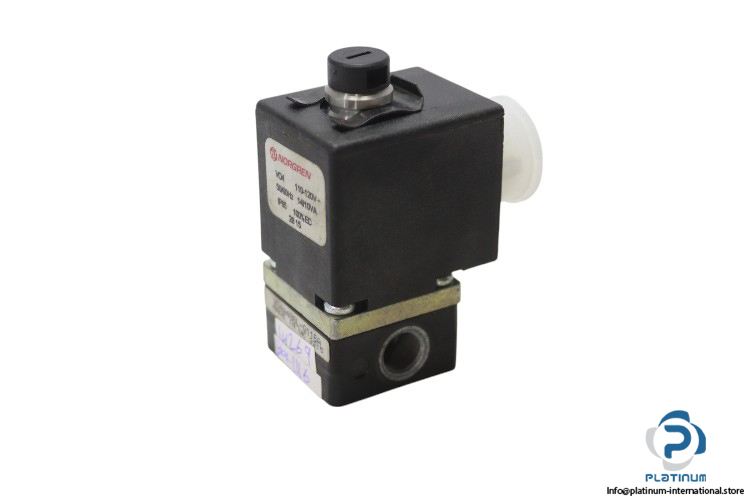

NORGREN V04A486L-Q116A 3215 SOLENOID ACTUATED POPPET VALVE + COIL

The NORGREN V04A486LQ116A 3215 is a high-performance direct solenoid actuated poppet valve, designed for reliable air control in pneumatic systems. With a 3/2 Normally Closed (NC) function, 16 bar pressure rating, and compact sub-base port size, it is ideal for industrial automation applications. Supplied with a matching V04 solenoid coil, this unit ensures efficient operation in a wide temperature range and demanding environments.

Manufacturer: NORGREN

Type: Direct Solenoid Actuated Poppet Valve

Model: V04A486L-Q116A 3215

Technical Information

Fluid: Compressed Air

Function: 3/2 Normally Closed (NC)

Type of Actuation: Electrically

Pressure Max.: 16 bar

Orifice: 2 mm

Port Size: Sub-Base

Temperature Range: -20 / 50 °C

Attachment “ Solenoid Coil

Manufacturer: NORGREN

Type: Solenoid Coil

Model: V04

Part No.: 2815

Supply Voltage: 110 / 120 V AC

Power Consumption Max.: 14/10 VA

Frequency: 50 / 60 Hz

Protection Class: IP65
