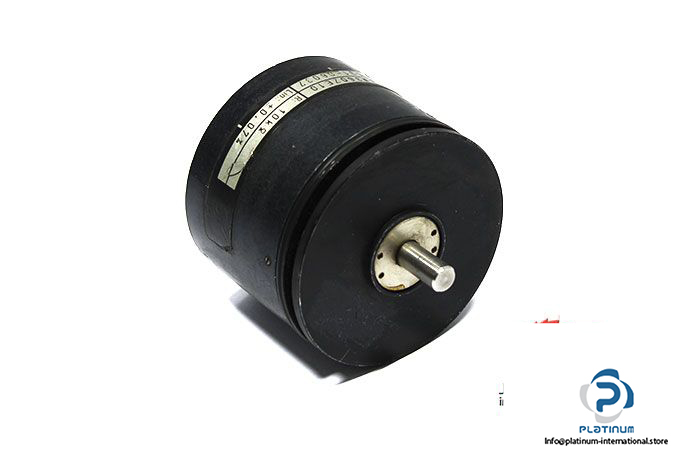

NOVOTECHNIK AW360ZE-10 HYBRID POTENTIOMETER

The Novotechnik AW360ZE-10 is a high-precision hybrid potentiometer engineered for demanding applications requiring continuous rotation, excellent linearity, and durable sealed construction. With advanced hybrid circuitry and a robust IP65-rated enclosure, it ensures stable performance in industrial environments.

Manufacturer: NOVOTECHNIK
Type: Hybrid Potentiometer
Model: AW360ZE-10

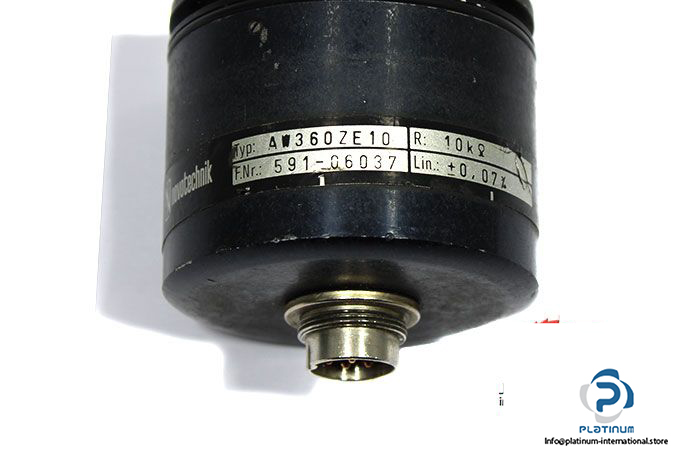

Part No.: 591-06037

Technical Information

• Shaft Type: Sealed Shaft
• Linearity: ±0.07%
• Mounting: 3 Mounting Clamps Z-3-31
• Shaft Diameter: 6 mm
• Resolution: 12 bit
• Resistance: 10 kohm
• Voltage Supply: 15 VDC
• Electrical Circuitry: Hybrid Circuit Integrated into Housing
• Angular Range: Full 360°

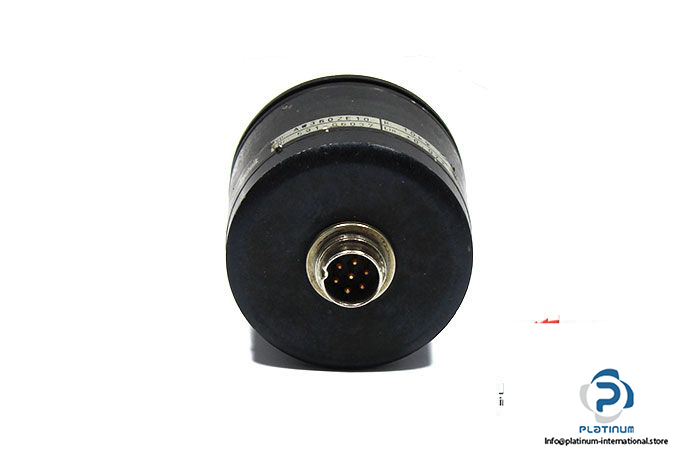

• Connection Type: 7 Pin Connector
• Protection Class: IP65
• Temperature Range: 0 / 70 °C
