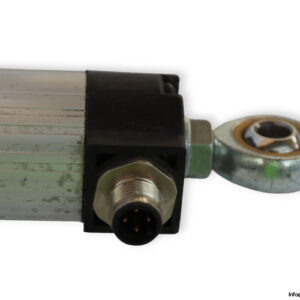

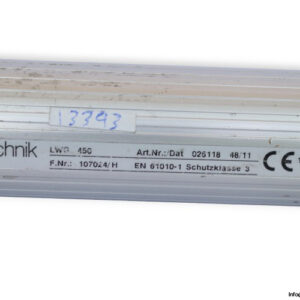

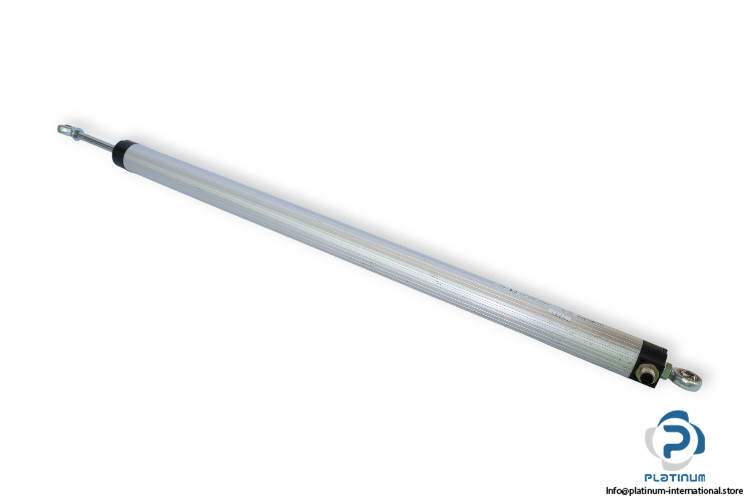

Novotechnik LWG450 Potentiometric Transducer

The Novotechnik LWG450 is a high-precision potentiometric transducer designed for measuring linear displacement. With a measuring range of 450 mm and a robust anodized aluminum body, it offers reliable performance in demanding industrial environments. Featuring an IP65 protection class and a wide operating temperature range, the LWG450 is ideal for a variety of motion control and position sensing applications.

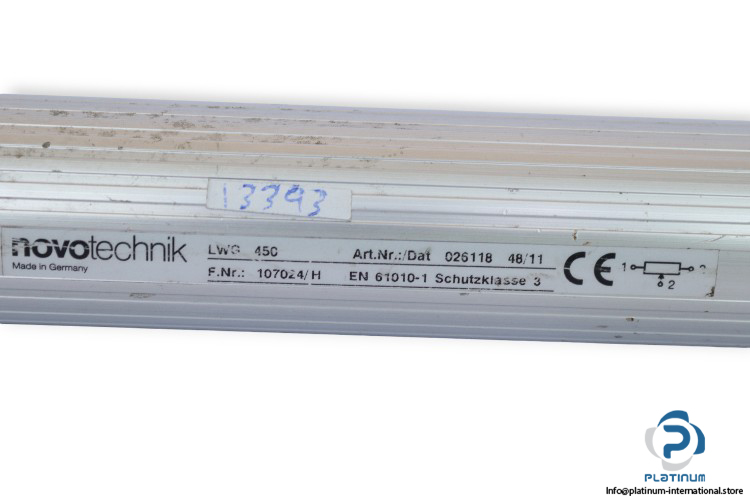

Manufacturer: NOVOTECHNIK

Type: Transducer Potentiometric

Model: LWG450

Part No.: 026118 48/11

Ref No.: 107024/H

Technical Data:

• Measuring Range: 450 mm
• Operating Voltage Max.: 42 V DC
• Rated Current Max.: 10 mA
• Resistance: 5 kΩ

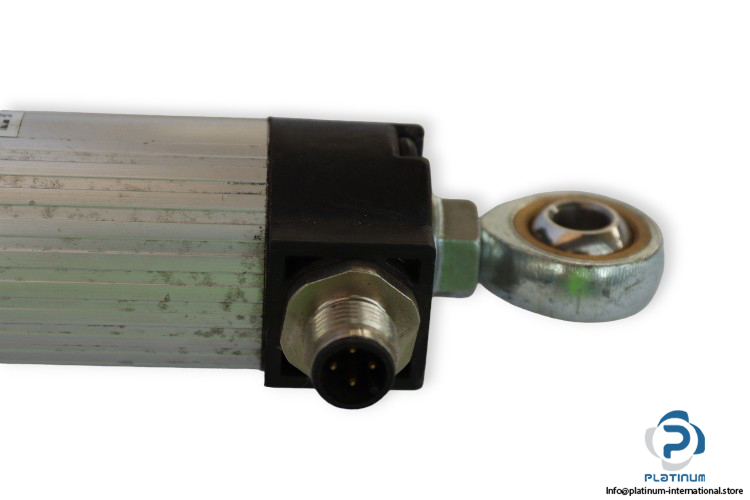

• Electrical Connection: Connector M12x1, 4-Pin, A-Coded
• Bearing: Slide Bearing
• Mounting Method: Pivot Head Mounting
• Material: Aluminum, Anodized
• Length: 619 mm
• Protection Class: IP65
• Temperature: -30 to 100 °C
