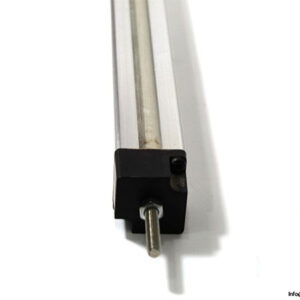

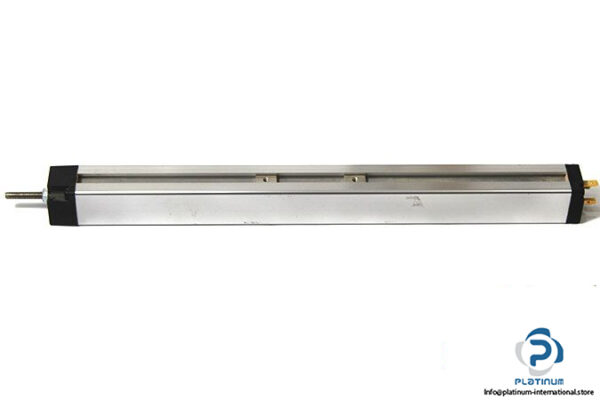

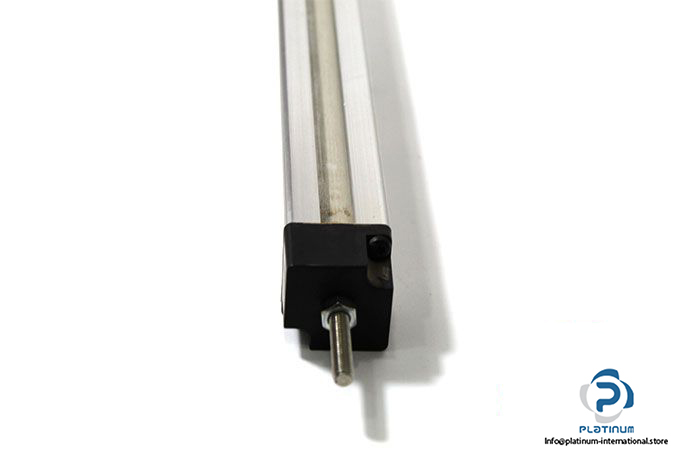

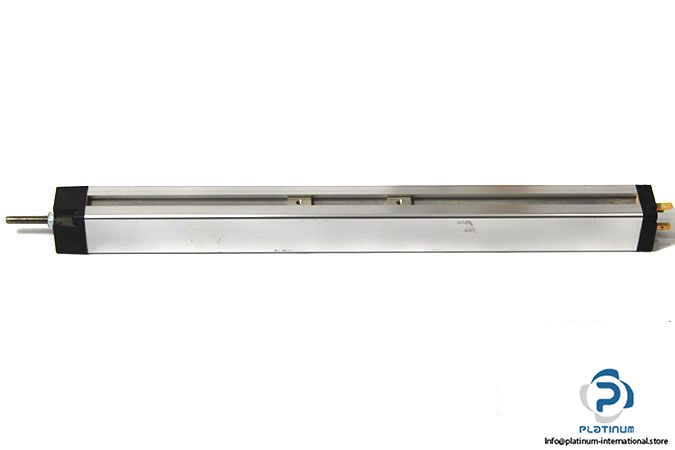

NOVOTECHNIK LWH 300 POSITION TRANSDUCER

The NOVOTECHNIK LWH 300 is a high-precision linear position transducer, engineered for robust and reliable performance in demanding industrial environments. With a defined electrical range of 300 mm and superior linearity, it is ideal for motion control systems requiring accurate position feedback.

Manufacturer: NOVOTECHNIK
Type: Position Transducer

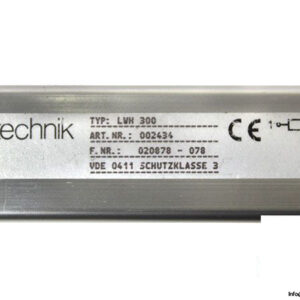

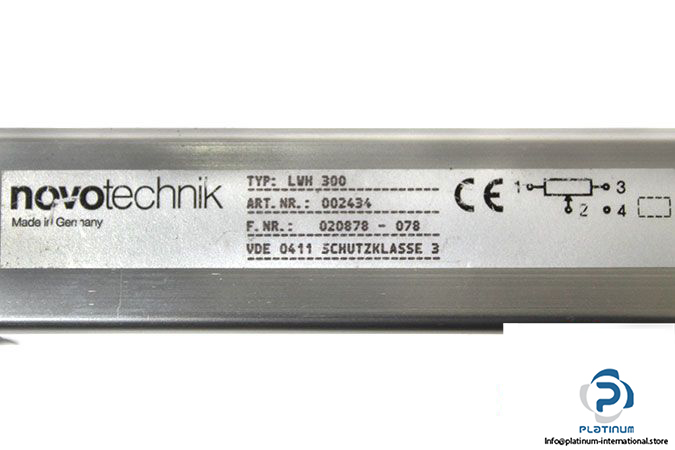

Model: LWH 300
Art. Nr.: 002434
F.NR.: 020878-078

Technical Information

• Defined Electrical Range: 300 mm
• Electrical Stroke: 304 mm
• Resistance (C.E.T.): 5 Kiloohm
• Linearity: ± 0.06%

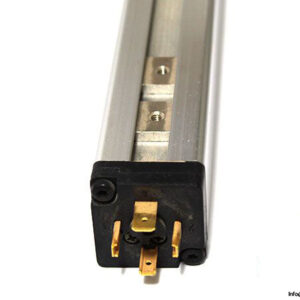

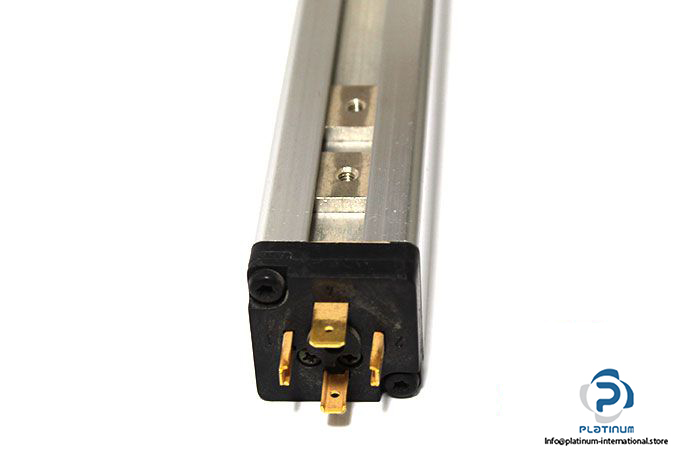

• Electrical Connection: Plug and socket to DIN 43650
• Protection Class: IP 55
• Material Housing: Aluminium, anodized
• Temperature Range: -30 / 100°C
