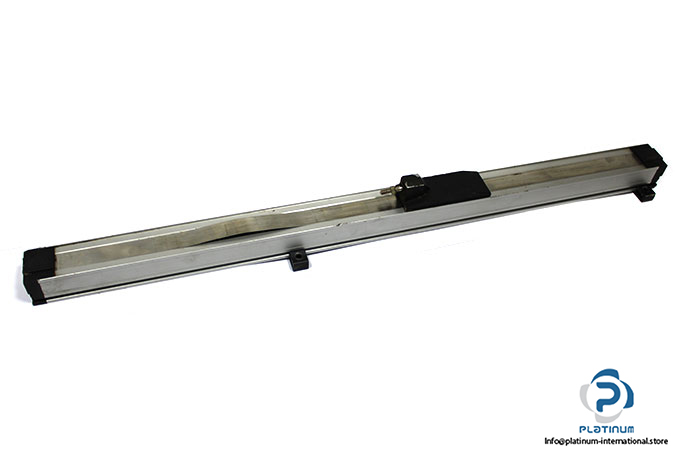

Novotechnik TLH 500 Position Transducer Potentiometric

The Novotechnik TLH 500 is a high-precision potentiometric position transducer designed for reliable measurement and control in industrial automation systems. With a mechanical stroke length of 514 mm and electrical stroke length of 500 mm, it provides accurate displacement measurement with a maximum displacement speed of 10 m/s.

Manufacturer: Novotechnik

Type: Position Transducers Potentiometric

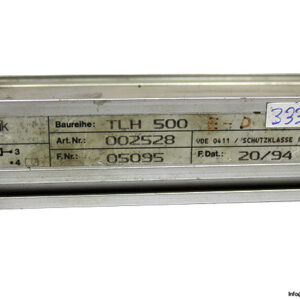

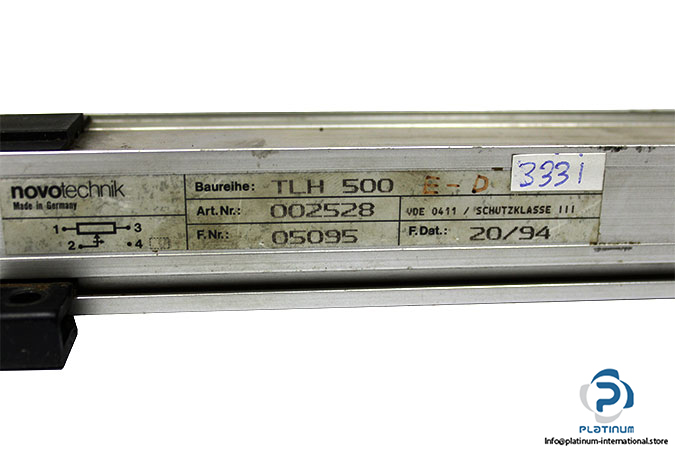

Model: TLH 500

Art No.: 002528

Technical Data:

• Stroke Length “ Electrical: 500 mm
• Stroke Length “ Mechanical: 514 mm
• Operating Voltage Max.: 42 V
• Resistance: 5 kOhm
• Displacement Speed: 10 m/s
• Termination Type: Connector, 4-Pole
• Mounting Type: Clamp Mount
• Protection Rating: IP40
• Operating Temperature: “30 / +100°C
