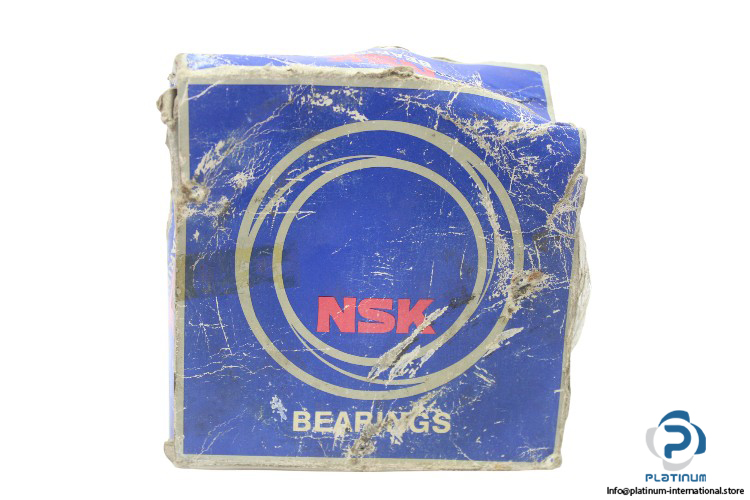

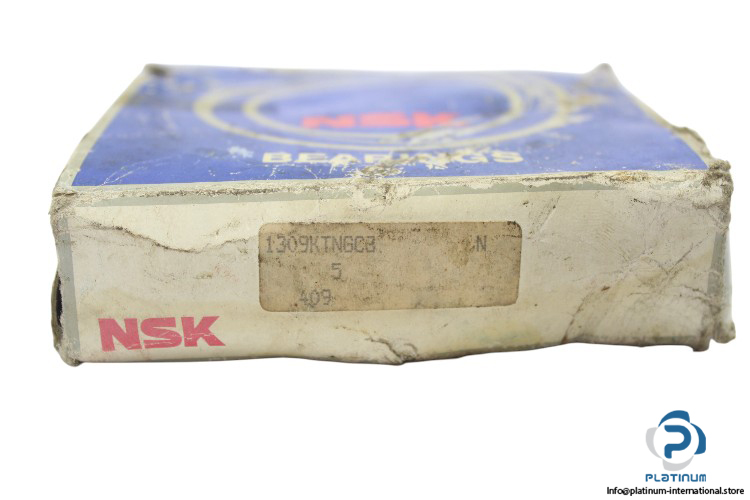

NSK 1309KTNGC3 Self-Aligning Ball Bearing

The NSK 1309KTNGC3 Self-Aligning Ball Bearing is engineered to accommodate misalignment and shaft deflection, making it ideal for demanding applications. With a durable TNG solid polyamide cage and C3 internal clearance, it delivers smooth operation at high speeds with excellent load capacity.

Manufacturer: NSK

Type: Self-Aligning Ball Bearing

Model: 1309KTNGC3

Technical Information:

• Bore Diameter (d): 45 mm
• Outer Diameter (D): 100 mm
• Width: 25 mm
• Dynamic Load Rating: 38 kN
• Static Load Rating: 12.90 kN
• Oil Lubrication Limit Speed: 7500 RPM
• Grease Lubrication Limit Speed: 6300 RPM
• Clearance: C3
• Bore Type: Tapered 1:12
• Cage: TNG, Solid polyamide cage without glass-fiber reinforcement
