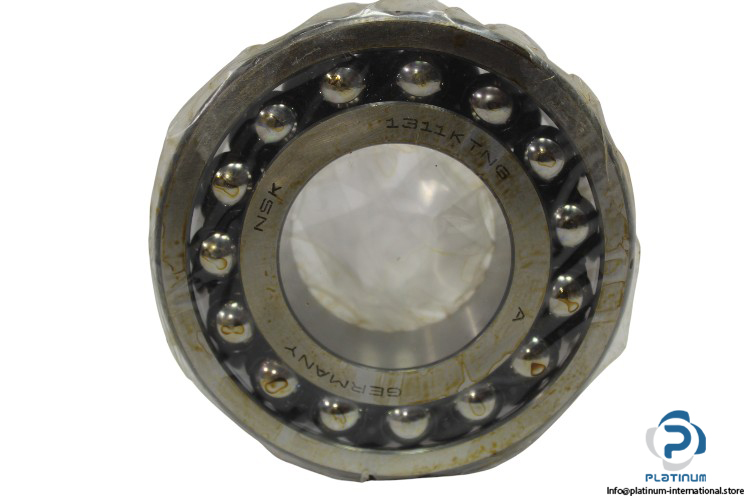

NSK 1311 KTNG Self-Aligning Ball Bearing
The NSK 1311 KTNG Self-Aligning Ball Bearing is engineered for applications where shaft deflection or misalignment is a concern. It features a tapered 1:12 bore and a durable TNG polyamide cage without glass-fiber reinforcement, ensuring smooth performance under variable load conditions.
Manufacturer: NSK
Type: Self-Aligning Ball Bearing
Model: 1311 KTNG
Technical Information:
- Bore Diameter (d): 55 mm
- Outer Diameter (D): 120 mm
- Width: 29 mm
- Dynamic Load Rating: 51 kN
- Static Load Rating: 18 kN
- Oil Lubrication Limit Speed: 6000 RPM
- Grease Lubrication Limit Speed: 5000 RPM
- Bore Type: Tapered 1:12
- Cage: TNG, solid polyamide (no glass-fiber reinforcement)
