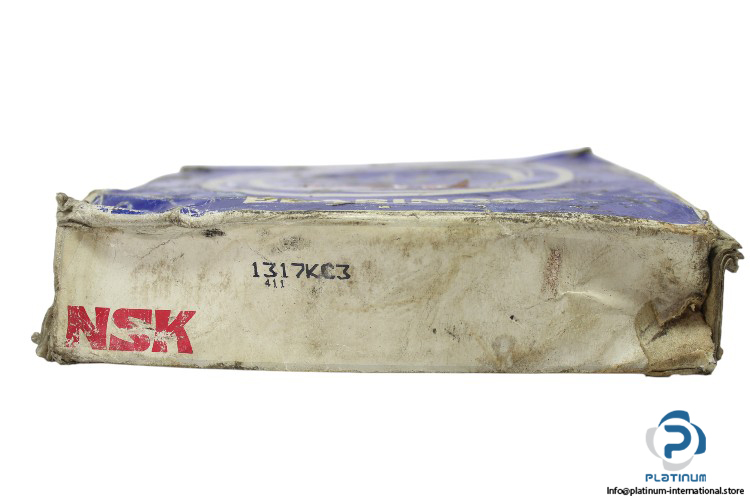

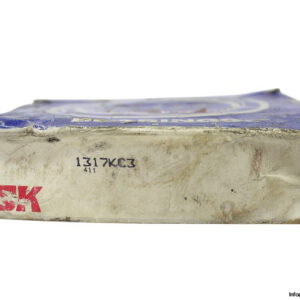

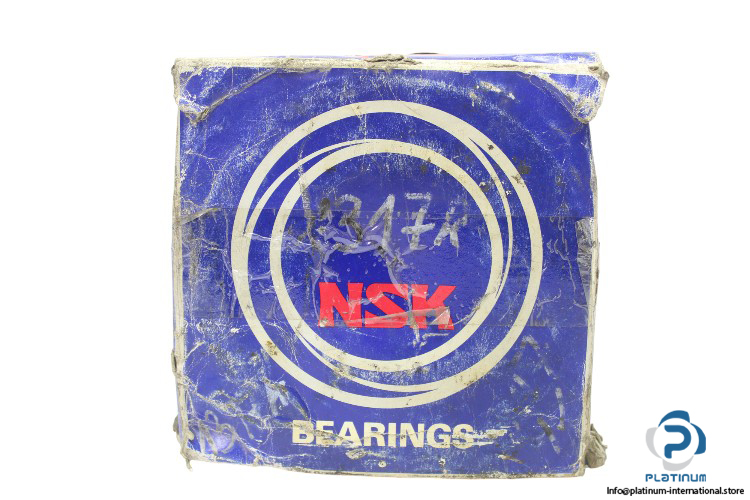

NSK 1317KC3 Self-Aligning Ball Bearing

Developed to support high radial loads and compensate for misalignment, the NSK 1317KC3 self-aligning ball bearing ensures long-lasting performance in dynamic industrial applications.

Manufacturer: NSK

Type: Self-Aligning Ball Bearing

Model: 1317KC3

Technical Information:

• Bore Diameter (d): 85 mm
• Outer Diameter (D): 180 mm
• Width (B): 41 mm
• Dynamic Load Rating: 98,500 N
• Static Load Rating: 38,000 N
• Limiting Speed (Grease): 3400 RPM
• Limiting Speed (Oil): 4000 RPM
• Bore Type: K, Tapered 1:12
• Radial Internal Clearance: C3
