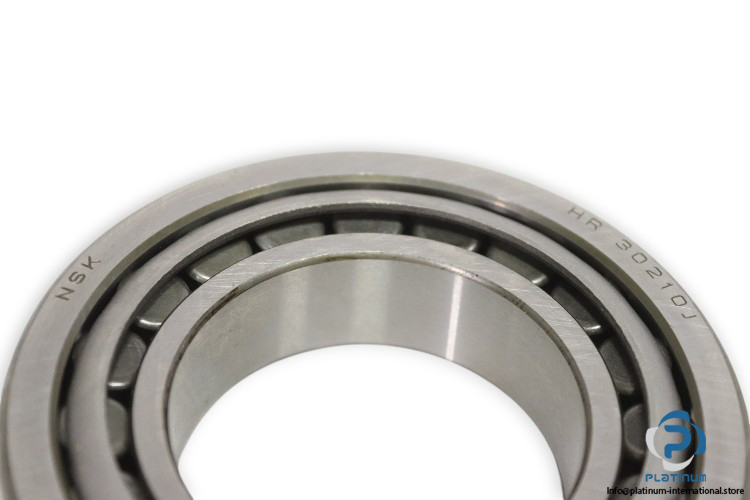

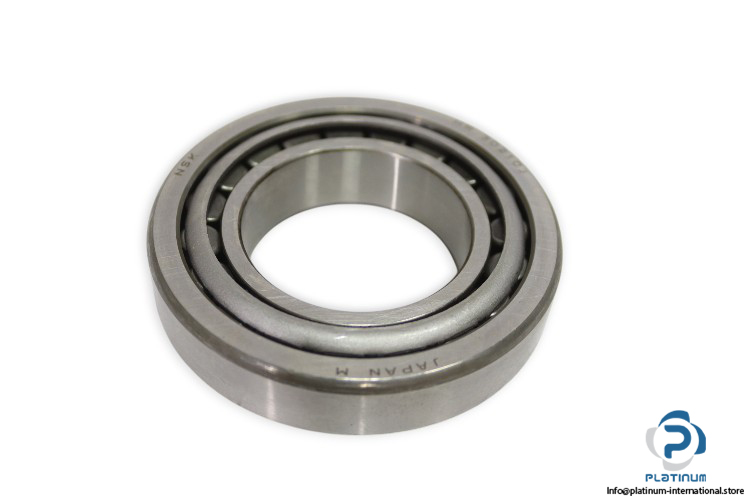

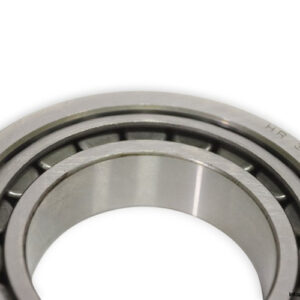

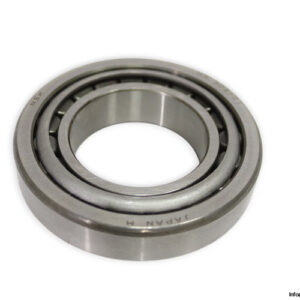

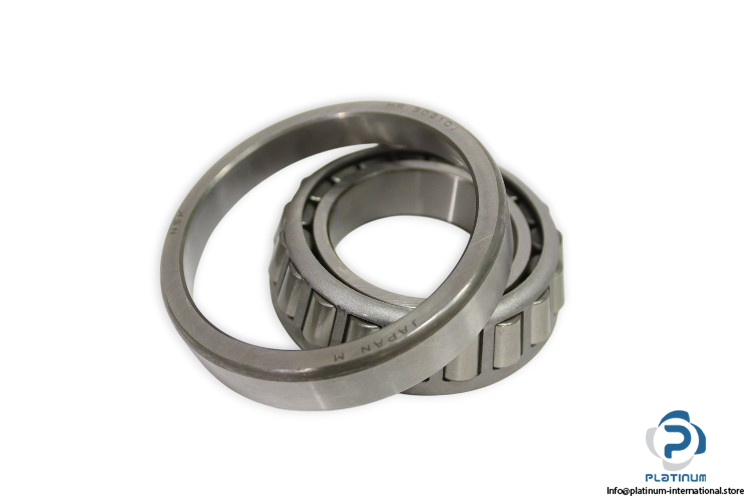

NSK HR30210J Tapered Roller Bearing
The NSK HR30210J is a high-quality tapered roller bearing designed for heavy-duty applications requiring precise load handling, durability, and efficient rotation.
Manufacturer: NSK
Type: Tapered Roller Bearing
Model: HR30210J
Technical Information
- Bore Diameter (d): 50 mm
- Outside Diameter (D): 90 mm
- Total Width (T): 21.75 mm
- Width of Inner Ring (B): 20 mm
- Width of Outer Ring (C): 17 mm
- Chamfer Dimension of Outer Ring Cup r (min.): 1.5 mm
- Chamfer Dimension of Inner Ring Cone r (min.): 1.5 mm
- Basic Dynamic Load Rating (Cr): 94,000 N
- Basic Static Load Rating (C‚r): 91,500 N
- Grease Lubrication Speed: 4000 rpm
- Oil-Bath Lubrication Speed: 5300 rpm
