New
Manufacturer: NSK

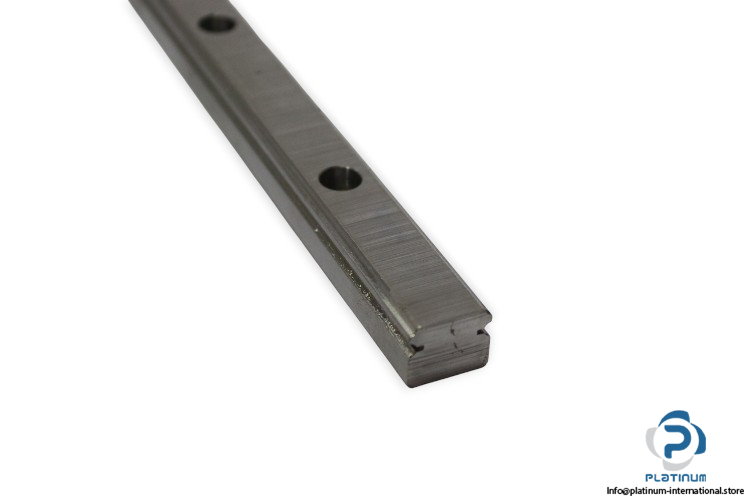

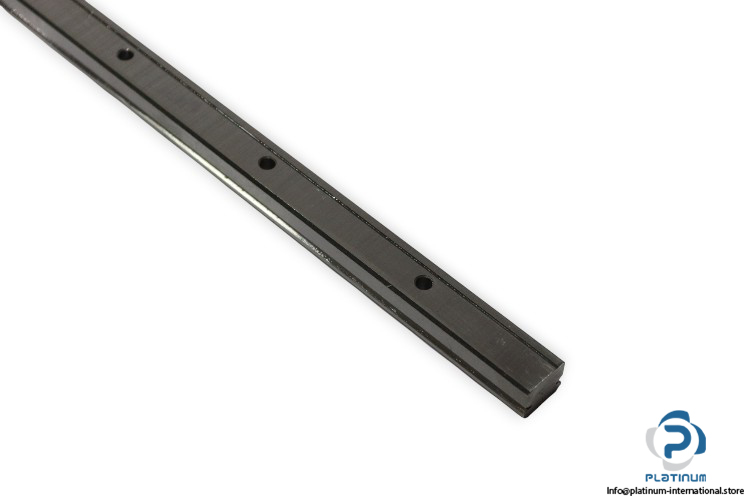

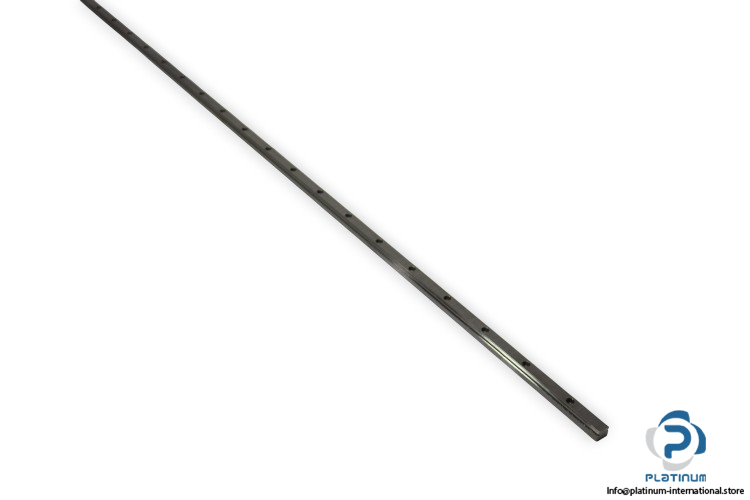

NSK L1S15-1140T RAIL GUIDE

Interchangeable Rail

NSK L1S15-1140T fine clearance rail, 15 mm size, with precision 60 mm pitch and counterbore hole for M4. Designed for smooth linear motion and reliable machine performance.

SKU: 1082659 Category: Tags: , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

NSK L1S15-1140T Interchangeable Rail (Fine Clearance)

The NSK L1S15-1140T is a precision interchangeable rail designed with fine clearance for smooth and stable linear motion applications. It offers high accuracy and consistent performance suitable for machinery, automation systems, and industrial equipment.

Manufacturer: NSK
Type: Interchangeable Rail (Fine Clearance)
Model: L1S15-1140T
Linear Guide Model: L1S15T

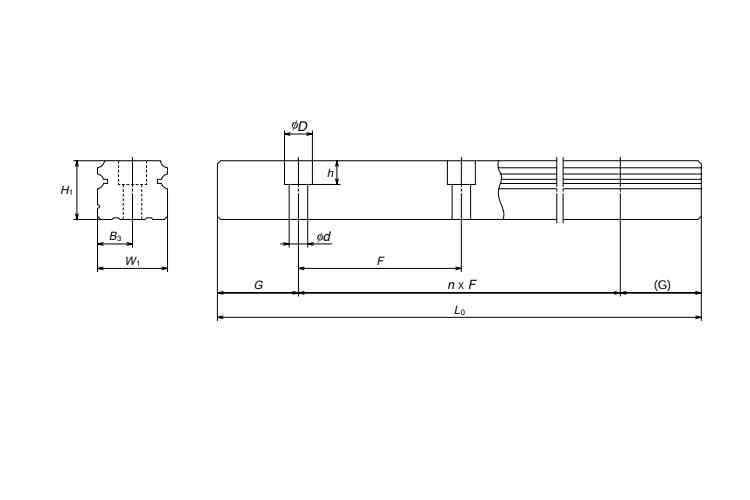

Technical Information

  • Size: 15 mm
  • Width (W1): 15 mm
  • Height (H1): 12.5 mm
  • Pitch (F): 60 mm
  • Mounting Bolt Hole (d x D x h): 3.5 x 6 x 4.5 mm
  • B3: 7.5 mm
  • G: 20 mm
  • T: Counterbore Hole in Rail for M4
  • Maximum Length (L0): 1140 mm

Note: Corresponding Linear Guideway Blocks are available in a wide range of dimensions. Please inquire if you need matching blocks for your rail.

Weight1,6 kg
Condition

Manufacturer

Type of Product

Shelf No.

Model
