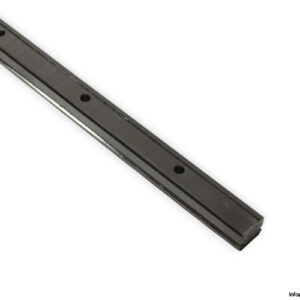

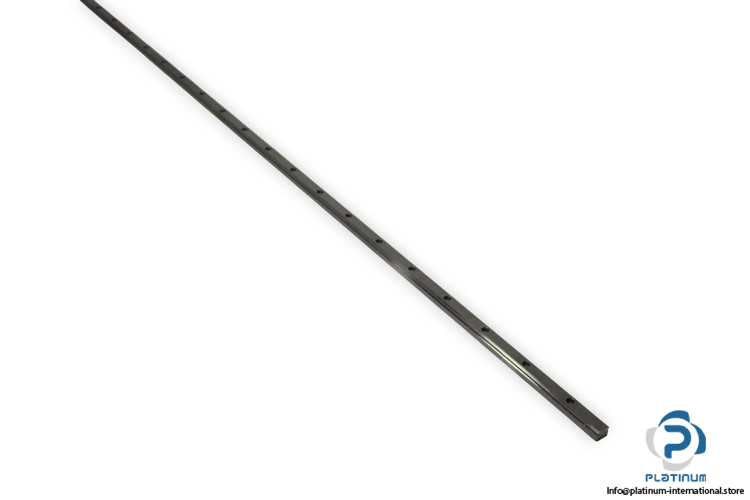

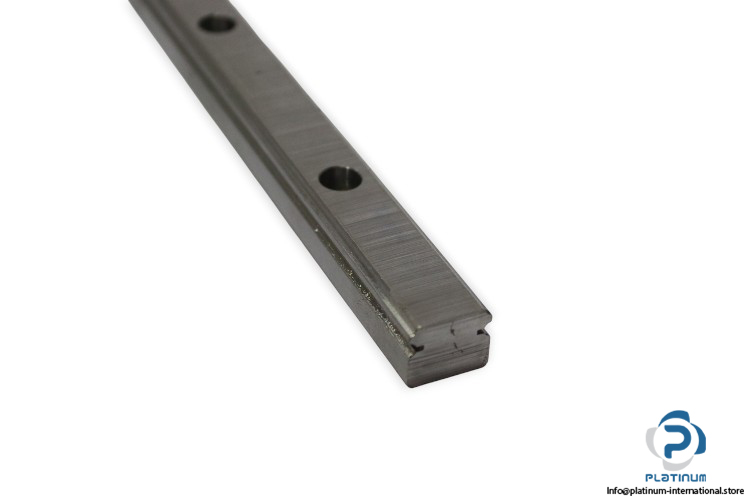

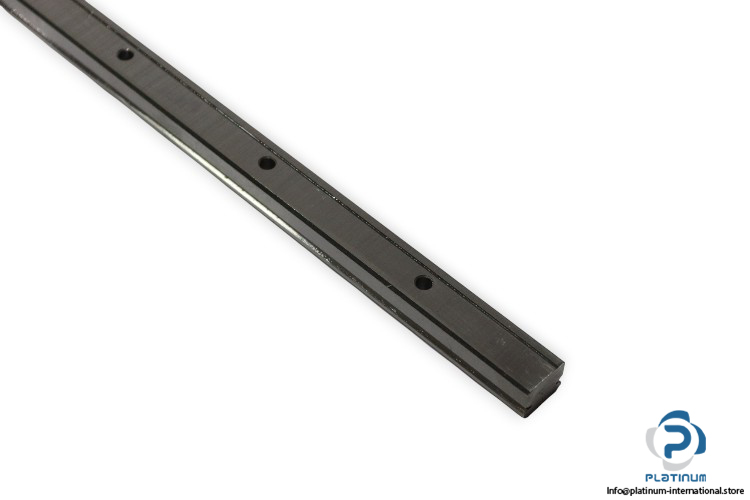

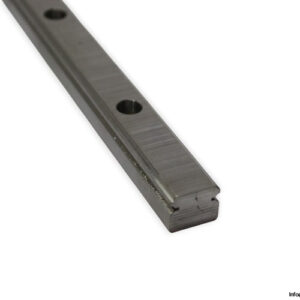

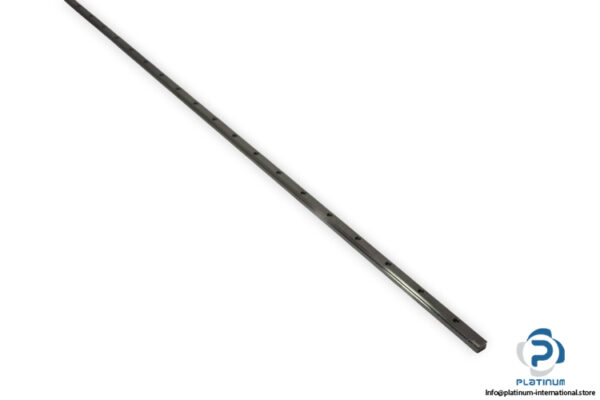

NSK L1S151170T Interchangeable Rail (Fine Clearance)

The NSK L1S151170T is a precision interchangeable rail with fine clearance, designed for smooth linear motion and high positioning accuracy in industrial and automation applications.

Manufacturer: NSK
Type: Interchangeable Rail (Fine Clearance)
Model: L1S151170T
Linear Guide Model: L1S15T

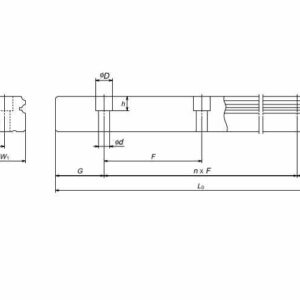

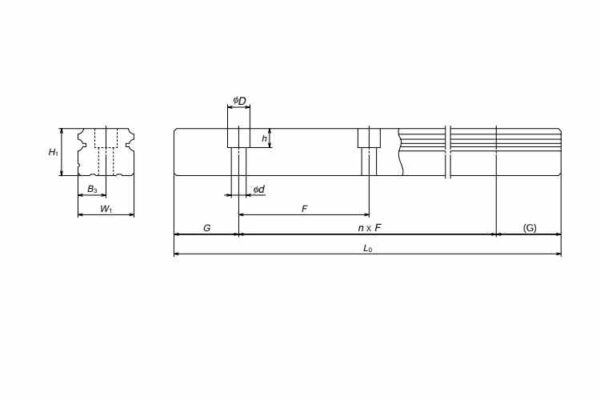

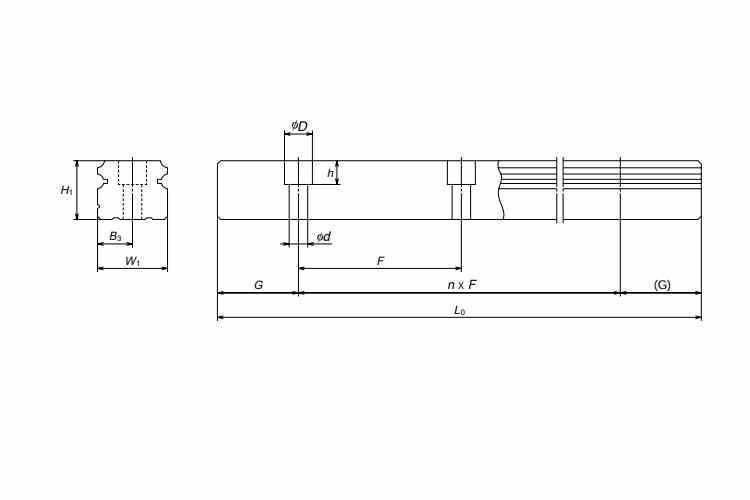

Technical Information

• Size: 15 mm
• Width (W1): 15 mm
• Height (H1): 12.5 mm
• Pitch (F): 60 mm
• Mounting Bolt Hole (d x D x h): 3.5 x 6 x 4.5 mm
• B3: 7.5 mm
• G: 20 mm
• T: Counterbore Hole in Rail for M4
• Length (L0): 1170 mm

Note: We also provide the corresponding Linear Guideway Blocks in a wide range of dimensions. Please contact us if you need Linear Guideway Blocks to match your rails.
