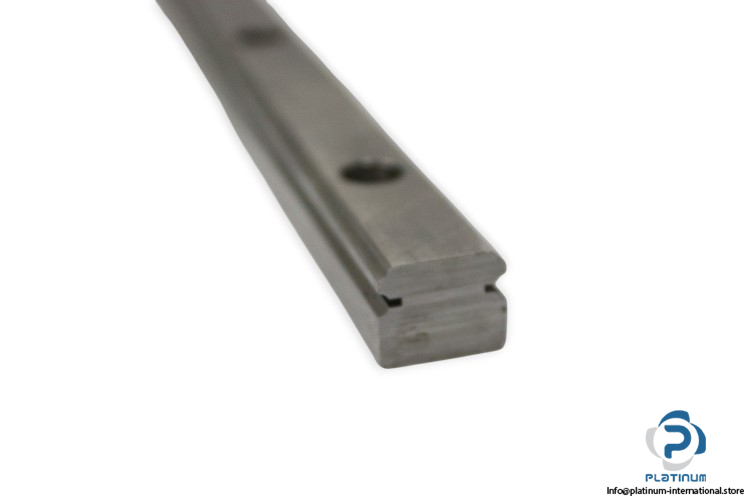

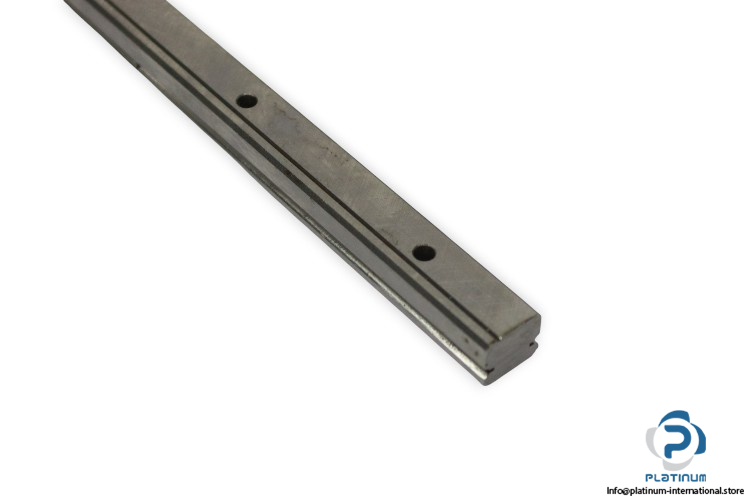

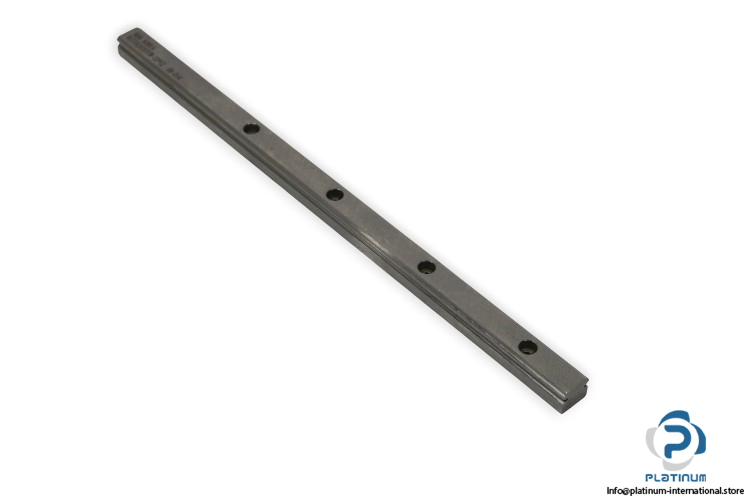

NSK L1S15-235T Interchangeable Rail (Fine Clearance)
The NSK L1S15-235T interchangeable rail offers high precision and smooth linear motion for a variety of automation and mechanical applications.
Manufacturer: NSK
Type: Interchangeable Rail (Fine Clearance)
Model: L1S15-235T
Linear Guide Model: L1S15T

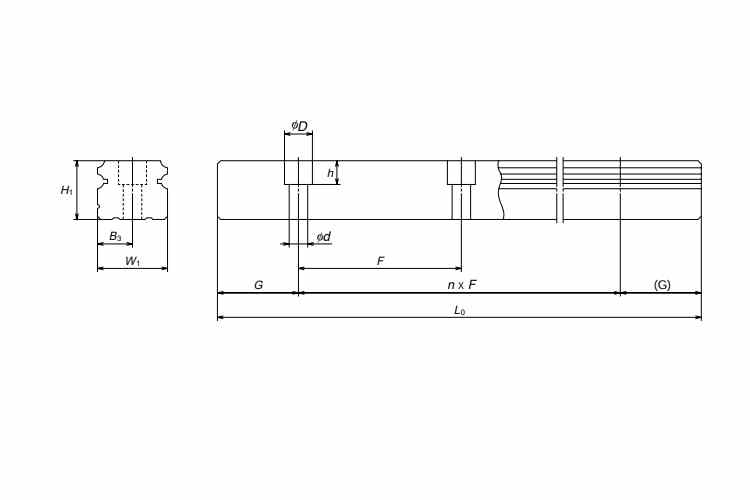

Technical Information
- Size: 15 mm
- Width W1: 15 mm
- Height H1: 12.5 mm
- Pitch F: 60 mm
- Mounting Bolt Hole (d x D x h): 3.5 x 6 x 4.5 mm
- B3: 7.5 mm
- G: 20 mm
- T: Counterbore Hole in Rail for M4
- Length L0: 235 mm
Note: We also provide the corresponding Linear Guideway Blocks in a wide range of dimensions. Please contact us if you need Linear Guideway Blocks to match your rails.
