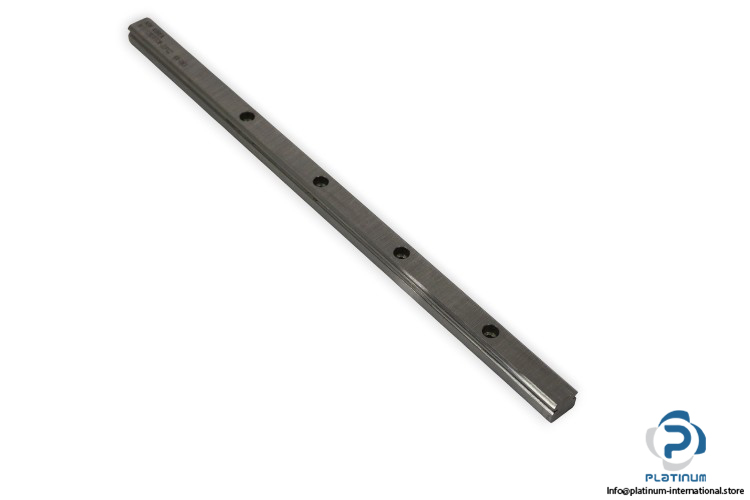

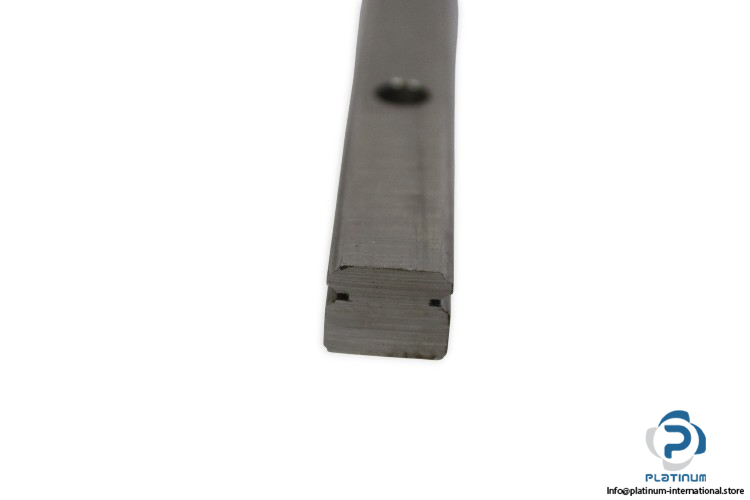

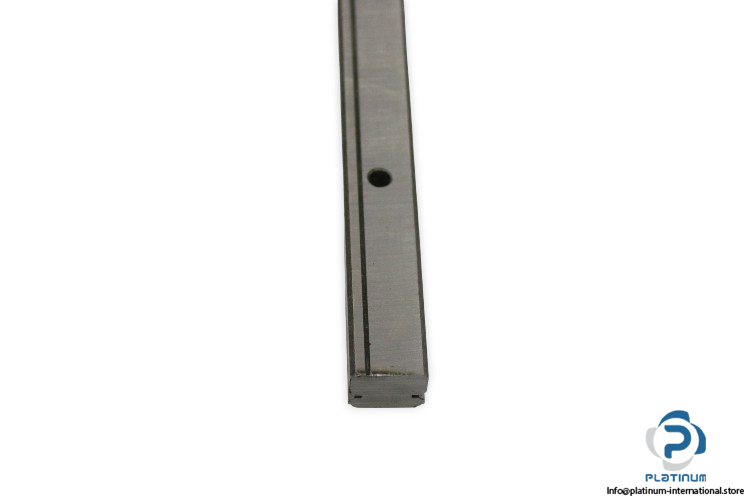

NSK L1S15-275T Interchangeable Rail (Fine Clearance)

The NSK L1S15-275T is a precision interchangeable rail designed for high accuracy and smooth linear motion in automation and mechanical applications. Built with fine clearance for stable performance and compatibility with L1S15T linear guide blocks.

Manufacturer: NSK
Type: Interchangeable Rail (Fine Clearance)
Model: L1S15-275T
Linear Guide Model: L1S15T

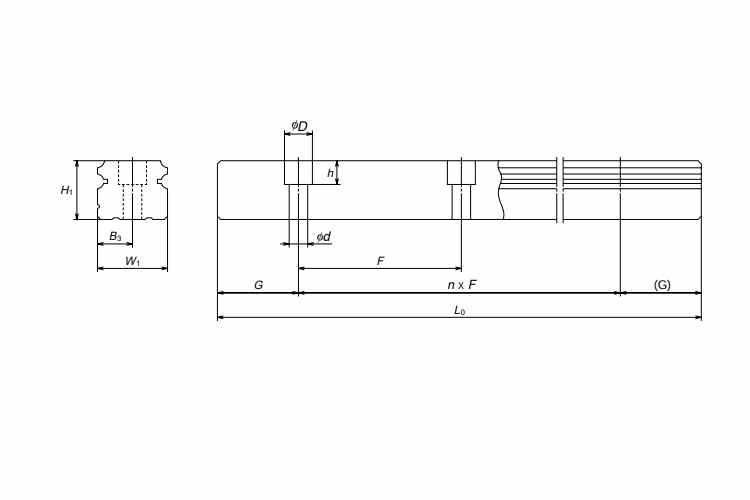

Technical Information

• Size: 15 mm
• Width (W1): 15 mm
• Height (H1): 12.5 mm
• Pitch (F): 60 mm
• Mounting Bolt Hole (d × D × h): 3.5 × 6 × 4.5 mm
• B3: 7.5 mm
• G: 20 mm
• T: Counterbore Hole in Rail for M4
• Length (L0): 275 mm

Note: Matching linear guideway blocks in various dimensions are also available upon request.
