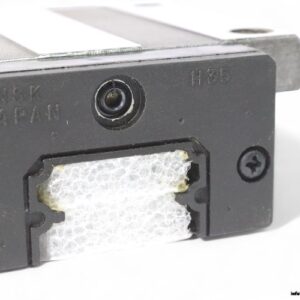

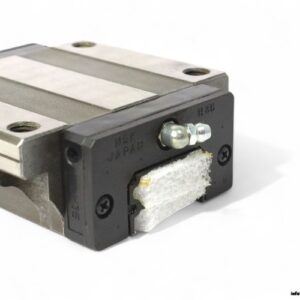

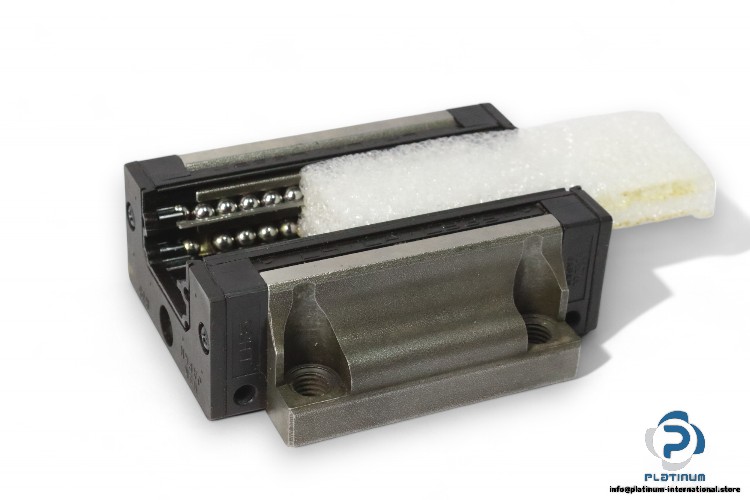

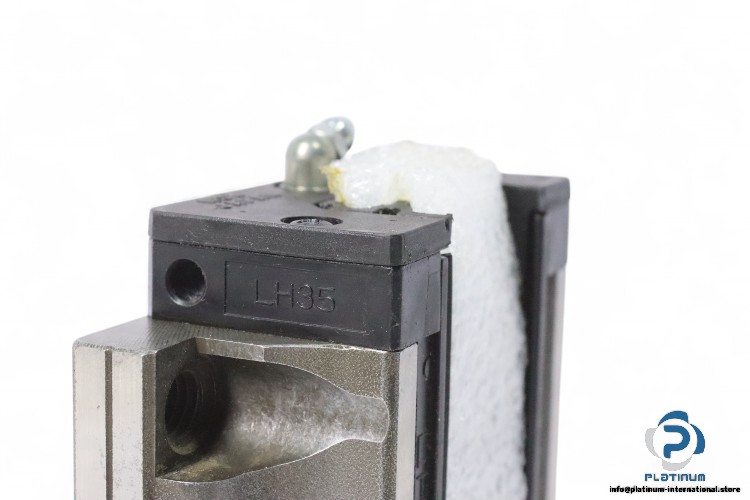

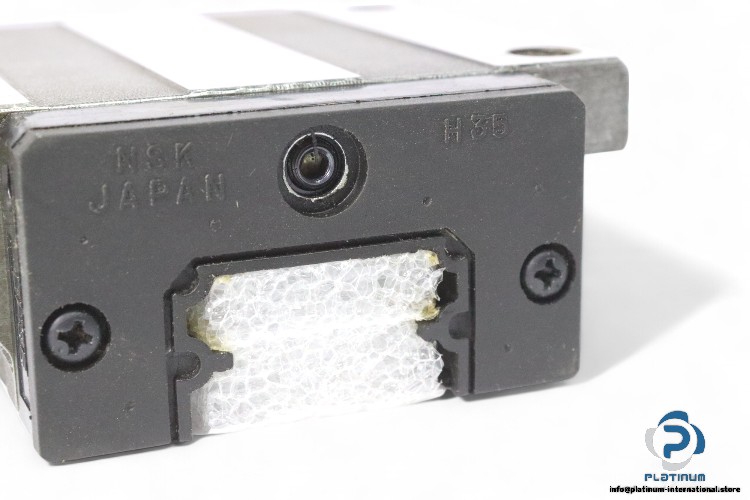

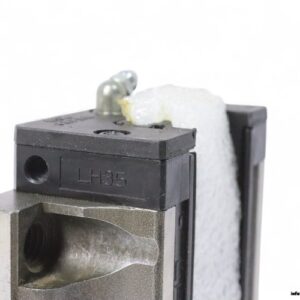

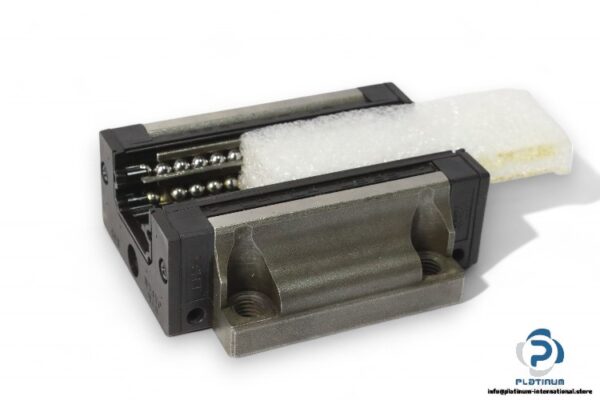

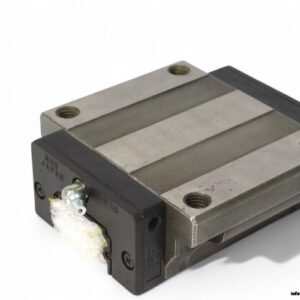

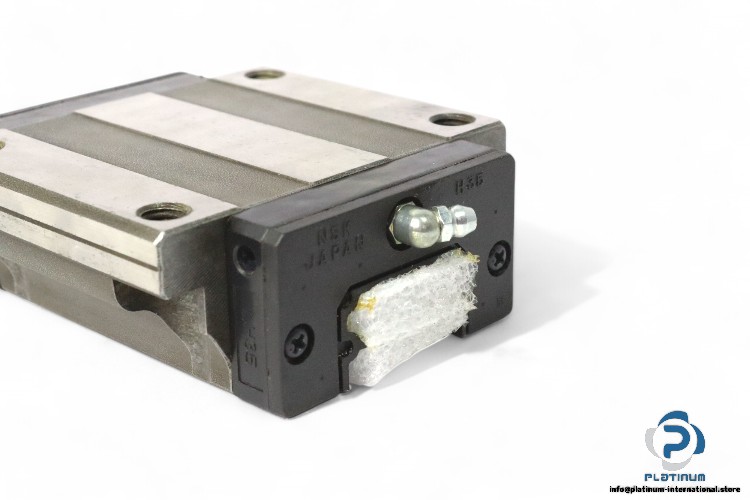

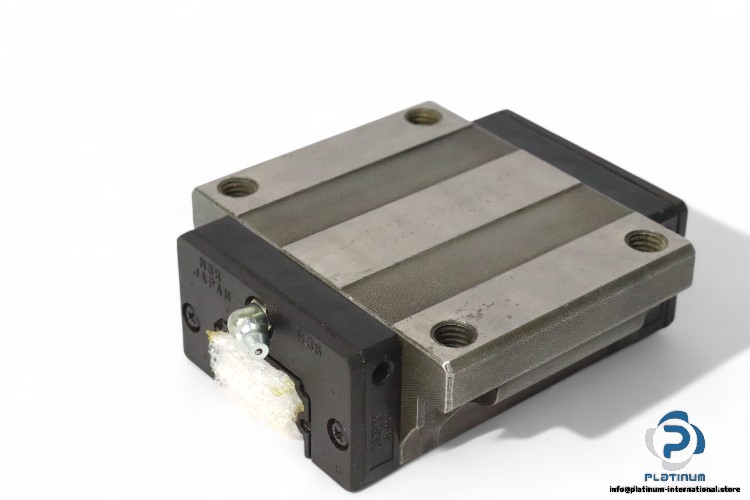

Manufacturer: NSK
Type: LINEAR BEARING BLOCK
Model: LAH35-EL
Size: 35

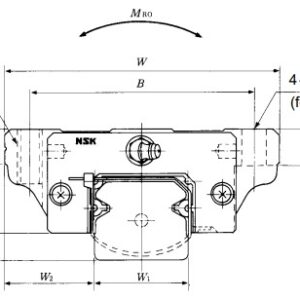

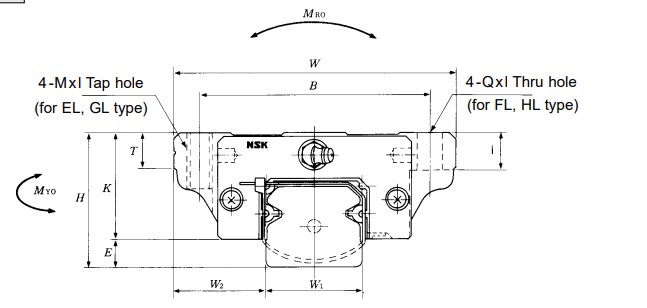

Dimensions
Total Height H: 48 mm
Block Height K: 38.5 mm
Width W: 100 mm
Block Length L: 109 mm
B: 82 mm
J: 62 mm
L1: 80 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes
Hole size: M6 x 0.75
Basic Load Ratings:
Dynamic C: 3960 N
Static C0: 7010 N
