Manufacturer: NSK
Type: Cylindrical Roller Bearing
Model: NU315 W C3

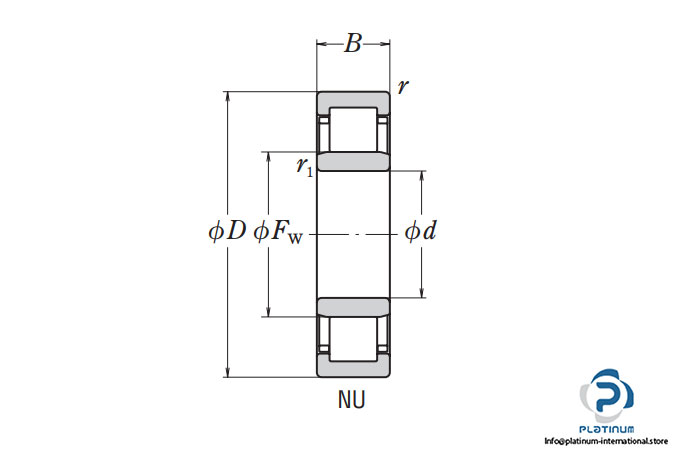

Dimensions:
Bore Diameter d: 75 mm
Outer diameter D: 160 mm
Width B: 37 mm
Basic load ratings, radial:
Dynamic Cr: 179000 N
Static C0r: 189000 N
Clearance: C3
Thermal Reference Speed: 5000 rpm
limiting speed, Grease: 3000 rpm
Cage: W, Pressed-steel Cage
