Manufacturer: NSK
Type: Round flange ball bearing unit, cast housing with spigot joint
Model: UCFC 206
Bearing Number: UC206
Housing Number: FC206

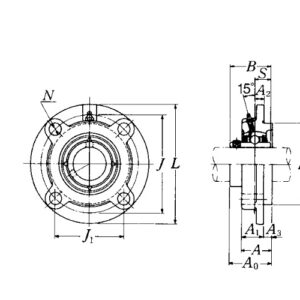

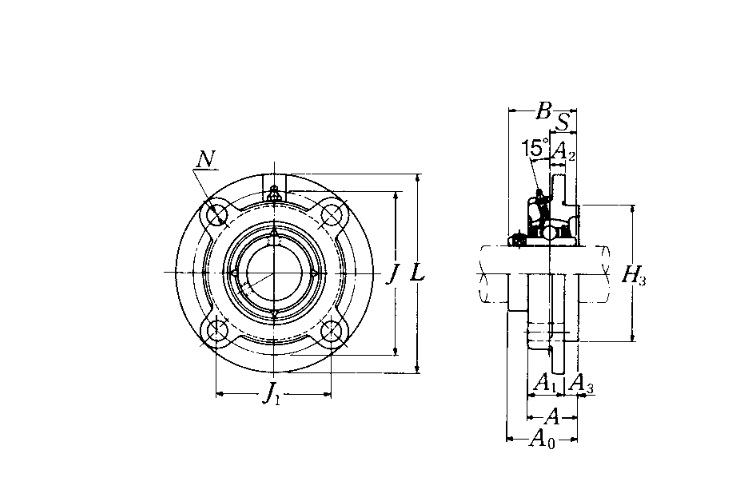

Dimensions
Bore Diameter d: 30 mm
Outside diameter L: 125 mm
Distance between attachment bolts J1: 70.7 mm
Pitch diameter of attachment bolts J: 100 mm
Length of attachment bolt hole N: 12 mm
Width of inner ring B: 38.1 mm
Overall width A0: 40.2 mm
Bolt size: M10
Locking Device: Set Screw
