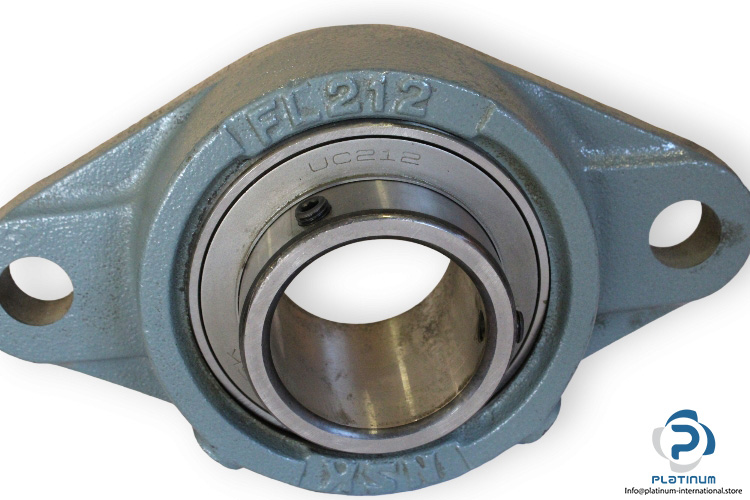

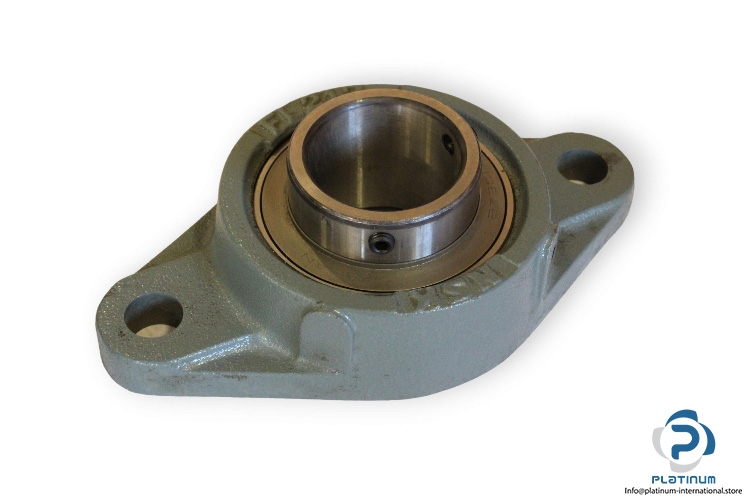

Manufacturer: NSK
Type: Oval flange ball bearing unit
Model: UCFL212
Bearing designation: UC212
Housing: FL212

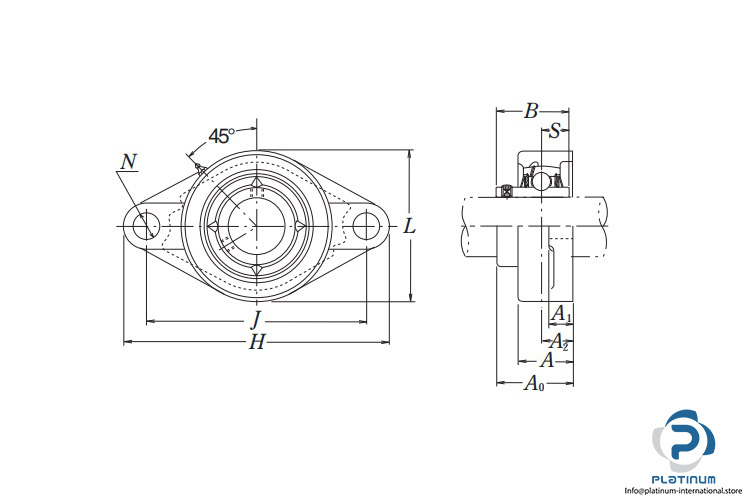

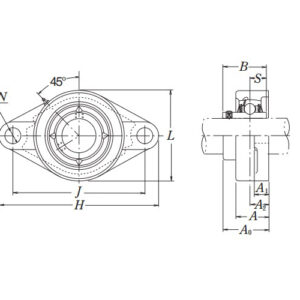

Dimensions
Bore Diameter d: 60 mm
Overall Length L: 140 mm
Width of inner ring B: 65.1 mm
Overall Height H: 250 mm
Distance Between Attachment Bolts J: 202 mm
Overall unit width A0: 68.7 mm
Diameter of attachment bolt hole N: 23 mm
Mounting: Oval Flange
Locking device: Set Screw
Material, housing: Cast iron
Bore type: Round
