Manufacturer: NSK
Type: Pillow Block Ball Bearing Unit
Model: UCP201 N AV2S
Bearing Number: UC201
Housing Number: P203

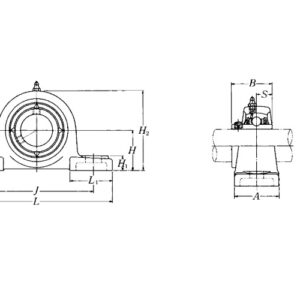

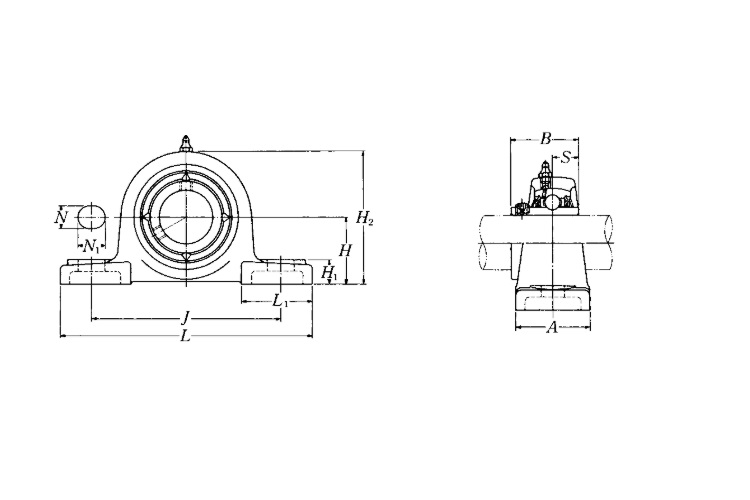

Dimensions
Bore Diameter d: 12 mm
Overall length L: 127 mm
Overall height H2: 62 mm
Width of Inner Ring B: 31 mm
Height of spherical seat center H: 30.2 mm
Distance Between Attachment Bolts J: 95 mm
Diameter of attachment bolt hole N: 13 mm
Length of attachment bolt hole N1: 16 mm
Foot height H1: 14 mm
Locking Device: Set Screw
