Manufacturer: NSK
Type: take up ball bearing unit
Model: UCT202N AV2S
Housing No.: T204
Bearing No.: UC202

Shaft diameter: 15 mm

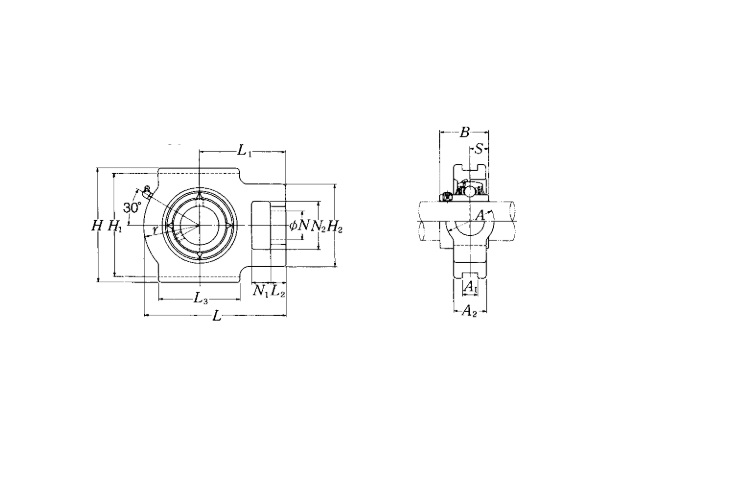

Overall width A: 32 mm
Width of inner ring B: 31 mm
Width of piloting groove A1: 12 mm
Overall height H: 89 mm
Height of attachment end H2: 51 mm
Overall length L: 94 mm
Diameter of attachment bolt hole N: 19 mm
Length of attachment slot N1: 16 mm
Height of attachment slot N2: 32 mm
Length of piloting groove L3: 51 mm
Housing type: Take-up
Material, housing: Cast iron
Locking Device: set screw locking
