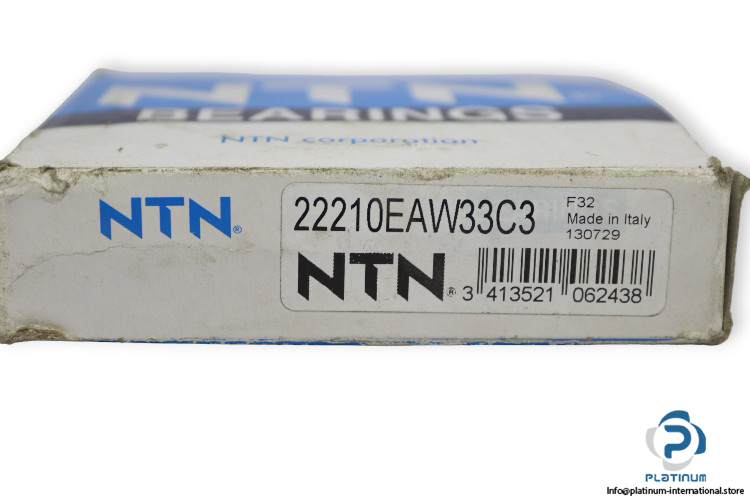

NTN 22210 EAW33C3 Spherical Roller Bearing
The NTN 22210 EAW33C3 is a high-performance spherical roller bearing engineered for heavy-duty industrial applications. With high load ratings, C3 clearance, and a W33 outer ring design for improved lubrication, it ensures durability, efficiency, and extended service life under demanding conditions.
Manufacturer: NTN
Type: Spherical Roller Bearing
Model: 22210 EAW33C3
Technical information
- Bore Diameter (d): 50 mm
- Outer Diameter (D): 90 mm
- Width: 23 mm
- Basic Dynamic Load Rating: 130000 N
- Basic Static Load Rating: 124000 N
- Fatigue Limit Load: 15100 N
- Ring Design: W33, lubrication groove and holes in the outer ring
- Cage Material: Pressed steel cage
- Radial Internal Clearance: C3
