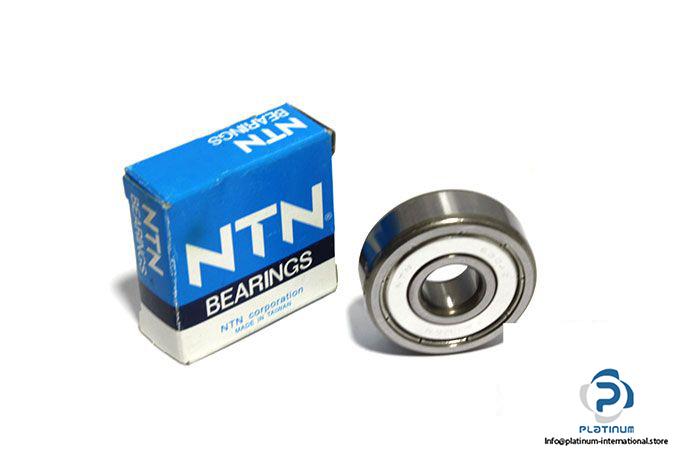

Manufacturer: NTN
Type: Deep groove ball bearing

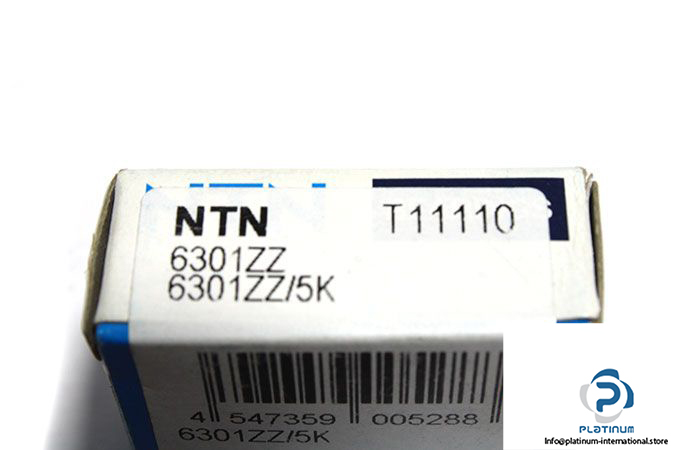

Model: 6301 ZZ/5K
Dimensions:
Bore Diameter d: 12 mm
Outer diameter D: 37 mm
Width B: 12 mm
Minimum chamfer rmin: 1 mm
Basic load ratings:
Dynamic Cr: 9.7 kN
Static C0r: 4.2 kN
Limiting speed (grease): 20000 rpm

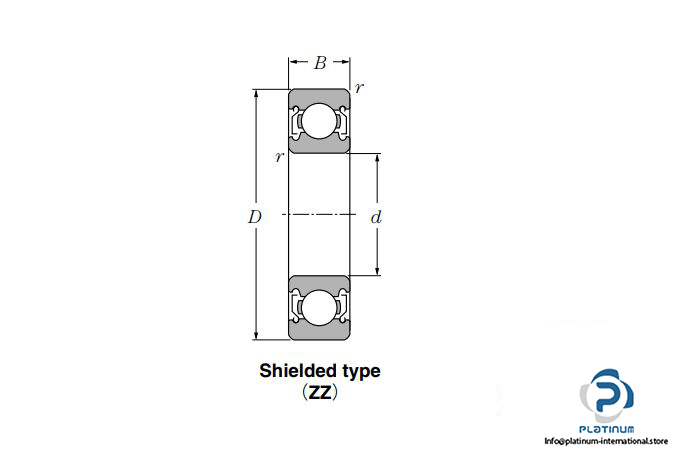

Seal: Shielded type
Weight: 0.06 kg
