Manufacturer: NTN
Type: Thrust Needle Roller

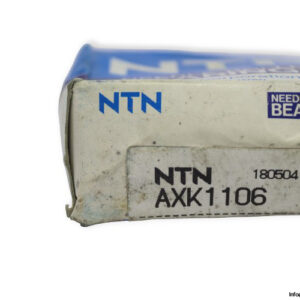

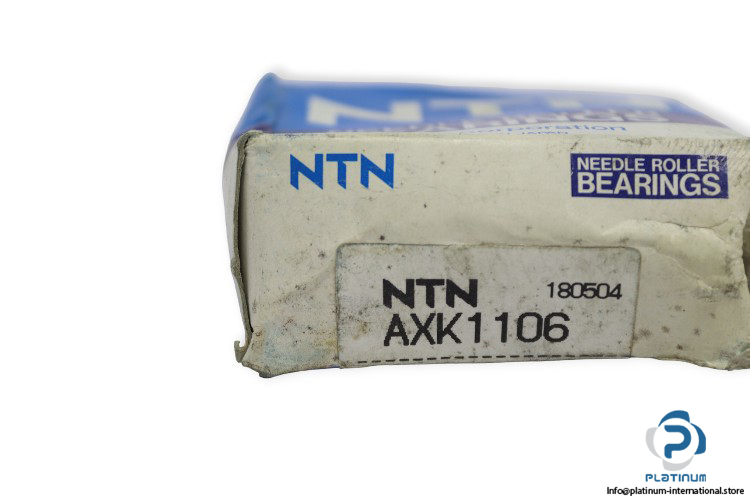

Model: AXK1106

Bearing ring (washer) AS:   AS1106
Bearing ring (inner ring) WS: WS81106
Bearing ring (outer ring) GS: GS81106
Dimensions
Roller cage bore diameter Dc1: 30 mm
Roller cage outer diameter Dc: 47 mm
Roller cage outer diameter Dw: 2 mm
Rollers reference outer diameter Ea: 44.4 mm
Rollers reference inner diameter Eb: 34.5 mm
Dynamic axial load rating: 16,3 kN
Static axial load rating: 69,5 kN
Limit axial load rating : 8,5 kN
Grease lubrication limit speed: 1500 tr/min
Oil lubrication limit speed: 6000 tr/min
operating temperature: -20 °C…120°C
Item per set: 5
