Manufacturer: NTN
Type: Stud type track roller, with cage, with seal
Model: KR 40 XLLH 3AS

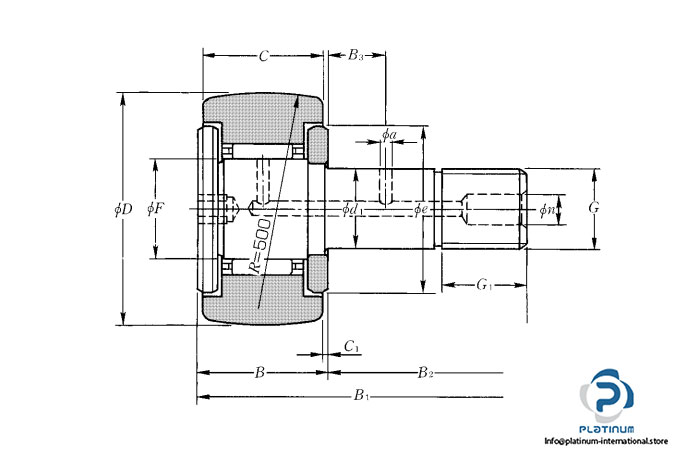

Dimensions
Outside diameter D: 40 mm
Diameter of roller stud d1: 18 mm
Width B1: 58 mm
Width outer ring C: 20 mm
Design: X, Cylindrical outer rings
Thread G: M18 X 1.5
Basic load ratings, radial:
Dynamic Cr: 14000 N
Static C0r: 22800 N
Limiting speed grease lubrication: 7000 rpm
Sealing: LL, seal on both sides
