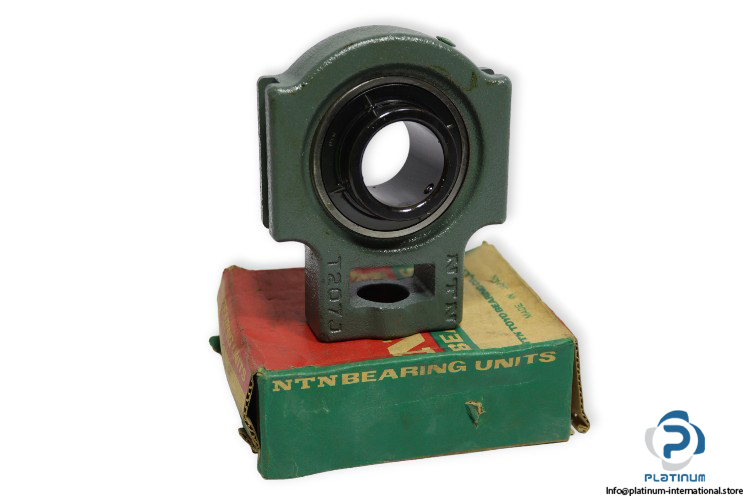

Manufacturer: NTN
Type: Take up ball bearing unit

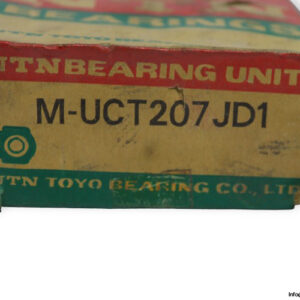

Model: M UCT207 JD1

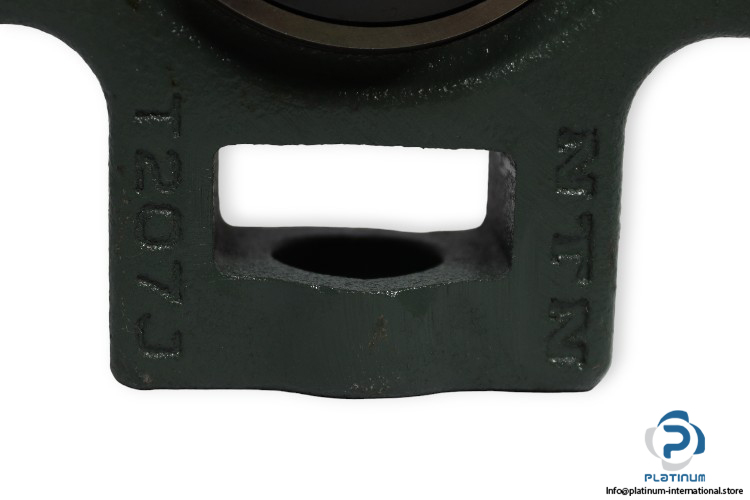

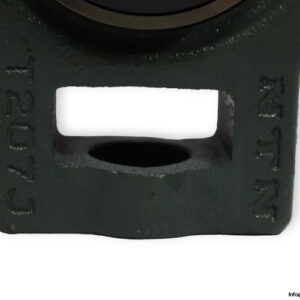

Housing No.: T207J

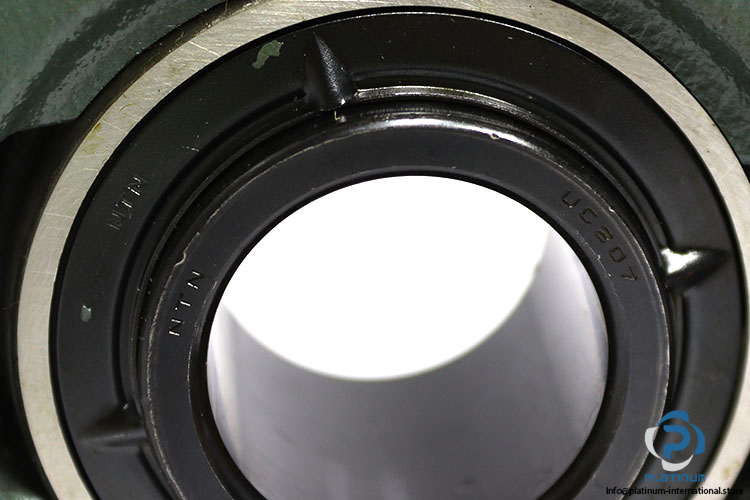

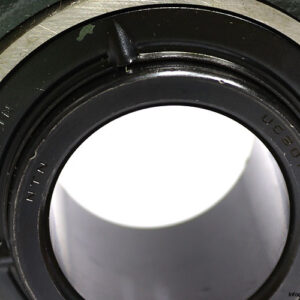

Bearing No.: UC207

Shaft diameter: 35 mm

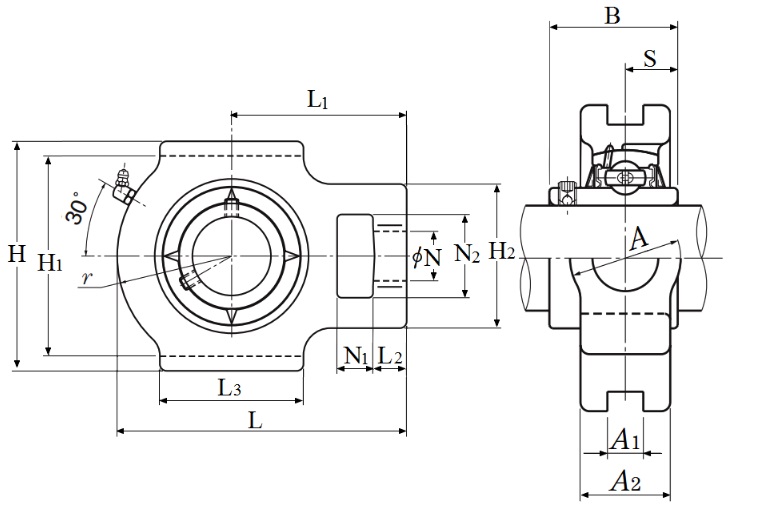

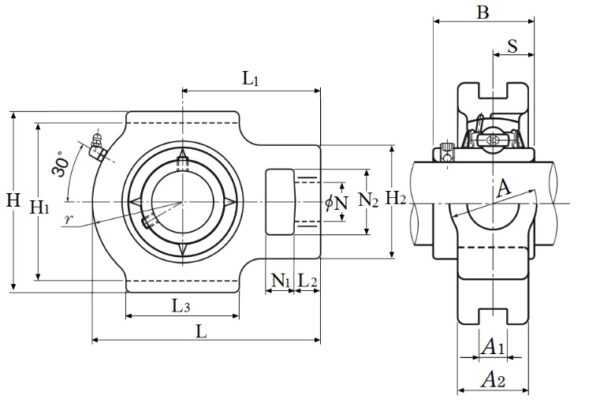

Overall width A: 37 mm
Width of inner ring B: 42.9 mm
Width of piloting groove A1: 12 mm
Overall height H: 102 mm
Height of attachment end H2: 64 mm
Overall length L: 129 mm
Diameter of attachment bolt hole N: 22 mm
Length of attachment slot N1: 16 mm
Height of attachment slot N2: 37 mm
Length of piloting groove L3: 64 mm
Housing type: Take-up
Material, housing: Cast iron
Locking Device: set screw locking
