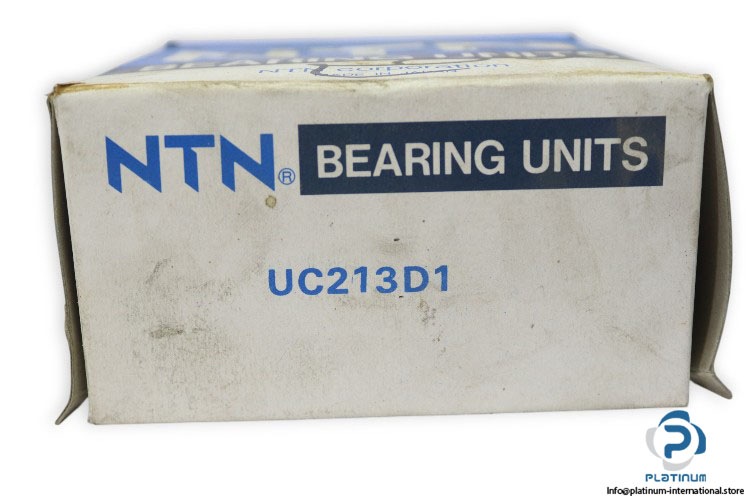

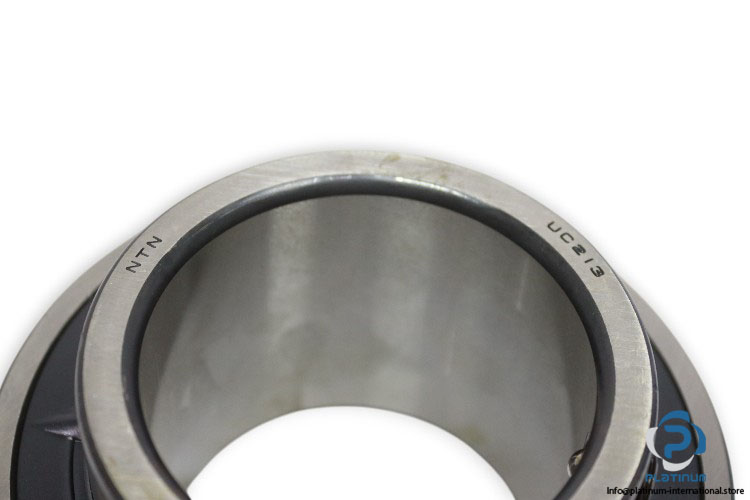

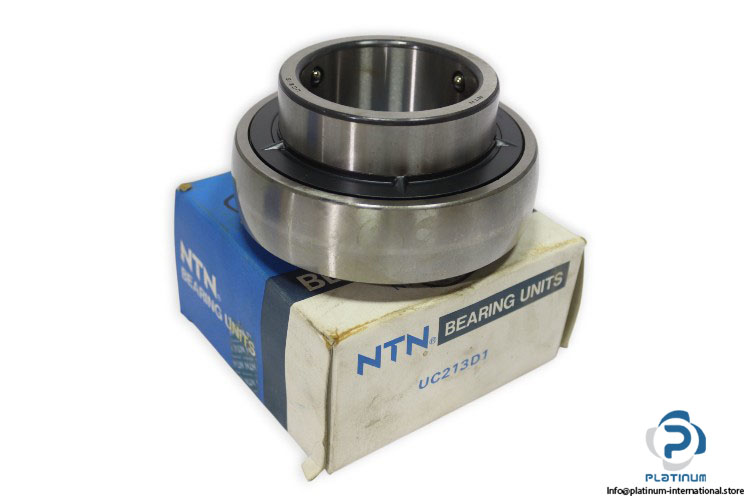

NTN UC213D1 Insert Bearing

The NTN UC213D1 is a precision-engineered insert bearing designed for high load capacity and reliable performance in demanding industrial applications. It features a 65 mm bore and durable contact seal made of nitrile rubber, providing excellent protection against contamination and ensuring smooth operation across a wide temperature range. Ideal for use in heavy-duty machinery, conveyor systems, and general industrial equipment.

• Manufacturer: NTN
• Type: Insert Bearing
• Model: UC213D1

Technical Information

• Bore Diameter (d): 65 mm
• Outer Diameter (D): 120 mm
• Width (B): 65.1 mm
• Basic Dynamic Load Rating (Cr): 57.500 kN
• Basic Static Load Rating (C0r): 40 kN
• Ball Material: Through Hardened
• Limiting Speed (Grease): 2400 rpm
• Seal Type: Contact
• Seal Material: Nitrile Rubber
• Operating Temperature Range: -40 to 120°C
