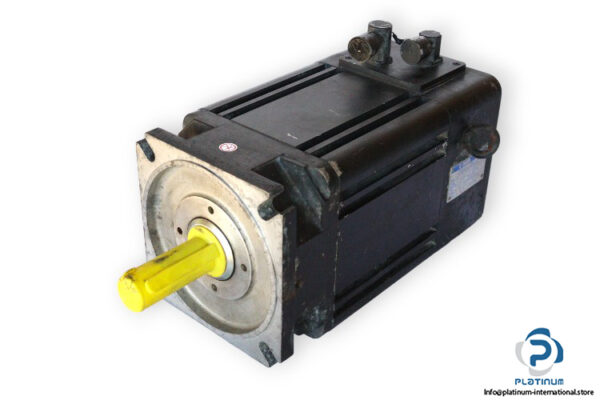

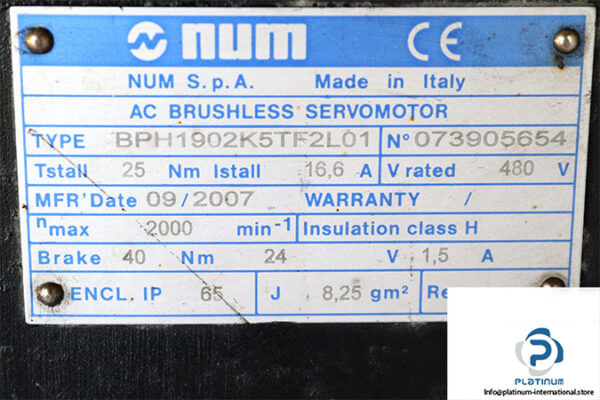

Manufacturer: NUM
Type: AC SERVO MOTOR
Model: BPH1902K5TF2L01
N⁰: 073905654

Series: BPH
Size: 190
Stall Torque: 25 Nm
Stall Current: 16.6 A
Maximum Speed: 2000 min^-1
Rated Voltage: 480 V
Thermal Class: H
Power connection: connector
Protection Class [IP]: 65
Brake Voltage: 24 V
brake torque: 40 Nm
brake current: 1.5 A
Inertia: 8.25 gm²
Feedback: Resolver
