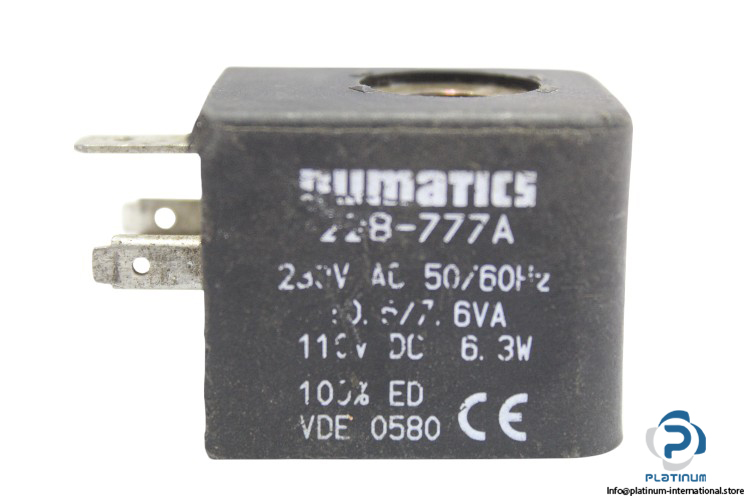

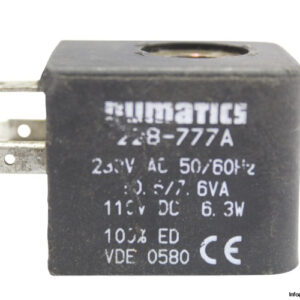

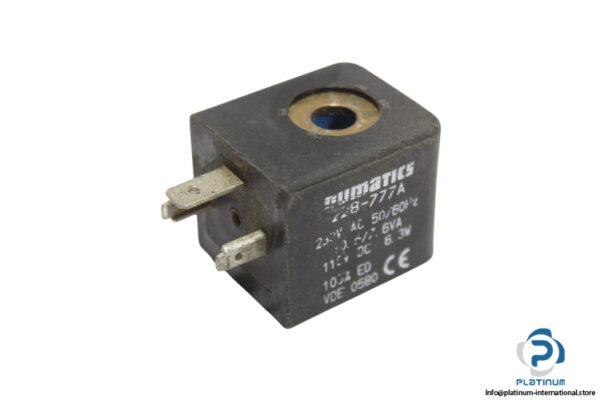

Numatics 22B777A Electrical Coil

The Numatics 22B777A is a high-quality electrical coil designed for continuous-duty industrial use. Built to VDE 0580 standards, it offers reliable performance across both AC and DC voltages, with a 3-pin electrical connection for secure and simple integration into automation systems.

Manufacturer: Numatics

Type: Electrical Coil

Model: 22B777A

Technical Information:

• Supply Voltage: 230 V AC, 110 V DC
• Frequency: 50/60 Hz
• Power: 10.5/7.6 VA (AC), 6.3 W (DC)
• Inner Diameter: 8 mm “ 9 mm
• Length: 29 mm
• Operation: 100% ED (Continuous Duty)
• Standard: VDE 0580
• Electrical Connection: 3-Pin
