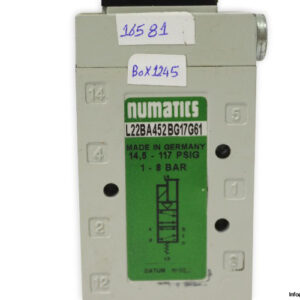

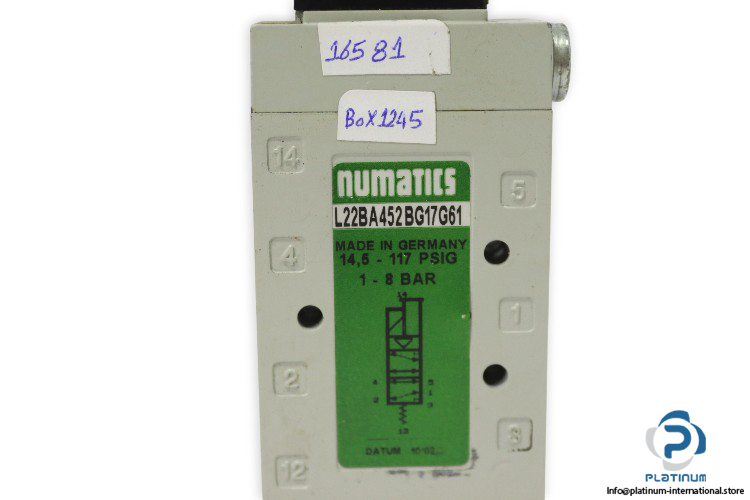

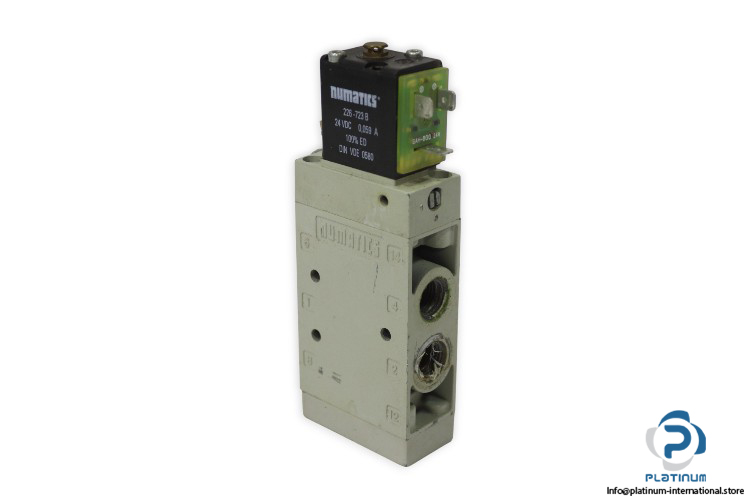

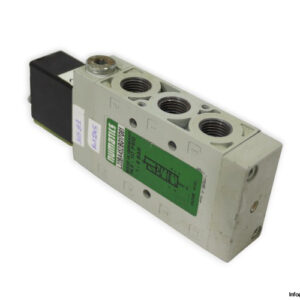

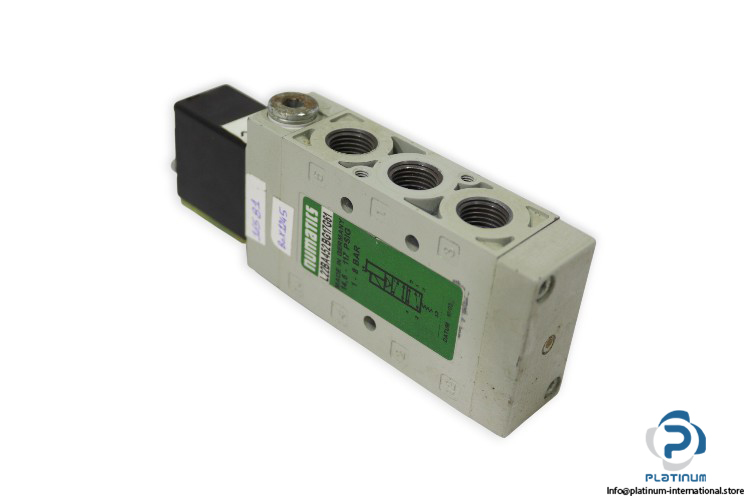

NUMATICS L22BA452BG17G61 Single Solenoid Valve

The NUMATICS L22BA452BG17G61 Single Solenoid Valve is a high-performance pneumatic valve built for precise and reliable control in industrial automation systems. Designed with electrical actuation and a durable aluminum body, it ensures stable operation with excellent flow characteristics. The valve is equipped with an ASCO Numatics 226-723B solenoid coil for efficient switching and long service life.

Manufacturer: NUMATICS
Type: Single Solenoid Valve
Model: L22BA452BG17G61
Series: L2

Technical Information

• Type of Actuation: Electrically
• Operating Pressure: 1 to 8 bar
• Fluid: Air
• Flow Rate: 1674 Nl per minute
• Pneumatic Connection: ISO 228/1, G1/4
• Function: 5 by 2 way valve
• Ambient Temperature Solenoid Pilot: minus 23 to plus 46 degree Celsius
• Attachment: NUMATICS 226-723B Solenoid Coil

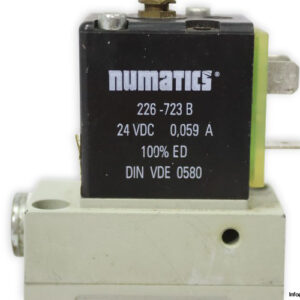

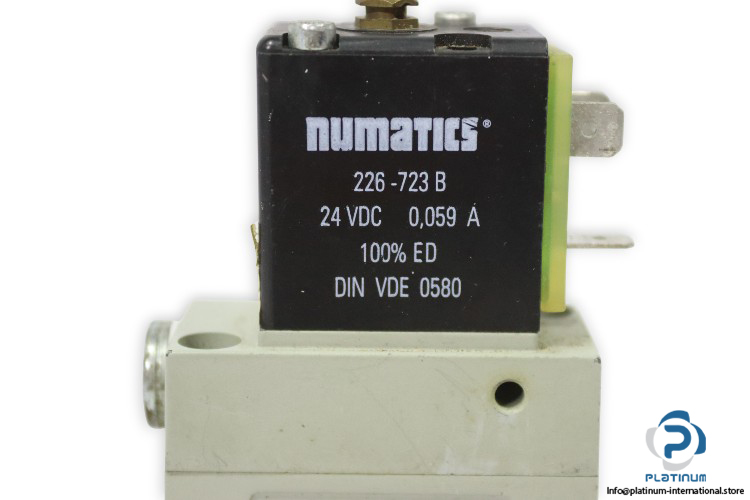

Solenoid Coil Details
Manufacturer: ASCO Numatics
Type: Solenoid Coil
Model: 226-723B

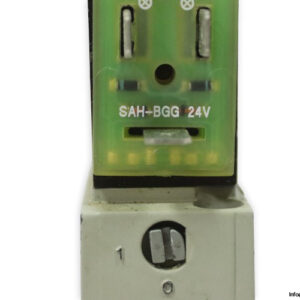

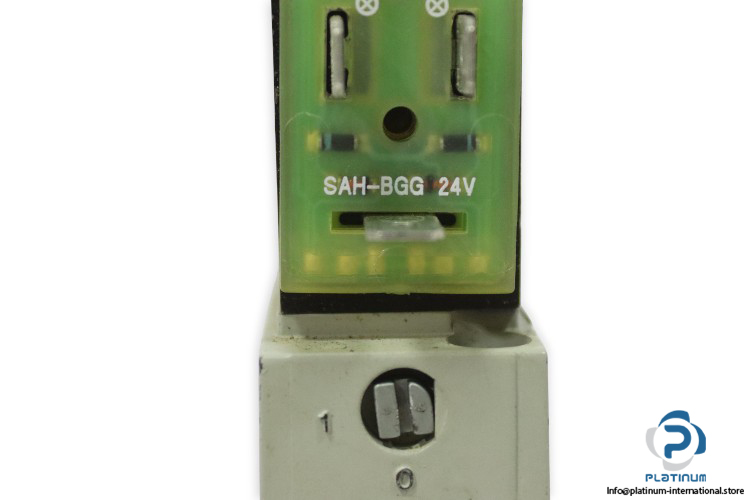

Code: SAH BGG 24V

• Voltage: 24 VDC
• Current: 0.05 A
• Standard: DIN VDE 0580
