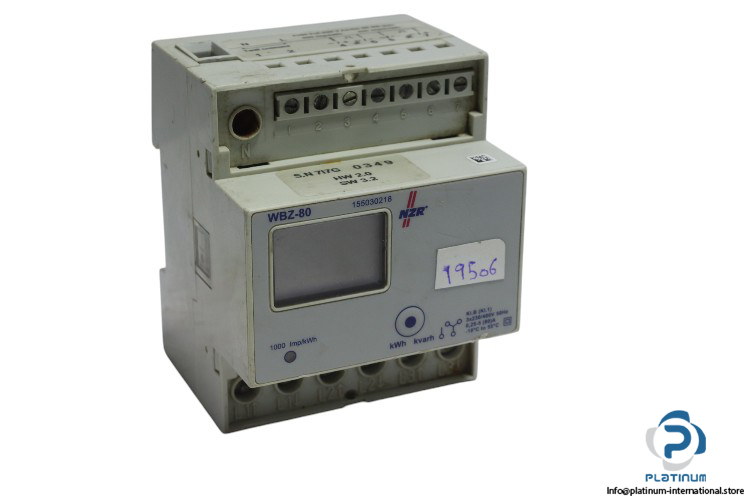

NZR WBZ-80 Three-Phase Meter
The NZR WBZ-80 Three-Phase Meter is a direct measuring energy meter designed for precision monitoring in industrial and commercial electrical systems. With a 4-wire measuring system, high accuracy, and DIN rail compatibility, this meter ensures reliable performance in energy management applications.
- Manufacturer: NZR
- Type: Three-Phase Meter
- Model: WBZ-80
Technical Information
- Measuring Principle: Direct Measuring
- Measuring System: 4-Wire
- Measuring Voltage: 3 x 230/400 V
- Measuring Current (I): 0.25 – 5 (80) A
- Form Factor: 4 TE DIN Rail
- Self-Consumption (per phase): 0.5 VA

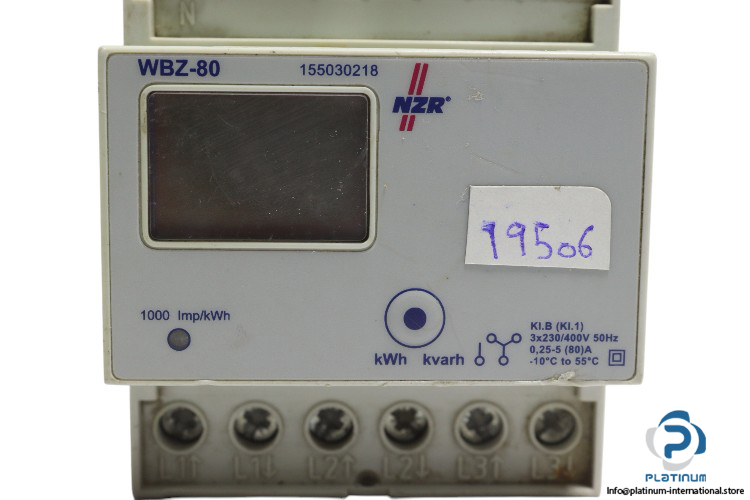

- LED Impulse Value: 1,000 Imp./kWh
- Connection Cross-Sections:
- Current/Neutral Conductors Max.: 33 mm²

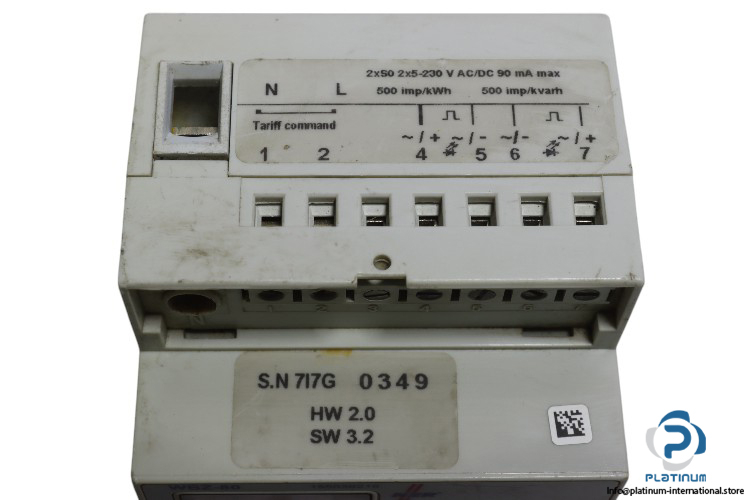

- Auxiliary Terminals Max.: 2.5 mm²
- Temperature Range (Operation): -25 to 55°C
- Protection Class: IP40
- Dimensions (W x H x D): 71.5 x 90 x 71 mm
