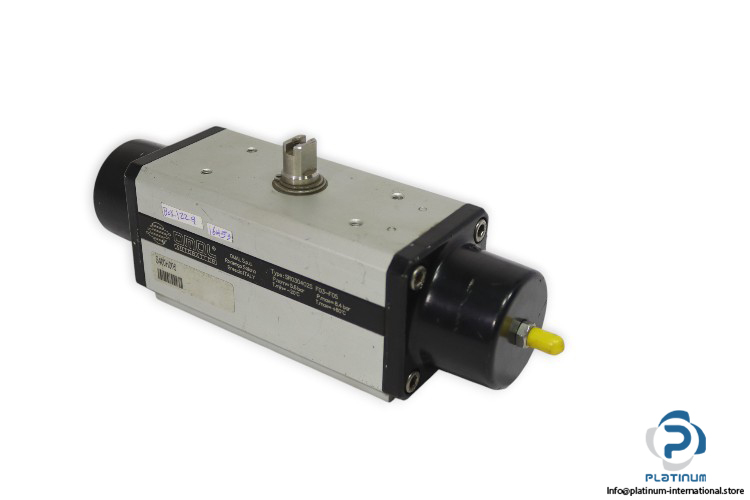

OMAL SR030402S F03-F05 Pneumatic Actuator
The OMAL SR030402S F03-F05 Pneumatic Actuator is a high-quality spring return actuator engineered for reliable valve automation. It delivers consistent torque and smooth operation, suitable for industrial pneumatic control systems.
Manufacturer: OMAL
Type: Pneumatic Actuator

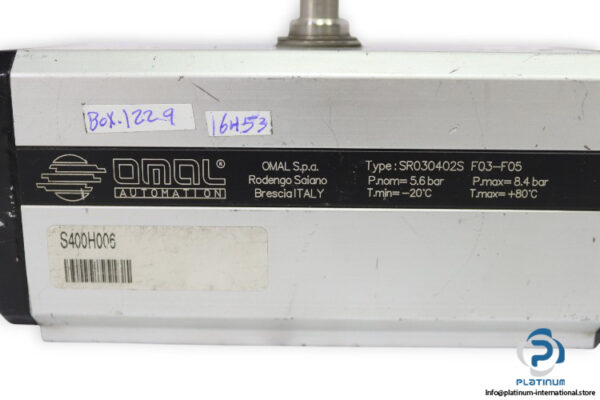

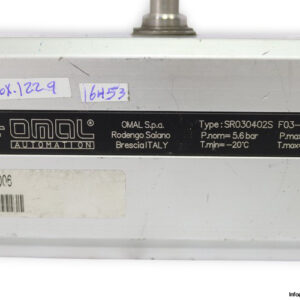

Model: SR030402S F03-F05
Ref No.: S400H006
Series: SR
Size: SR 30
Technical Information
- Operating Media: Compressed filtered air, not necessarily lubricated
- Actuation Type: Spring Return
- Torque: From 15 Nm to 1920 Nm
- Mounting Flange: According to DIN/ISO 5211 DIN 3337 F03-F05
- Pressure Rating: Max 8.4 bar
- Nominal Pressure: 5.6 bar
- Temperature Range: -20 to 80°C
- Body Material: Aluminum housing
- Thread Gas: G1/8
- Rotation Angle: 90°
- Dimension (Length x Depth x Piston Dia): 240 x 90.4 x 50 mm
