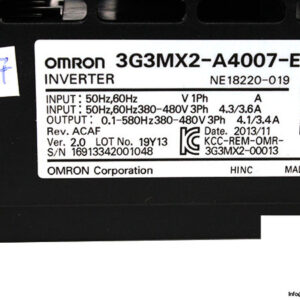

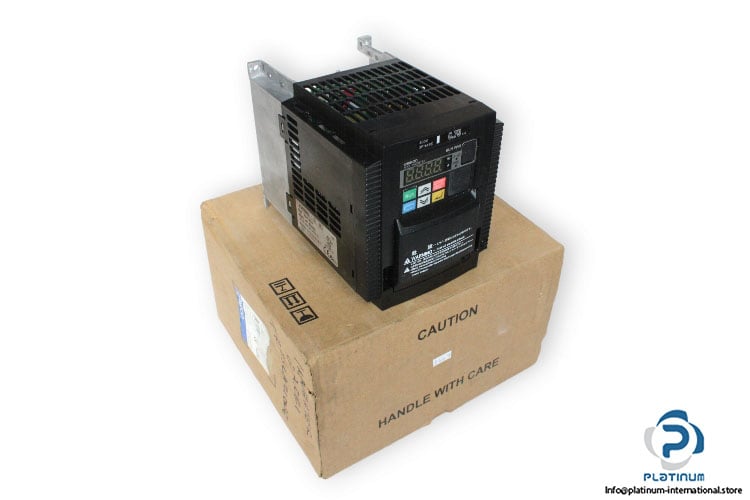

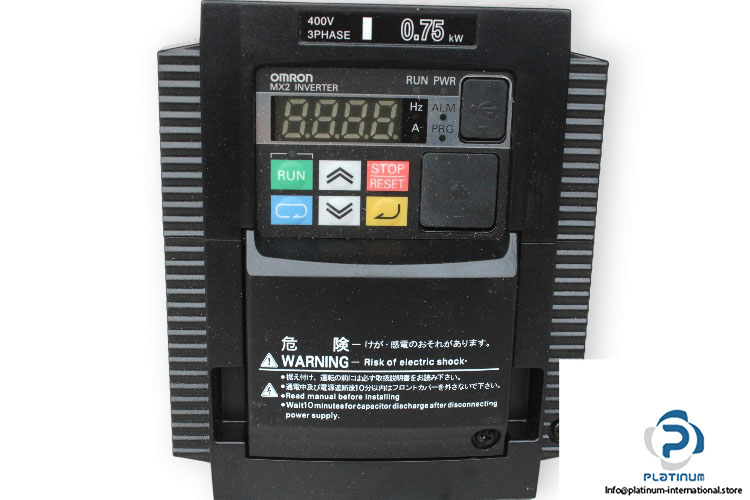

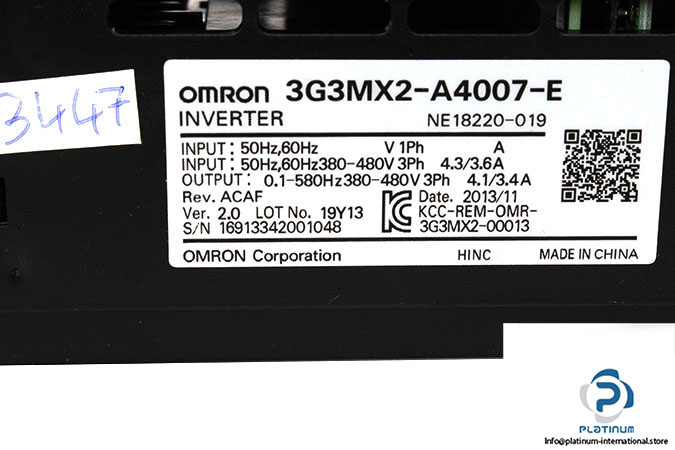

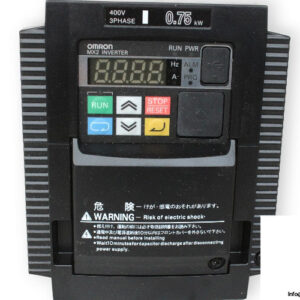

Omron 3G3MX2-A4007-E Frequency Inverter
The Omron 3G3MX2A4007E Frequency Inverter is an advanced motor control device designed for precision speed regulation and smooth performance in industrial automation. With high efficiency and a compact design, it provides optimal motor control for both constant and variable torque applications.
Manufacturer: Omron
Type: Frequency Inverter
Model: 3G3MX2-A4007-E
Technical Information
- Input:
- Voltage: 3 Phase / 380 / 480 V AC
- Frequency: 50 / 60 Hz
- Rated Current: 4.3 / 3.6 A
- Output:
- Voltage: 3 Phase / 380 / 480 V AC
- Frequency: 0.1 / 1000 Hz
- Rated Current: 4.1 / 3.4 A
- Max. Motor Output at Constant Torque: 0.75 kW
- Max. Motor Output at Variable Torque: 1.5 kW
- Ambient Temperature: -10 / 50 °C
- Protection Class: IP20
- Dimensions: 108 x 128 x 170.5 mm
