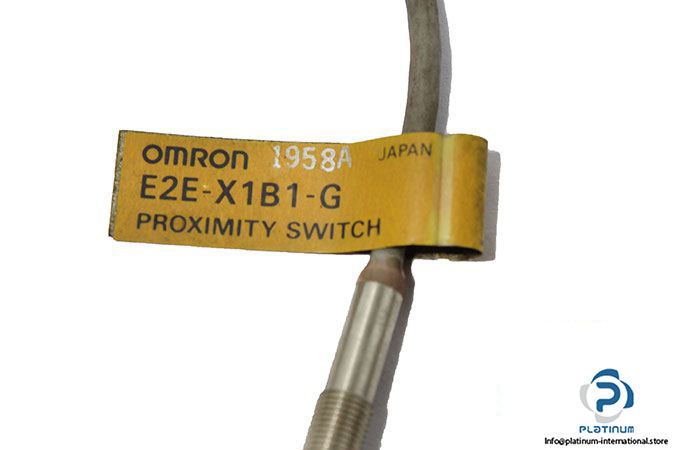

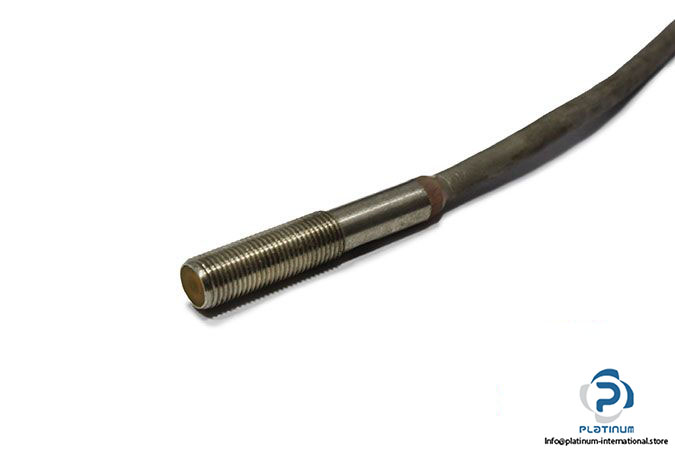

Manufacturer: OMRON

Type: Miniature Cylindrical Proximity Sensor

Model: E2E-X1B1-G

Sensing Distance: 1 mm

Power Supply Voltage: 12 … 24 VDC

Current Consumption: 17 mA max.

Operation Mode: NO

Response speed: 3 kHz

Protection Circuits: Power supply reverse polarity protection, surge suppressor

Housing Material: Brass

Indicator: Operation indicator (red LED)

Connection: pre-wired

Output: PNP

Ambient Temperature: –25 … 70°C

Degree of Protection: IP67

Diameter, Length: 5 mm, 24.5 mm

Weight: 0.035 Kg
